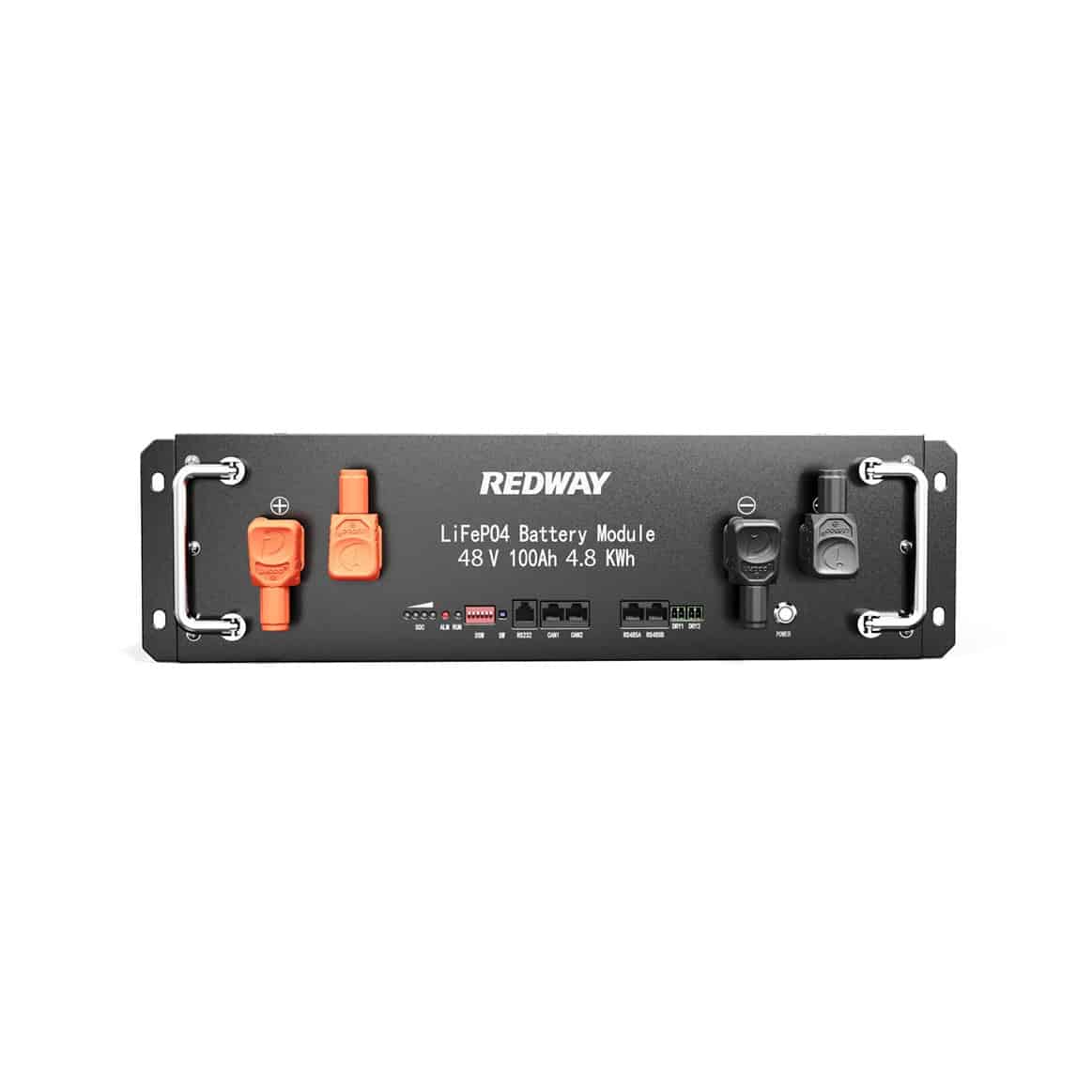

PR-LV48100-3U-PRO lithium iron phosphate battery, which is one of the Top 5 Best Selling LiFePO4 Batteries 2023 from Redway, provides dependable and effective power for both off-grid and hybrid systems. Only the top 5 manufacturers of battery cells in China produce A-Grade cells, which are guaranteed to have excellent quality and endurance.
It has a nominal voltage of 48V, a nominal capacity of 100Ah, and a nominal energy of 4.8kWh. Its dimensions are 17.32*16.53*5.28in, or 440*420*134mm, and its operating voltage range is 37.5–54.75V. A 40kg weight makes the battery easy to transport and install. With its maximum discharge current of 1C/100A and maximum charge current of 1C/100A, fast charging and fast discharging are possible. A battery can be charged from 055°C to -2060°C, and it can be discharged from -2060°C to 055°C. A series/parallel number of 15S1P is assigned to the battery, which uses the CAN/RS485 communication protocol.
This battery will last 20 years at 25°C and 40% DOD and is capable of delivering over 4000 cycles at 25°C and 80% DOD. It comes with a smart BMS that guarantees monitoring and protection from overcharging, overdischarging, overcurrent, overtemperature, and short circuits.
In addition to its small size, the PR-LV48100-3U-PRO can be installed in a stack or cabinet, and is compatible with a wide range of inverters, including Victron, SMA, Goodwe, SRNE, Solis, SAJ, Growatt, Luxpower, Voltronic, Deye, and others. Aside from an LCD panel and a circuit breaker, some batteries may offer other features.
The battery is black and has an IP21 rating, which protects it from foreign objects like fingers and non-hazardous particles. In conclusion, individuals who want dependable and effective power for off-grid and hybrid installations should strongly consider the PR-LV48100-3U-PRO since it has a guarantee document, is approved, and conforms to CE/UN38.3 safety standards. Due to its robustness, safety features, and compatibility with many inverters, it is a desirable alternative for many applications.
Key characteristics and benefits:
Modern, uniform design
The PR-LV48100-3U-PRO Lithium Battery Module is easy to install in a variety of places thanks to its standardized design. Its compact size and design allow for flexible and room-saving installation.
The modular design of the PR-LV48100-3U-PRO allows for simple expansion, enabling customers to scale up their energy storage systems as their demands change. As a consequence, it makes a practical and affordable choice for a range of applications.
High Reliability and Safety
The automotive-grade battery cells used in the PR-LV48100-3U-PRO’s construction are both extremely dependable and safe. It contains advanced safety features including temperature control, short circuit protection, and overcharge and overdischarge prevention.
Including those made by Victron, SMA, Goodwe, SRNE, Solis, SAJ, Growatt, Luxpower, Voltronic, Deye, and more renowned manufacturers. As a result, it may be simply incorporated into existing solar energy systems to maximize energy savings.
High-grade A-grade battery cells
Recognized for their great performance, long lifespan, and high energy density, are used in the construction of the PR-LV48100-3U-PRO. These cells are designed to withstand intense heat, jolting, and other abrasive situations.
The PR-LV48100-3U-PRO is a very cost-effective energy storage device that offers exceptional value for the money. For companies looking to reduce energy costs and their carbon impact, it is a desirable investment because to its long cycle life, minimal maintenance needs, and high energy density.
Cell Type LiFePO4
Nominal Voltage 48V
Nominal Capacity 100Ah
Norminal Energy 4.8kWh
Working Voltage 37.5~54.75V
Dimension (L*W*H) 17.32*16.53*5.28in
Net Weight 40kg
Maximum Charge Current 1C/100A
Maximum Discharge Current 1C/100A
Charging Temp.Range 0~55°C
Discharging Temp.Range -20~60°C
Series/Parallel Number 15S1P
Design Life 20 Years
Cycle Life(25°C@40%DOD) >8000 Cycles
Cycle Life(25°C@80%DOD) >4000 Cycles
IP Grade IP21
Warranty Document Supplied Yes
Alarms Overcharge, OverDischarge, Overcurrent, OverTemperature, ShortCircuit
Monitoring & Protection Bulit-in smart BMS
Pros Can be used in both off-grid and hybridsetups, compact design, stack or cabinet installation.
Optional Functions LCD screen, Circuit breaker
Compatible Inverters: Victron/SMA/Goodwe/SRNE/Solis/SAJ/Growatt/Luxpower/Voltronic/Deye/etc.
Certification & Safety Standard CE/UN38.3
