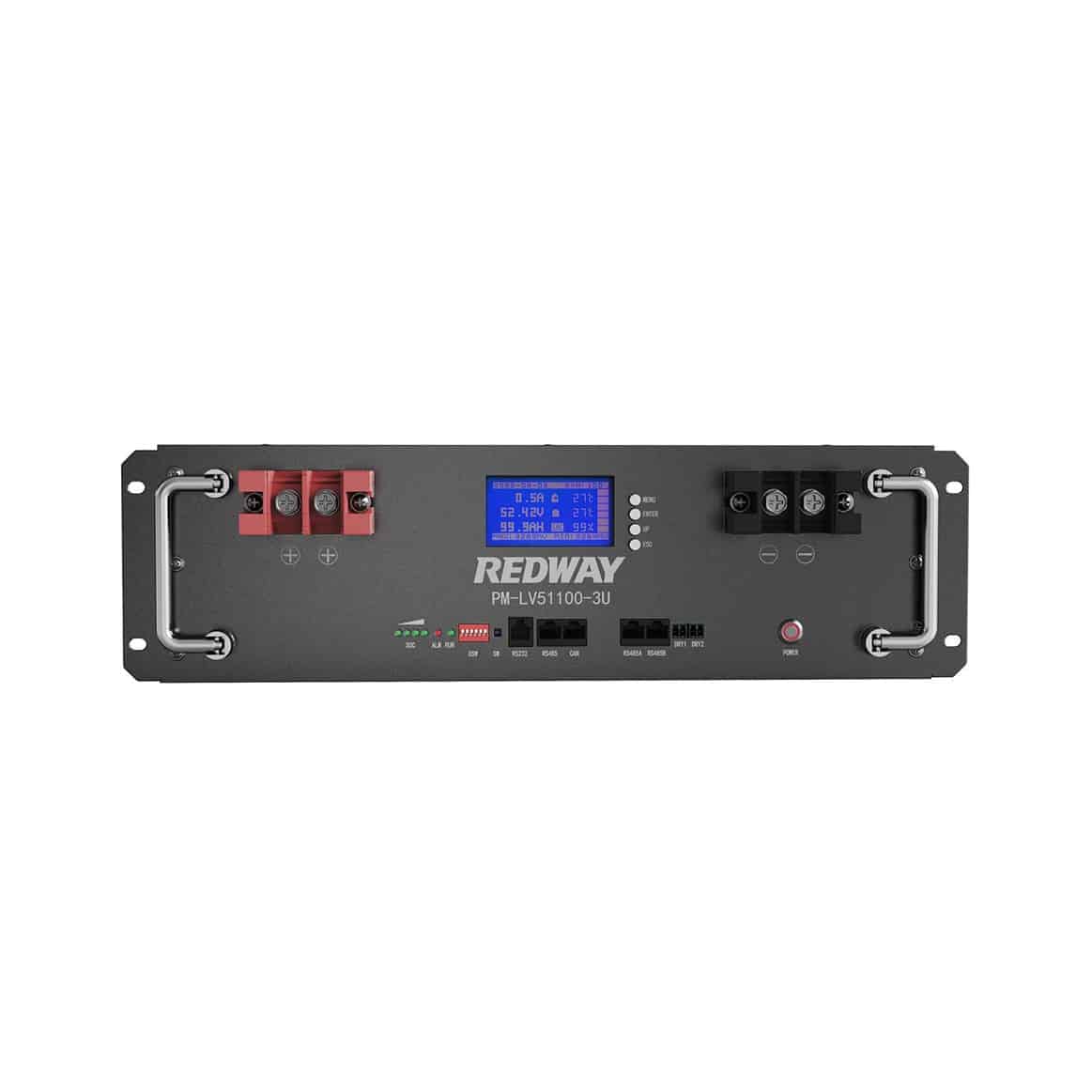

PM-LV51100-3U Factory LiFePO4 Battery Module

PM-LV51100-3U Factory LiFePO4 Battery Module

Production Info

✅ Modular design with flexible configuration

✅ High energy density with long cycle life

✅ Expandable designup-to 16 units in parallel

✅ Wide Inverter Compatibility

✅ Cost effectiveness with less replacement

✅ Automotive grade battery cells with BMS protection integrated


High-quality Lithium Iron Phosphate (LiFePO4) batteries like the PM-51100-3U are made to offer dependable and effective power storage options for a range of applications. This battery is a strong and durable energy source with a 100Ah capacity and a nominal energy of 5120Wh. The battery is compatible with a variety of inverters, including Victron, SMA, Goodwe, SRNE, Solis, SAJ, Growatt, Luxpower, Voltronic, Deye, and more thanks to its nominal voltage of 51.2V and operational voltage range of 40-58.4V.

Product applications and advantages

High Energy Density:

The PM-51100 is perfect for applications that need for high power output and extended backup times because it has a capacity of 100Ah and a nominal energy of 5120 Wh.

Reliable and secure:

The module contains premium LiFePO4 cells that deliver the best performance, stability, and safety. The cells have a longer life cycle of up to 6000 cycles and are made to endure extreme temperatures.

Expandable design:

The PM-51100 has an extensible architecture that makes installation and customization simple. To boost capacity and power production, businesses can link numerous modules in parallel or in series.

Wide Inverter Compatibility:

The module works with a variety of inverters from well-known manufacturers including Victron, SMA, Goodwe, SRNE, Solis, SAJ, Growatt, Luxpower, Voltronic, Deye, and more. This makes system integration with existing ones simple.

A grade Battery Cells:

The PM-51100 uses A-grade battery cells, which provide greater performance, dependability, and safety. To ensure that they satisfy the highest standards, the cells have undergone extensive testing.


For companies wishing to transition to renewable energy sources, PM-51100 offers a cost-effective alternative. Long lifespan and minimal maintenance requirements result in cheaper running expenses over time.

Technical Data

Items Specification
Model PM-LV51100-3U
Battery Type LiFePO4
Battery Capacity 100Ah
Nominal Voltage 51.2V
Working Voltage 40~58.4V
Nominal Energy 5.12kWh
Net Weight 42kg (92.6 lbs)
Dimension [L*W*H]  440*420*134 mm
(17.32*16.53*5.28 inch)
Maximum Charge Current 100A (1C)
Maximum Discharge Current 100A (1C)
Charge Voltage 58.4V
Discharge Cut-off Voltage 40V
Charging Temp. Range 0~55°C
Discharging Temp. Range -20~60°C
Series/Parallel Number 16S1P
Design Life 20 Years
Warranty 10 Years
Cycle Life (25°C@40% DOD) >8000 Cycles
Cycle Life (25°C@80% DOD) >4000 Cycles
IP Grade IP21 (higher grade optional)
Max. Parallel Connection Up to 16 Units
Communication CAN/RS485
Color Black
Alarms Overcharge/OverDischarge/Overcurrent/OverTemperature/ShortCircuit
Monitoring & Protection Built-in smart BMS
Pros Support off-grid and hybrid working mode, compact design, wall and floor type
Optional Functions LCD screen/Circuit breaker/Bluetooth
Compatible Inverters Victron/SMA/Goodwe/Solis/SAJ /Growatt/Luxpower/SRNE/Voltronic/Deye/etc.
Certification & Safety Standard CE/IEC 62619/UL 1642/RoHS/UN38.3/MSDS


LiFePO4 Battery Module PM-LV51100-3U Factory OEM Manufacture  Download Datasheet
