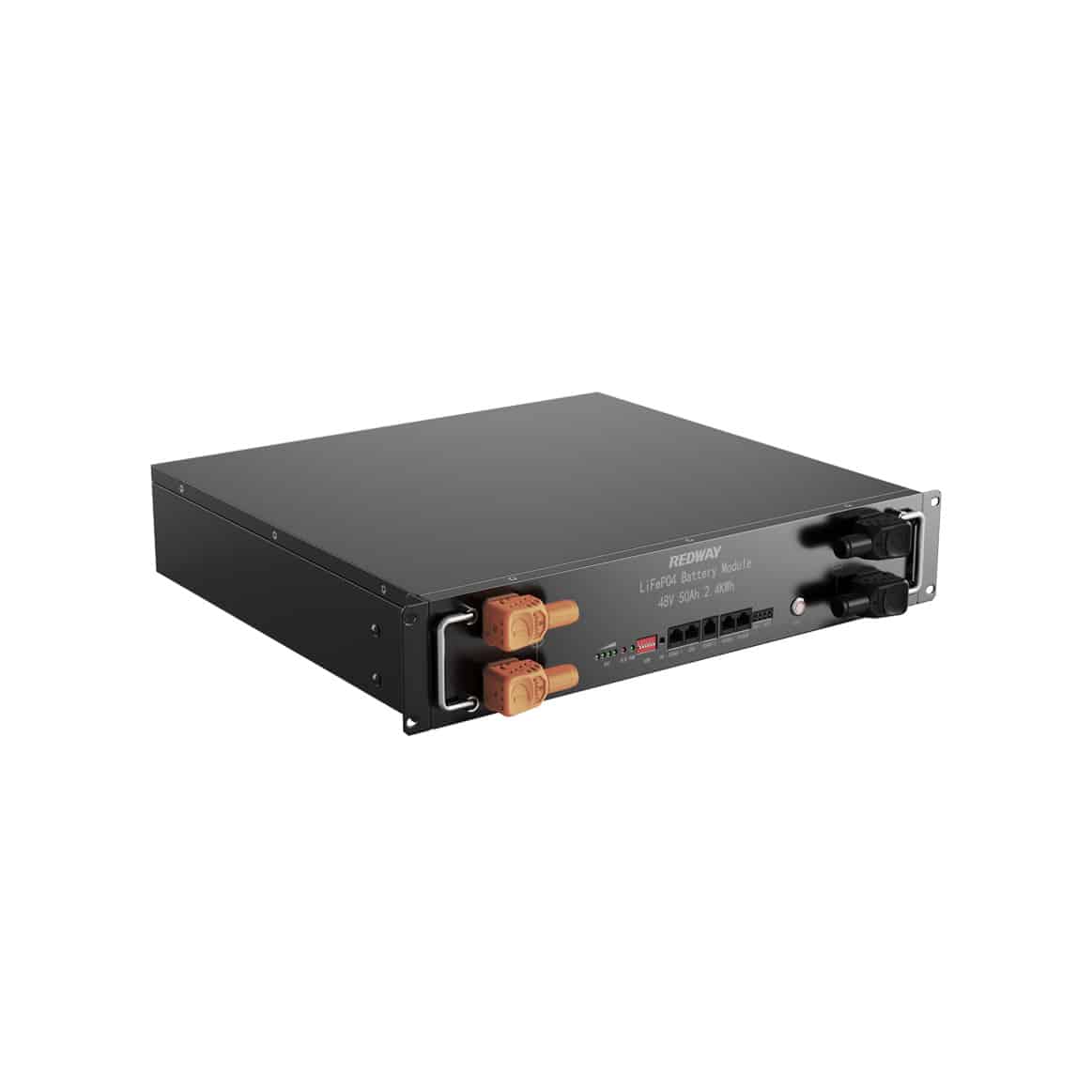

Whether you’re using it on-grid or off-grid, the PR-LV4850-2U-PRO lithium iron phosphate battery will deliver excellent performance. With a nominal voltage of 48V and a nominal capacity of 50Ah, this battery has a nominal energy of 2.4kWh, making it ideal for both domestic and commercial use.
With a voltage range of 37.5 to 54.75 volts, it can be used in a variety of situations. The 440 mm x 410 mm x 88.5 mm 3-part skid does not require a large installation area. Installation and transportation are convenient, because it is very lightweight (20 kg).
With a maximum charge and discharge current of 1C/50A, the PR-LV4850-2U-PRO is able to be charged and discharged quickly. The battery remains stable in a wide temperature range between 0 and 55°C for charging and -20°C to 60°C for discharging.
It uses CAN/RS485 for communications and is IP21-rated against dust and water leaks. Its serial/parallel number is 15S1P.
By integrating a smart BMS, the PR-LV4850-2U-PRO’s battery is monitored and safeguarded to prevent overcharging, overdischarge, overcurrent, overtemperature, and short circuits. In addition to its 20-year design life, it can be cycled over 8000 times at 25 °C and 40% DOD or over 4000 times at 25 °C and 80% DOD.
Inverters such as Victron, SMA, Goodwe, SRNE, Solis, SAJ, Growatt, Luxpower, Voltronic, and Deye can be connected to the PR-LV4850-2U-PRO.
A warranty document comes with the black battery, which is CE/UN38.3 certified for international travel.
Due to its reliability, effectiveness, and adaptability, the PR-LV4850-2U-PRO battery can be used in both residential and commercial settings. The battery’s performance can be easily monitored and controlled due to its small size, stack or cabinet installation options, and optional LCD panel.
Main Features and advantages
PR-LV4850-2U-PRO Lithium Battery Module is designed to fit in a variety of locations thanks to its modern, standardized design.
Due to its modular architecture, the PR-LV4850-2U-PRO is a cost-effective and versatile solution for a variety of applications.
High Reliability and Safety:
Designed with automotive-grade battery cells that are highly reliable and safe, the PR-LV4850-2U-PRO features overcharge and over discharge protection, temperature control, and short circuit protection.
PR-LV4850-2U-PRO can be easily integrated into current solar energy systems as it is compatible with inverters from well-known brands such as Victron, SMA, Goodwe, SRNE, Solis, SAJ, Growatt, Luxpower, Voltronic, Deye, and others.
A-Grade Battery Cells:
The PR-LV4850-2U-PRO battery is made from premium A-grade cells and has been designed to withstand high temperatures, vibrations, and abrasion.
The PR-LV4850-2U-PRO energy storage system provides excellent value for money. In addition to its long cycle life, low maintenance requirements, and high energy density, it is an attractive investment for businesses wishing to reduce their carbon footprint and save energy expenses.
Cell Type: LiFePO4
Nominal Voltage: 48V
Nominal Capacity: 50Ah
Nominal Energy: 2.4kWh
Working Voltage: 37.5~54.75V
Dimension (L*W*H): 17.32*16.14*3.48in or 440*410*88.5mm
Net Weight: 22kg
Maximum Charge Current: 1C/50A
Maximum Discharge Current: 1C/50A
Charging Temperature Range: 0~55°C
Series/Parallel Number: -20~60°C
Series/Parallel Number: 15S1P
Design Life: 20 Years
Cycle Life(25°C@40%DOD): >8000 Cycles
Cycle Life(25°C@80%DOD): >4000 Cycles
IP Grade: IP21
Warranty Document Supplied: Yes
Alarms: Overcharge, OverDischarge, Overcurrent, OverTemperature, ShortCircuit
Monitoring & Protection: Bulit-in smart BMS
Pros: Can be used in both off-grid and hybridsetups, compact design, stack or cabinet installation.
Optional Functions: LCD screen, Circuit breaker
Compatible Inverters: Victron/SMA/Goodwe/SRNE/Solis/SAJ/Growatt/Luxpower/Voltronic/Deye/etc.
Certification & Safety Standard: CE/UN38.3
