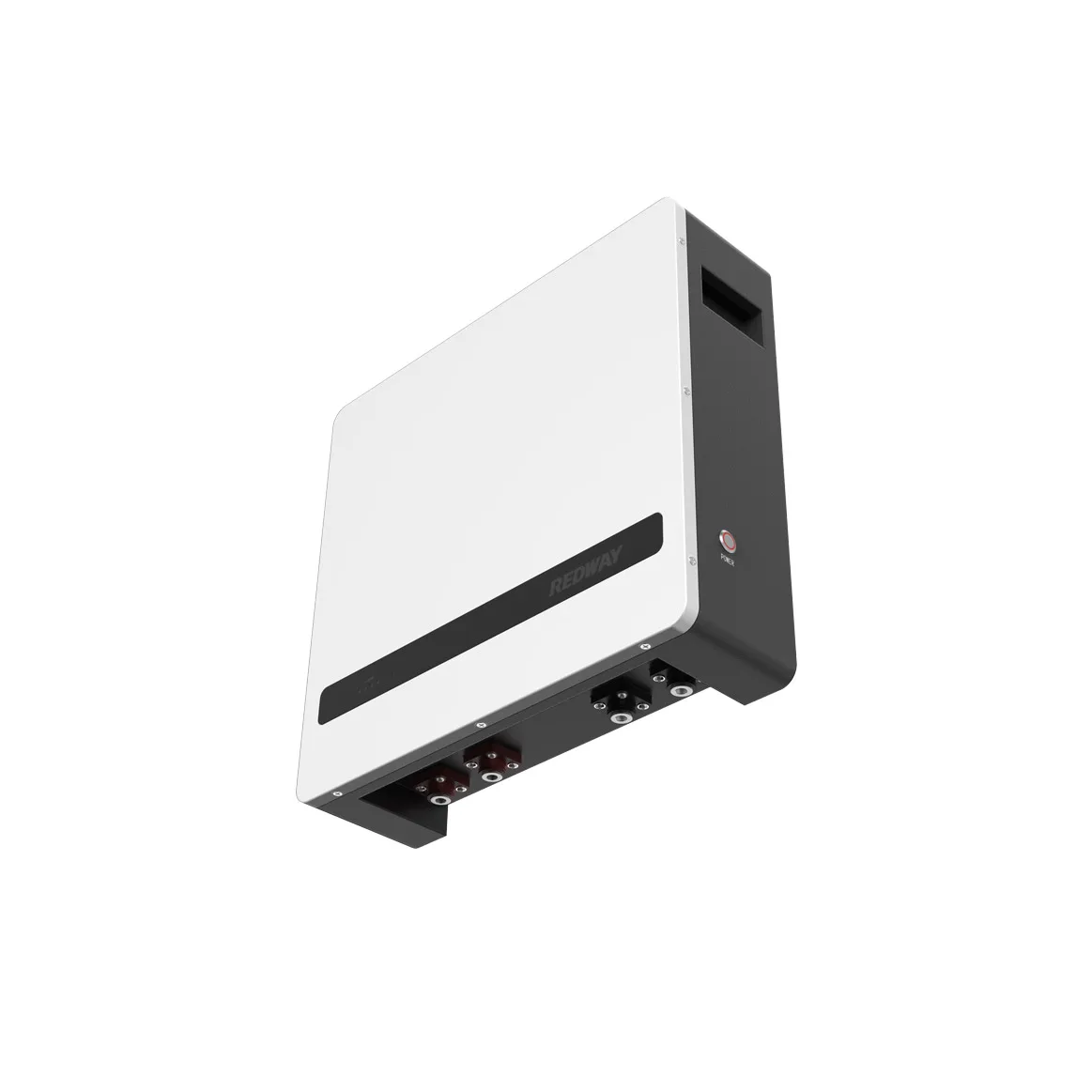

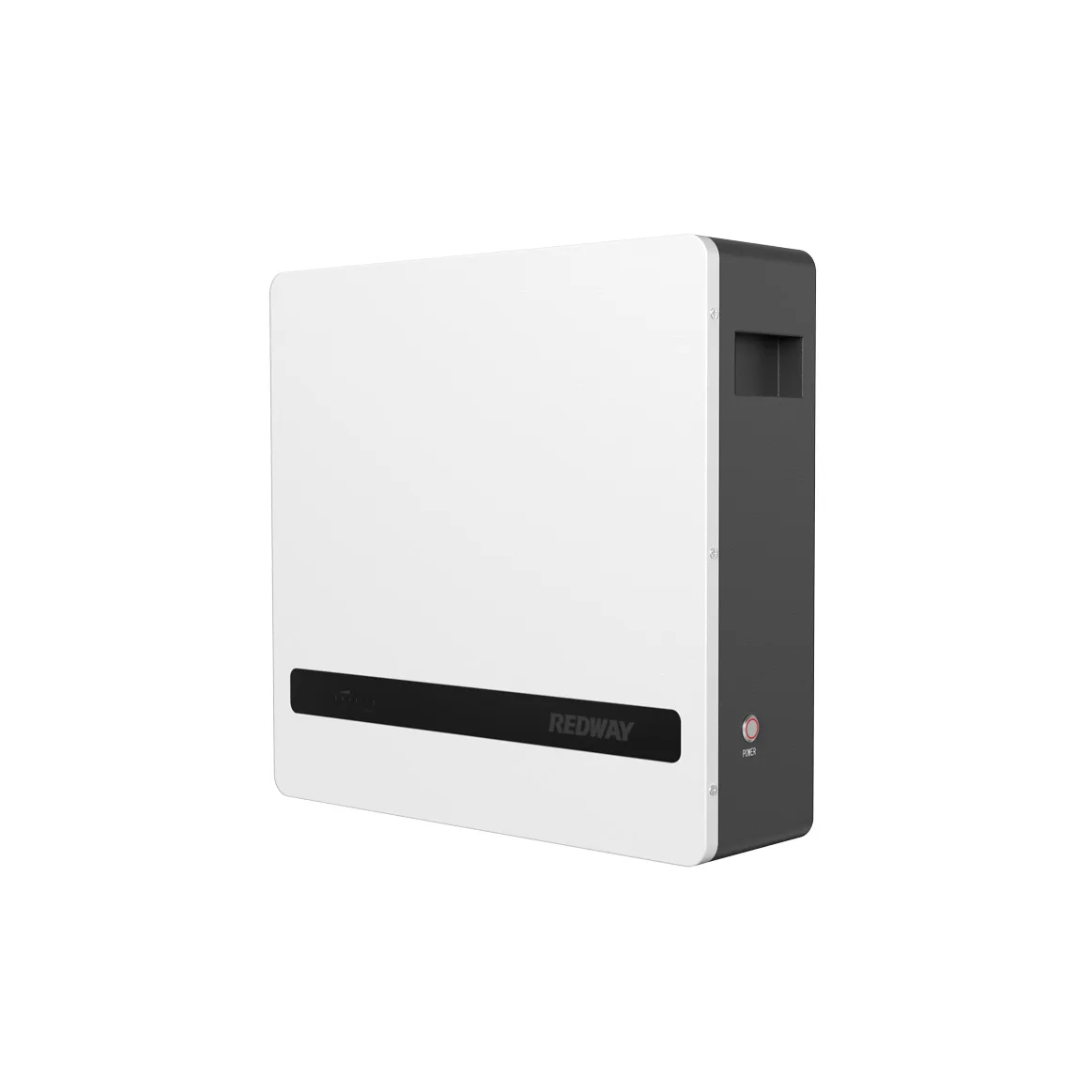

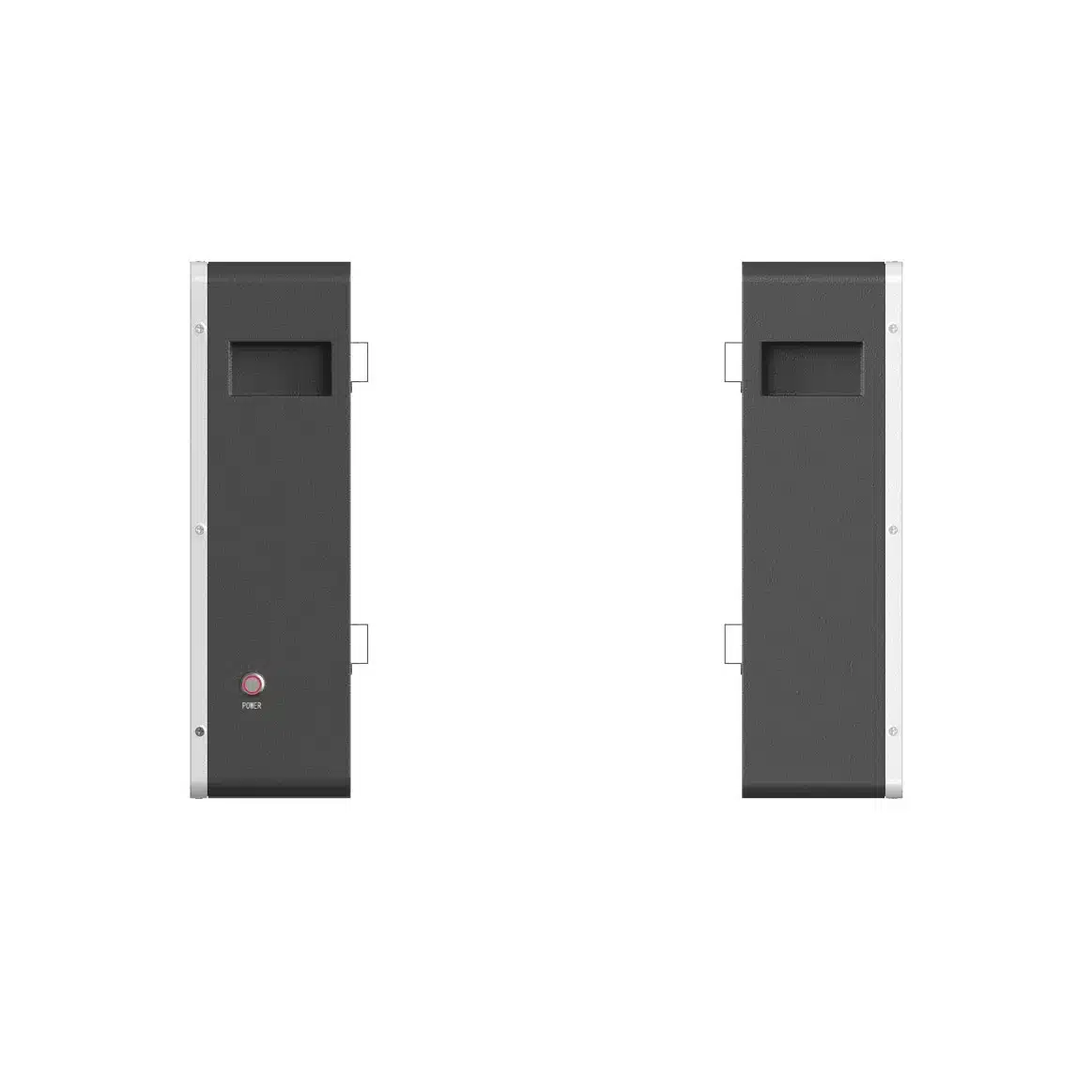

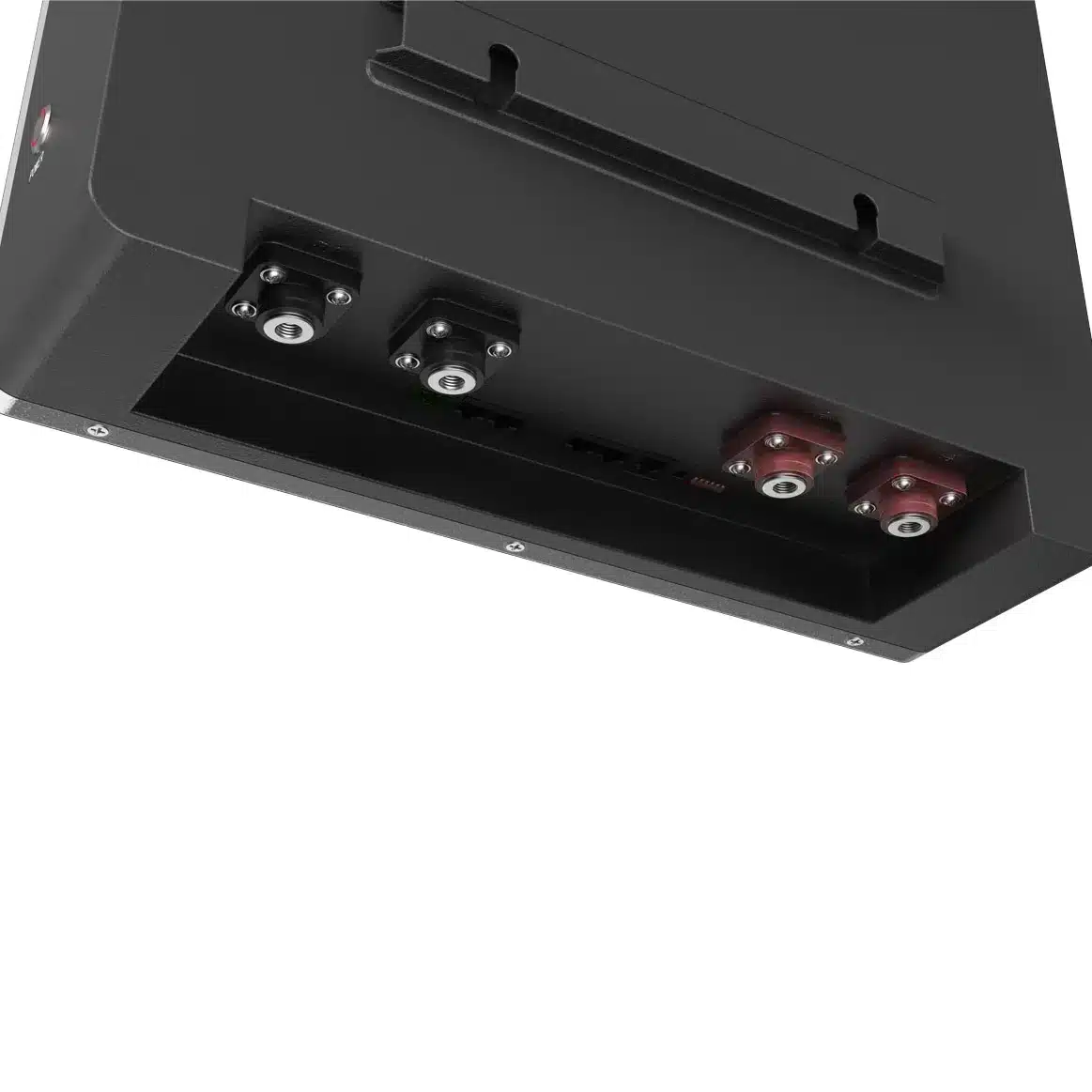

24V 100Ah Wall-mounted Lithium Battery Factory (PW24105-S)

24V 100Ah Wall-mounted Lithium Battery Factory (PW24105-S)

Production Info

✅ Backup Protection with built in BMS

✅ Self-Powered Home with extended cycle life

✅ Time-Based Control provides subsidy in your electricity bills

✅ Modern and Compact design with easy installation

Description

The PW24105-S Power Storage Wall by Redway Battery delivers powerful and efficient 25.6V 100Ah (2.56kWh) energy storage in a compact, wall-mountable design ideal for home and small-scale energy applications. Whether for backup power, solar self-consumption, or peak shaving, this system offers superior performance and flexibility.

Designed for backup protection, it instantly activates during grid outages to power critical home appliances. It stores solar energy during the day and releases it at night, enabling a truly self-powered home. For customers on Time-of-Use rates, the PW24105-S helps reduce utility bills by using stored solar energy when grid electricity is most expensive.

Built with LiFePO4 (LFP) cells and protected by a robust JBD BMS, this unit boasts >8000 cycles at 80% DOD, ensuring a 20-year design life and 10-year warranty. It supports 100A continuous charge/discharge, making it capable of handling higher power loads with ease.

With RS485 and CAN-bus communications, LCD display, and optional upgrades like Bluetooth, 4G, WiFi, and self-heating, the PW24105-S integrates smoothly with major inverter brands such as Victron, Growatt, SMA, and more. Certified for UL 1642, CE, UN38.3, and other standards, it’s the smart choice for residential energy independence.

Specifications

PW24105-S Specifications
Lithium Cell LiFePO4 (LFP)
Nominal Capacity 100Ah
Nominal Voltage 25.6V
Nominal Energy 2.56kWh
Dimensions [L*W*H] 420 x 400 x 133 mm
16.5 x 15.7 x 5.2 inches
Weight 25kg
55 lbs
Max Continuous Charge Current 100A
Max Continuous Discharge Current 100A
Max Charge Voltage 29.2V
Discharge Cut-off Voltage 20V
Charge Temperature 0 ~ 60°C
Discharge Temperature -20 ~ 60°C
Design Life 20 Years
Warranty 10 Years
Cycle Life (25°C@80% DOD) >8000 Cycles
Cycle Life (25°C@60% DOD) >9000 Cycles
IP Rating IP21
Max Parallel Connections 16
Communications RS485 / CAN-bus
LCD Display Yes
Battery Shell Metal
BMS JBD BMS
OEM Yes
Optional Upgrades Bluetooth / App / 4G / WiFi / RS232 / RJ45 / Circuit Breaker / Active Balance / Self-heating / etc.
Compatible Inverters Victron / SMA / Goodwe / Solis / SAJ / Growatt / Luxpower / SRNE / Voltronic / Deye / etc.
Certifications UL 1642 / IEC 62619 / CE / UN38.3 / MSDS

Downloads

  Download Datasheet

Know More

How Does the 24V 100Ah Wall-mounted LiFePO4 Battery Advance Home and Commercial Energy Storage?

The 24V 100Ah wall-mounted LiFePO4 battery PW24105-S from Redway Battery delivers high energy density, long cycle life, and robust safety for home and commercial energy storage. With advanced BMS, broad compatibility, and extensive customization, it is engineered for reliable, scalable, and sustainable power in modern energy systems.

What are the main features and technical specifications of the 24V 100Ah wall-mounted LiFePO4 battery?

The PW24105-S is a 24V 100Ah lithium iron phosphate battery designed for wall-mounting, offering 2.56kWh of energy in a compact 420 x 400 x 133 mm form factor and weighing just 25kg. It features a nominal voltage of 25.6V, max charge/discharge current of 100A, and supports up to 32 parallel connections for flexible system expansion.

Chart: Key Specifications of 24V 100Ah Wall-mounted LiFePO4 Battery

Specification Value
Nominal Voltage 25.6V
Capacity 100Ah
Energy 2.56kWh
Dimensions (mm) 420 x 400 x 133
Weight 25kg
Max Charge/Discharge 100A
Cycle Life >8000 cycles (80% DOD)
IP Rating IP21
Max Parallel Units 32
Design Life 20 Years
Warranty 10 Years
LCD Screen Yes

How does the battery management system (BMS) ensure safety and reliability?

The advanced BMS in the PW24105-S monitors voltage, current, and temperature at the cell level, providing protection against overcharge, over-discharge, overcurrent, short circuits, and overheating. It supports cell balancing and real-time diagnostics, ensuring safe, stable, and long-lasting battery operation even under demanding conditions.

What are the key applications and industries for this battery?

The 24V 100Ah wall-mounted LiFePO4 battery is ideal for residential solar storage, villas, farms, resorts, hotels, schools, hospitals, and backup power systems. Its compact design and high energy output make it suitable for both off-grid and grid-tied applications where space, reliability, and safety are critical.

Chart: Common Applications of 24V 100Ah Wall-mounted LiFePO4 Battery

Application Benefit
Homes & Villas Reliable solar storage, backup
Schools & Hospitals Uninterrupted power, safety
Hotels & Resorts Stable, scalable energy
Farms & Restaurants Off-grid, sustainable supply
Commercial Buildings Space-saving, high uptime

How long is the cycle life and what is the expected service life?

The PW24105-S delivers over 8000 cycles at 80% depth of discharge, with a design life of up to 20 years. This exceptional longevity ensures a low total cost of ownership and minimal maintenance, making it a sustainable investment for long-term energy storage.

What customization and OEM/ODM options are available?

Redway Battery offers extensive customization for the PW24105-S, including branding, communication protocols (RS485, CAN), optional Bluetooth/WiFi, self-heating, LCD/LED displays, and cabinet color. OEM/ODM services support unique voltage, capacity, or integration needs, allowing clients to tailor battery modules for specific projects.

How does the battery integrate with inverters and energy systems?

The PW24105-S is compatible with leading inverter brands such as GROWATT, GOODWE, Victron, Solis, SMA, Deye, and more. It supports standard communication interfaces (RS485, CAN-bus) for seamless integration with energy management systems, ensuring flexible deployment in hybrid, off-grid, or grid-tied scenarios.

What are the delivery, payment, and shipping options?

Redway Battery provides flexible delivery terms (FOB, EXW, CIF) and accepts T/T, L/C, and PayPal payments. Shipping is available by sea, air, or land, with minimum order quantities starting at 5 units. Global logistics ensure timely, efficient delivery for wholesale and OEM clients.

How does Redway Battery differentiate its PW24105-S in the market?

Redway Battery stands out with top-tier cell sourcing (CATL, EVE, BYD, Samsung SDI, and more), advanced BMS technology, and a strong focus on customization. Their commitment to quality, rapid delivery, and comprehensive after-sales support positions Redway as a leading supplier for advanced wall-mounted lithium batteries worldwide.

What are the environmental and sustainability benefits of LiFePO4 wall-mounted batteries?

LiFePO4 chemistry is non-toxic, highly recyclable, and offers a long service life, reducing waste and environmental impact. The high efficiency and minimal self-discharge of the PW24105-S align with sustainability goals, making it ideal for green energy projects and eco-conscious businesses.

Recent trends include higher energy density, advanced BMS with remote monitoring, self-heating for cold climates, and enhanced communication for smart grid integration. Redway Battery leads with modular, customizable solutions and rapid scalability to meet the evolving demands of residential and commercial clients.

What warranty and support does Redway Battery provide?

Redway Battery backs the PW24105-S with a 10-year warranty and 20-year design life. Clients benefit from comprehensive technical support, maintenance guidance, and flexible service terms, ensuring peace of mind and long-term reliability.

Redway Battery Expert Views

“At Redway Battery, we engineer our wall-mounted LiFePO4 batteries for reliability, safety, and adaptability. The PW24105-S is a testament to our commitment to advanced BMS, robust cycle life, and seamless integration. Our OEM/ODM services and global support empower clients to achieve their energy goals with confidence.”

  • Redway Battery Technical Expert

Conclusion

The 24V 100Ah wall-mounted LiFePO4 battery PW24105-S from Redway Battery sets a new benchmark for home and commercial energy storage. Its high energy density, extended cycle life, advanced safety, and customization options make it the ideal solution for critical applications. Redway Battery’s dedication to quality, innovation, and support ensures a future-proof investment for diverse energy needs.

FAQs

What makes the PW24105-S superior to traditional lead-acid batteries?
It offers higher safety, longer cycle life, greater energy density, and lower maintenance.

Can multiple PW24105-S batteries be connected for larger systems?
Yes, up to 32 units can be paralleled to expand energy storage as needed.

Is the battery suitable for cold environments?
Optional self-heating and robust design ensure reliable operation from -20°C to 60°C.

Does Redway Battery offer OEM/ODM customization?
Absolutely. Redway Battery supports tailored solutions for branding, features, and integration.

What industries benefit most from this battery?
Homes, villas, schools, hospitals, hotels, farms, and commercial buildings.
