Things You Need To Know about Lithium ion Battery Pack

Lithium-ion (Li-ion) batteries stand as the cornerstone of modern rechargeable battery technology, prized for their high energy density and versatility across consumer electronics, electric vehicles, and renewable energy storage solutions. Understanding the intricacies of Li-ion battery packs is crucial for anyone looking to harness their potential effectively.

Chemistry and Working Principles of Li-ion Batteries

1. Anode, Cathode, and Lithium Storage:

• The anode and cathode of Li-ion batteries store lithium ions during the charging process.
• Lithium ions are stored in the anode material, while the cathode material acts as a host for lithium ions during discharge.

2. Electrolyte and Ion Movement:

• The electrolyte in Li-ion batteries carries positively charged lithium ions between the anode and cathode.
• These lithium ions move through a separator, which prevents direct contact between the anode and cathode, ensuring safety and preventing short circuits.

3. Generation of Electrical Energy:

• The movement of lithium ions from the anode to the cathode generates free electrons in the anode material.
• These free electrons create a charge at the positive current collector, allowing for the storage and release of electrical energy.

Key Components: 18650 Cells

1. Cathode and Anode:

• The cathode and anode are vital components of 18650 cells. They store and release lithium ions during the charging and discharging processes.
• The cathode typically consists of a metal oxide that contains lithium atoms, while the anode is commonly made from carbon-based materials.

2. Electrolyte:

• The electrolyte plays a crucial role in 18650 cells by facilitating the movement of lithium ions between the cathode and anode.
• It acts as a medium for the transport of ions, allowing for the flow of electrical charge during the battery’s operation.

3. Separator:

• The separator is a critical component that physically separates the cathode and anode in 18650 cells.
• It acts as a barrier, preventing direct contact between the cathode and anode, which could lead to short circuits and potential hazards.

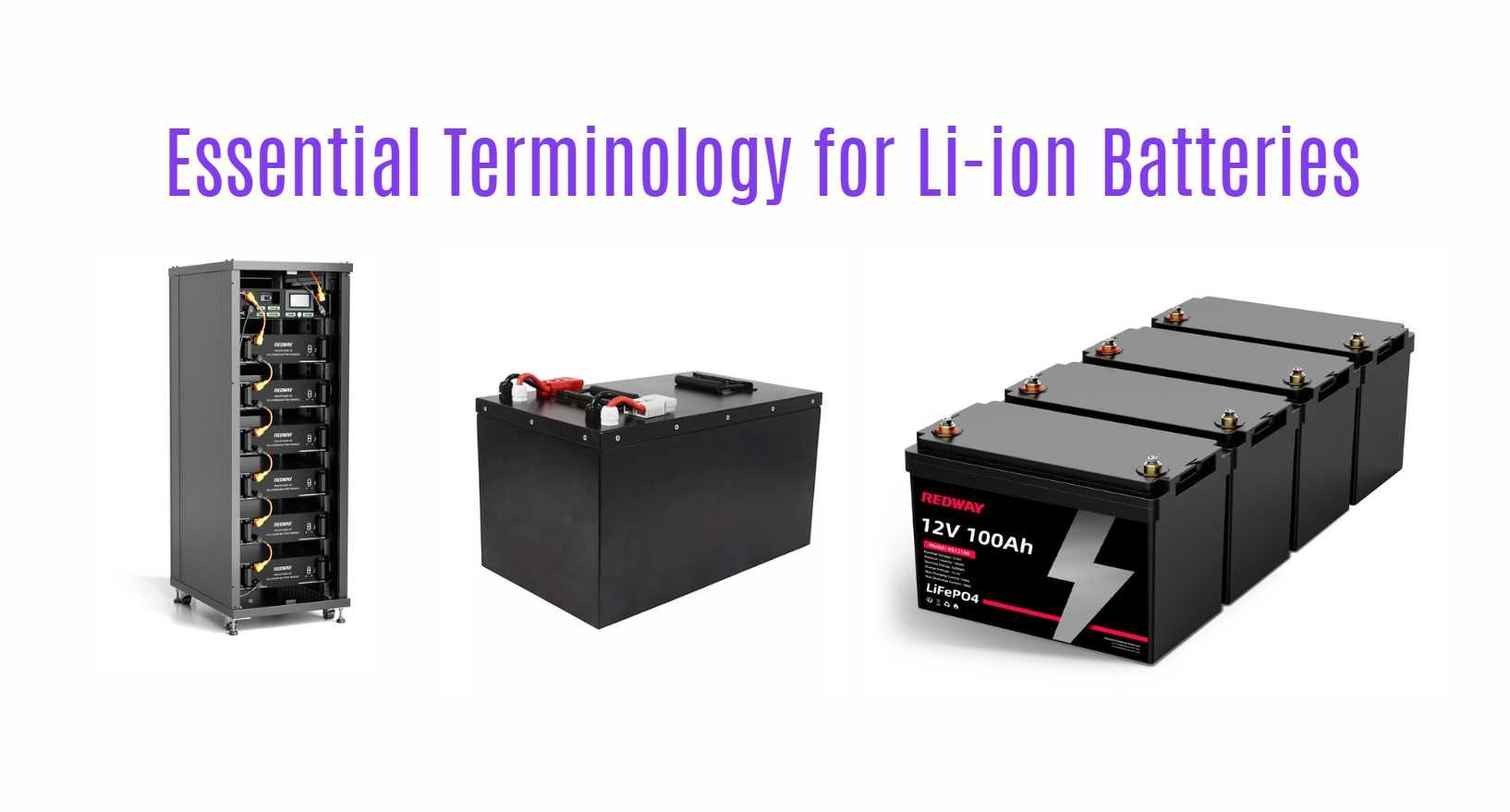

Essential Terminology for Li-ion Batteries

1. Capacity:

• Capacity represents the amount of charge that a Li-ion battery can store. It is measured in ampere-hours (Ah) or milliampere-hours (mAh).
• Capacity indicates the energy storage capacity of the battery and determines how long it can power a device.

2. Voltage:

• Voltage refers to the electrical potential difference between the positive and negative terminals of a Li-ion battery.
• It determines the working voltage of the battery during discharge and charge cycles.

3. Discharge and C-rate:

• Discharge is the process of releasing stored energy from the Li-ion battery to power a device or system.
• C-rate is a measure of the battery’s discharge or charge rate relative to its capacity. For example, a 1C rate means discharging or charging the battery in one hour.

Constructing Li-ion Battery Packs

Constructing Li-ion battery packs involves connecting individual Li-ion cells using nickel strips or thick wire. Factors to consider include voltage and runtime requirements, loading, environmental conditions, size, and weight limitations. By properly assembling the battery pack, you can create a functional and safe power source for various applications.

1. Connect Cells: To build a battery pack, connect individual Li-ion cells using nickel strips or thick wire. This ensures proper electrical connections and allows the cells to work together effectively.
2. Consider Requirements: Take into account voltage and runtime requirements, loading conditions, environmental factors, size, and weight limitations. This ensures that the battery pack meets the specific needs of the application.
3. Prioritize Safety: Follow recommended guidelines and best practices to ensure the safe construction and operation of the Li-ion battery pack. Safety should always be a top priority when working with lithium-ion batteries.

The Role of Battery Management Systems (BMS)

1. Temperature Monitoring and Control: A BMS monitors the temperatures across the battery pack and takes necessary actions to maintain the temperature within a specific range. This helps to optimize battery performance and prevent overheating or freezing, which can lead to degradation or even failure of the battery.
2. Cell Balancing: In multi-cell battery packs, individual cells may have variations in voltage levels. The BMS ensures that each cell is balanced by transferring energy between cells, equalizing their voltage levels. This balancing process maximizes the overall capacity and extends the lifespan of the battery.
3. Overcharge and Over-discharge Protection: The BMS safeguards the battery from overcharging and over-discharging, which can cause irreversible damage or even pose safety risks. It monitors the battery’s state and takes preventive measures to maintain it within safe operating limits.

Design Considerations for Optimal Performance

1. Battery Chemistry: The choice of battery chemistry impacts the performance, energy density, and lifespan of Li-ion batteries. Designers need to select the appropriate chemistry that aligns with the specific application requirements.
2. Safety: Ensuring the safety of Li-ion batteries is of utmost importance. Designers must incorporate safety features such as thermal management systems, overcharge and over-discharge protection, and fault detection mechanisms to prevent accidents and maintain the integrity of the battery.
3. Performance: Design considerations for optimal performance include factors like cell balancing, voltage regulation, and impedance control. These factors help maximize the battery’s energy output, efficiency, and overall performance.
4. Cost: Designing Li-ion batteries involves finding a balance between performance and cost. Manufacturers need to consider factors such as material costs, production processes, and economies of scale to create cost-effective battery solutions.
5. Environmental Sustainability: Designers must also consider the environmental impact of Li-ion batteries. This includes selecting materials with low environmental footprint, designing for recyclability, and minimizing the use of hazardous substances.
6. Disposal and Recycling: Proper disposal and recycling options should be considered during the design phase to minimize the environmental impact of Li-ion batteries and promote circular economy practices.
