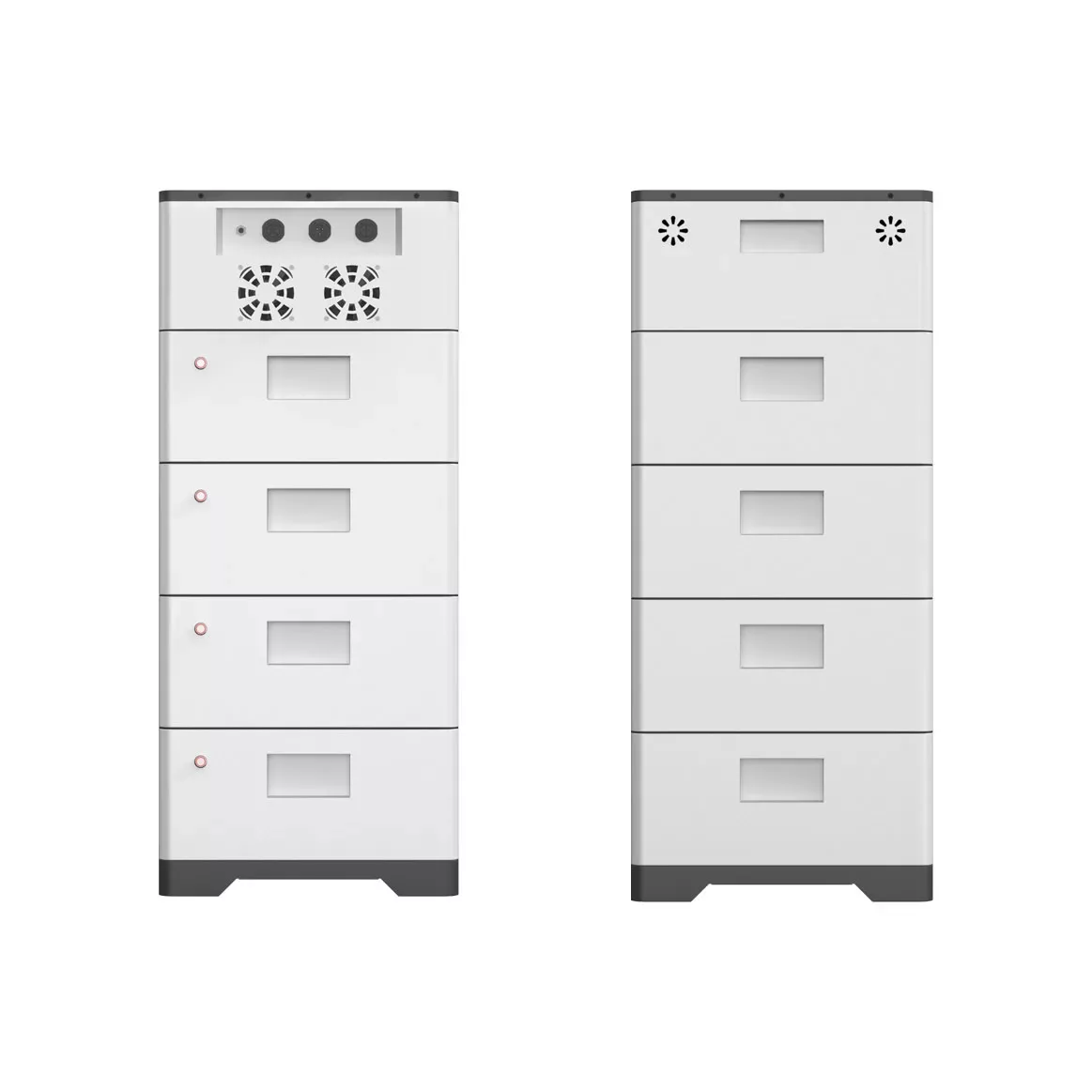

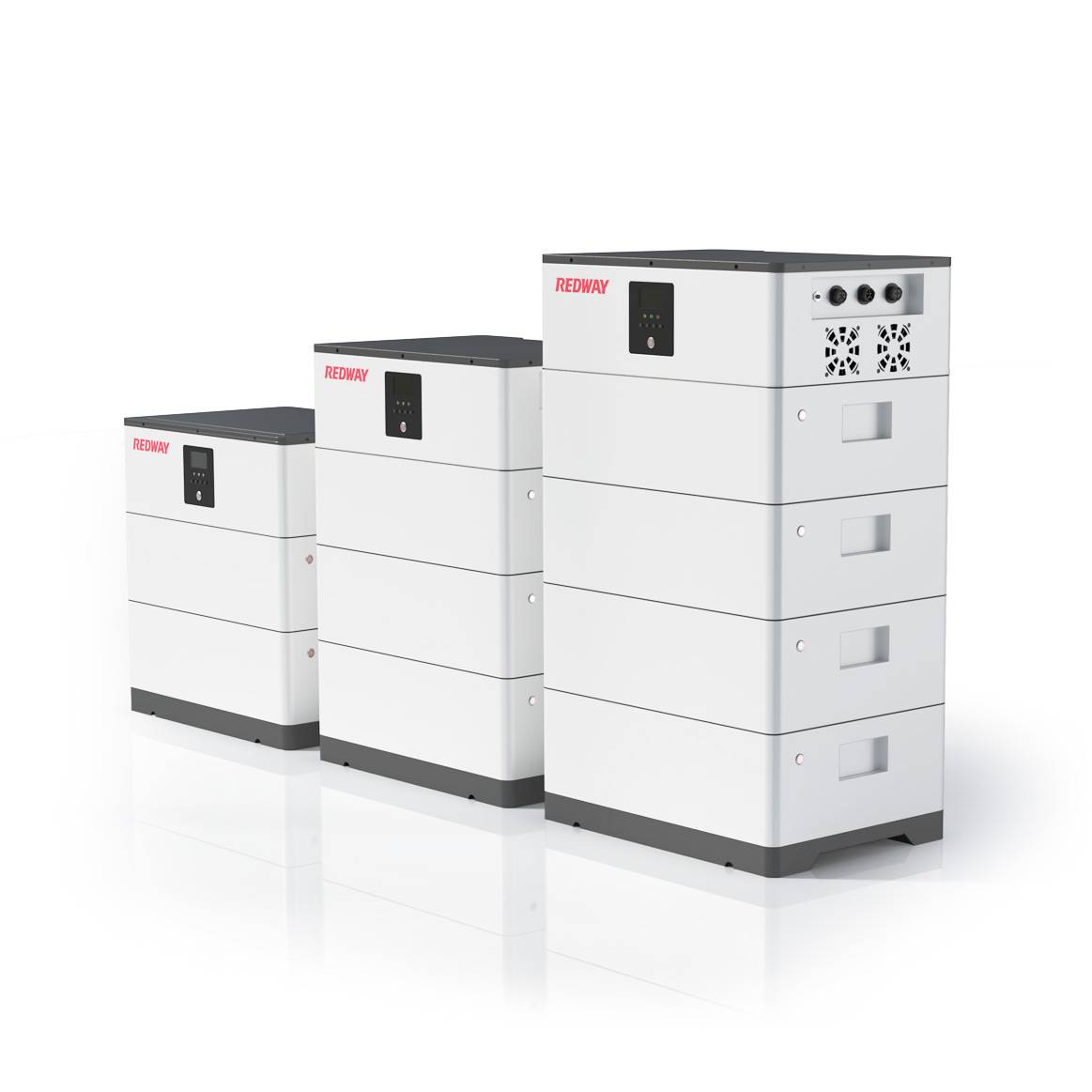

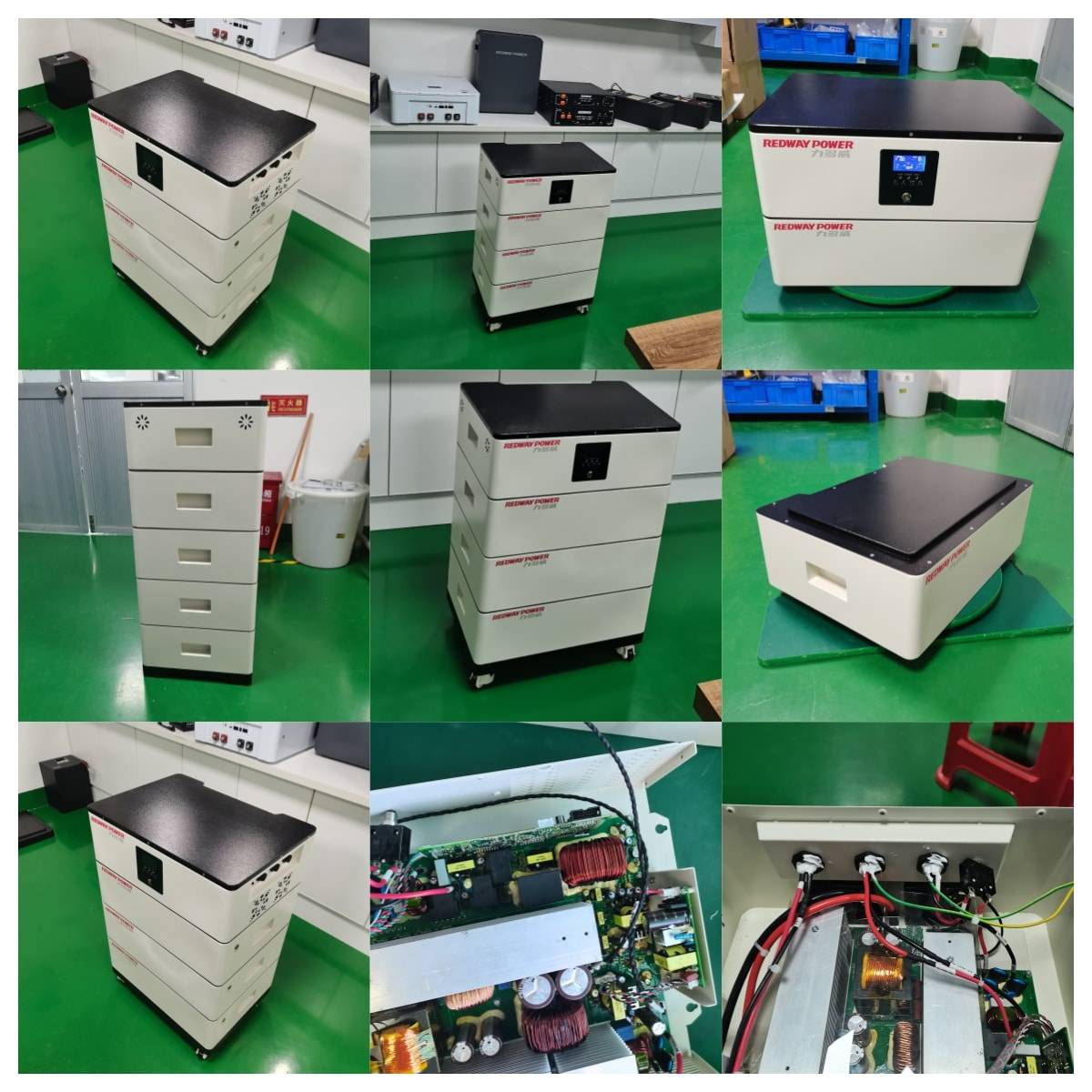

All-in-One Home-ESS 51.2V 48V PowerAll 5kWh 10kWh 15kWh 20kWh 25kWh 30kWh 35kWh 36kWh

All-in-One Home-ESS 51.2V 48V PowerAll 5kWh 10kWh 15kWh 20kWh 25kWh 30kWh 35kWh 36kWh

Production Info

✅ Built in Inverter and LifePO4 Battery – Plug and play solution

✅ MPPT controller for maximum power point tracking

✅ Upto 32kWh of battery energy capacity

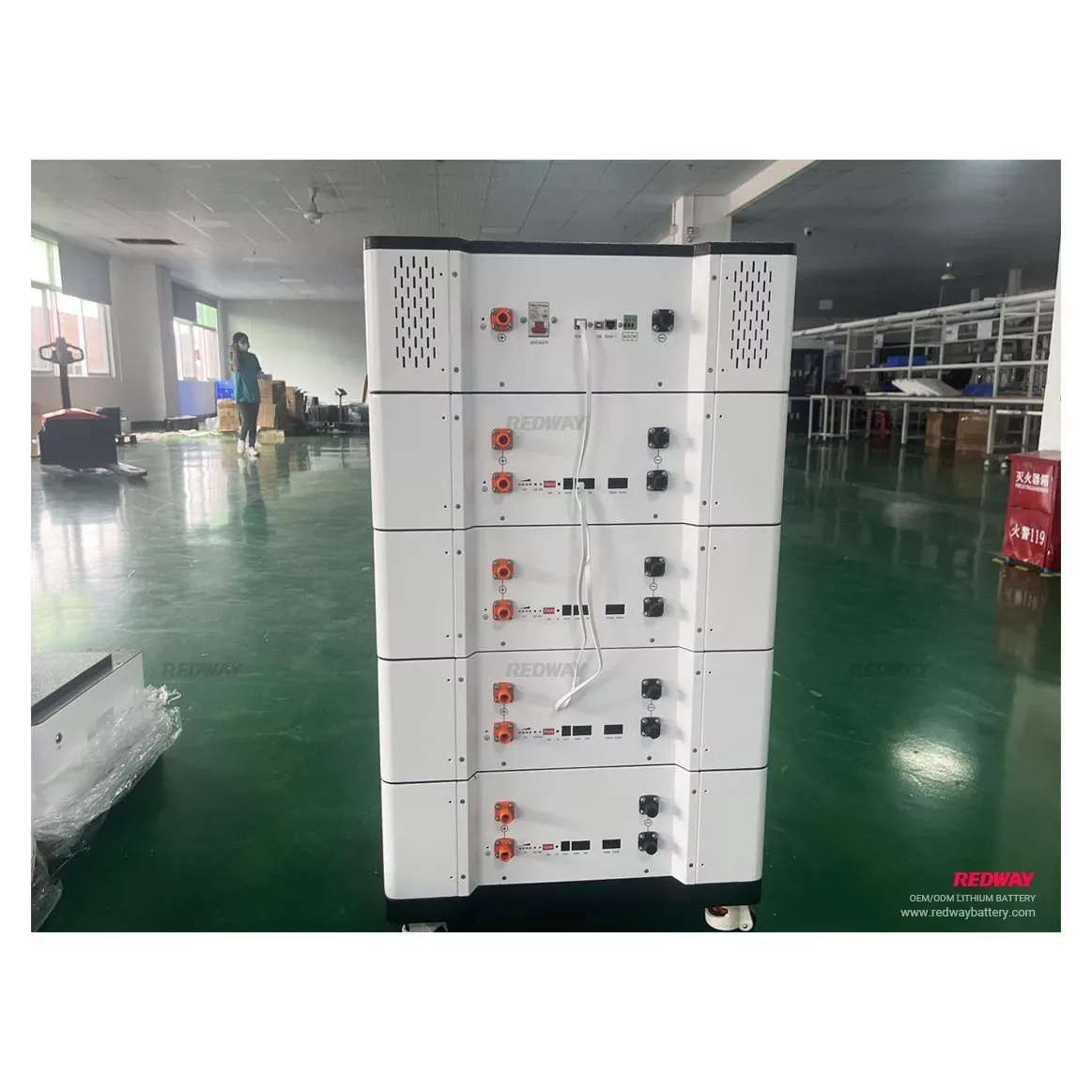

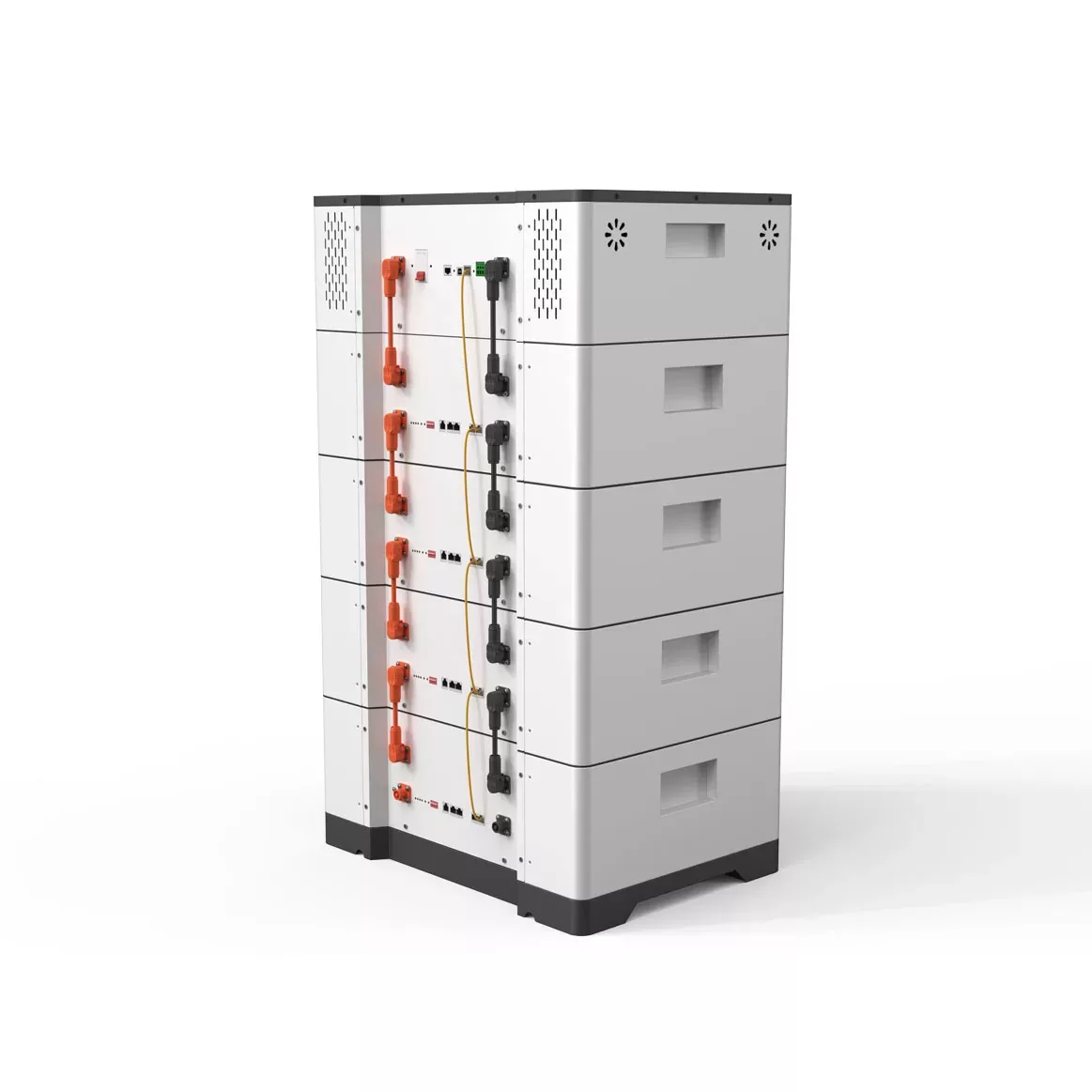

✅ Stack-able configuration to increase power

✅ Easy to install – Flexible wheels design

✅ Less space consumption with compact design

✅ Inbuilt BMS for enhanced protection

Description

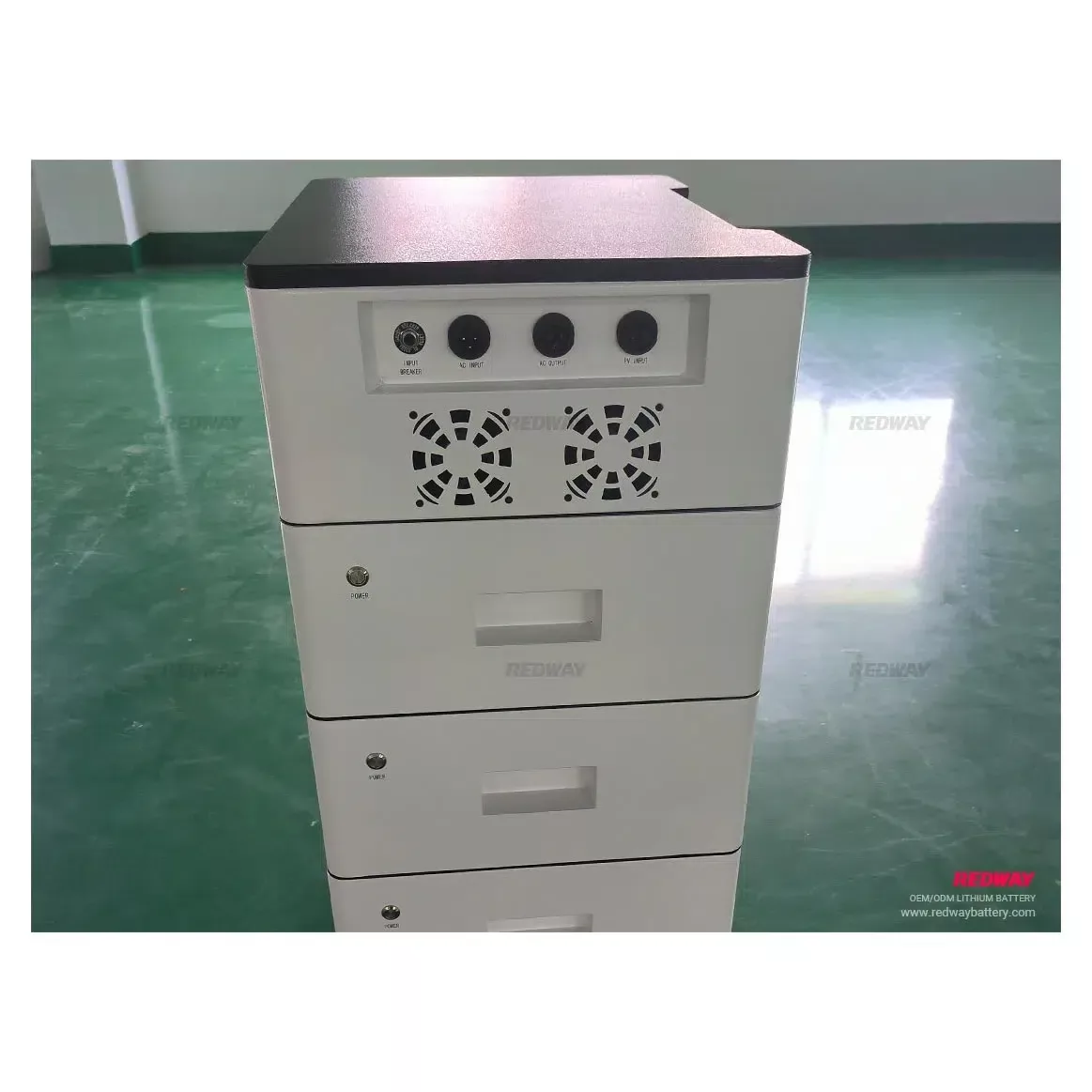

The Redway Battery’s HOME-ESS PowerAll 48V (51.2V) All-in-One HESS System is a compact and modular solution that provides reliable and efficient energy storage for homes and small businesses. The system uses high-performance lithium iron phosphate (LFP) batteries that are known for their long cycle life, high safety, and stable performance. The battery modules are equipped with an intelligent battery management system (BMS) that provides automatic real-time monitoring and control of the battery status and performance.

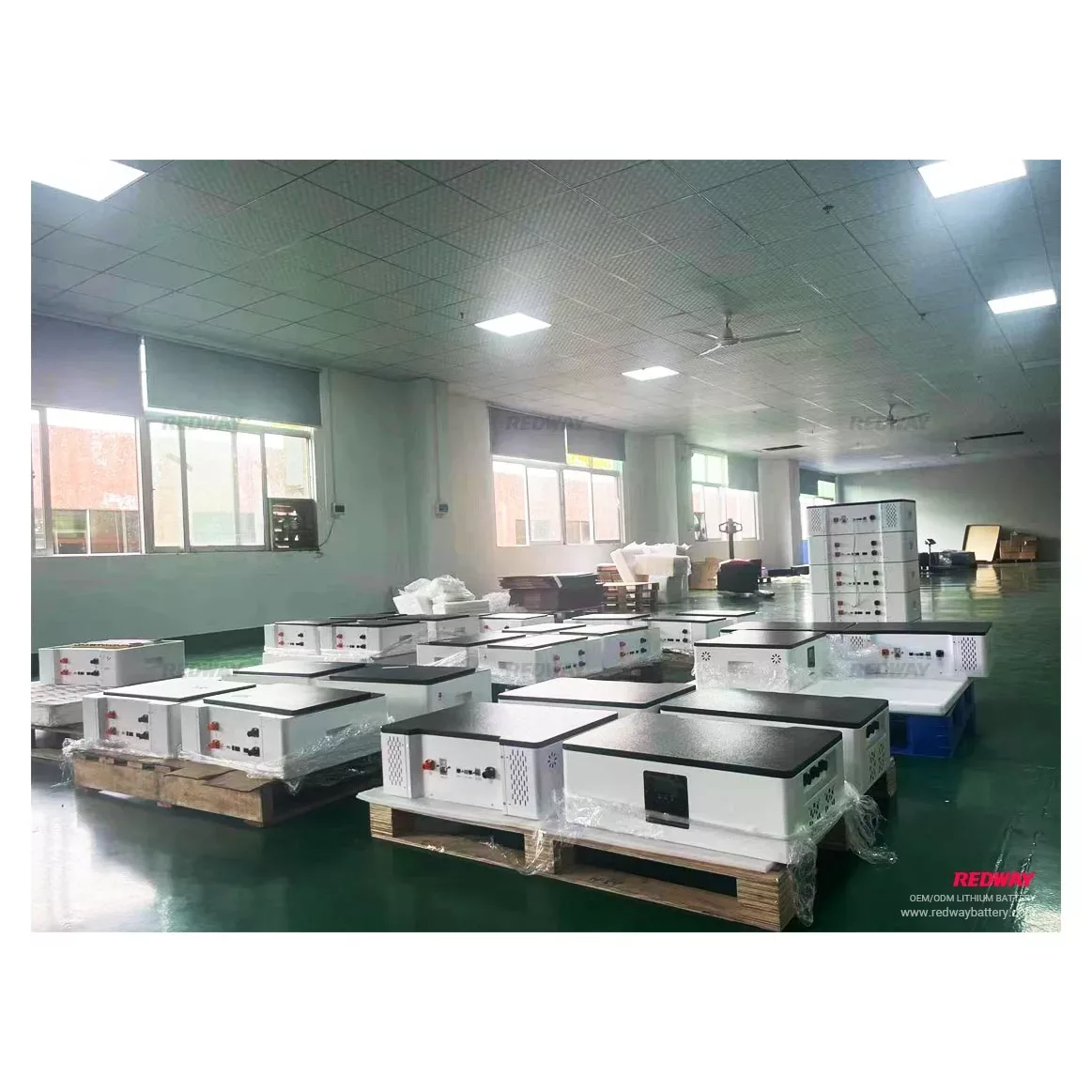

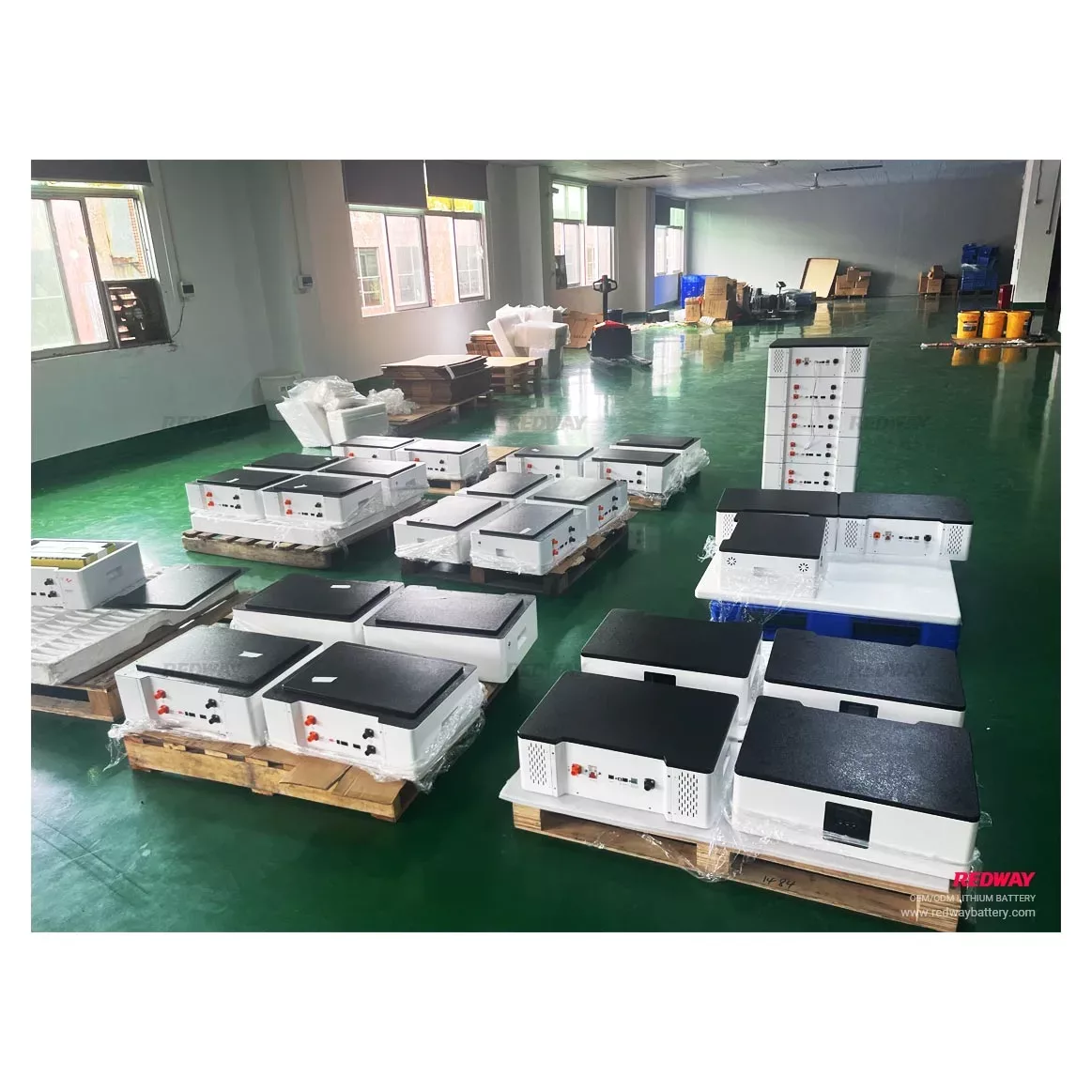

51.2V all-in-one home ESS System factory manufacturer

PowerAll Applications:
  1. Home-ESS OFF-Grid Solar System
  2. Home-ESS Hybrid Solar System

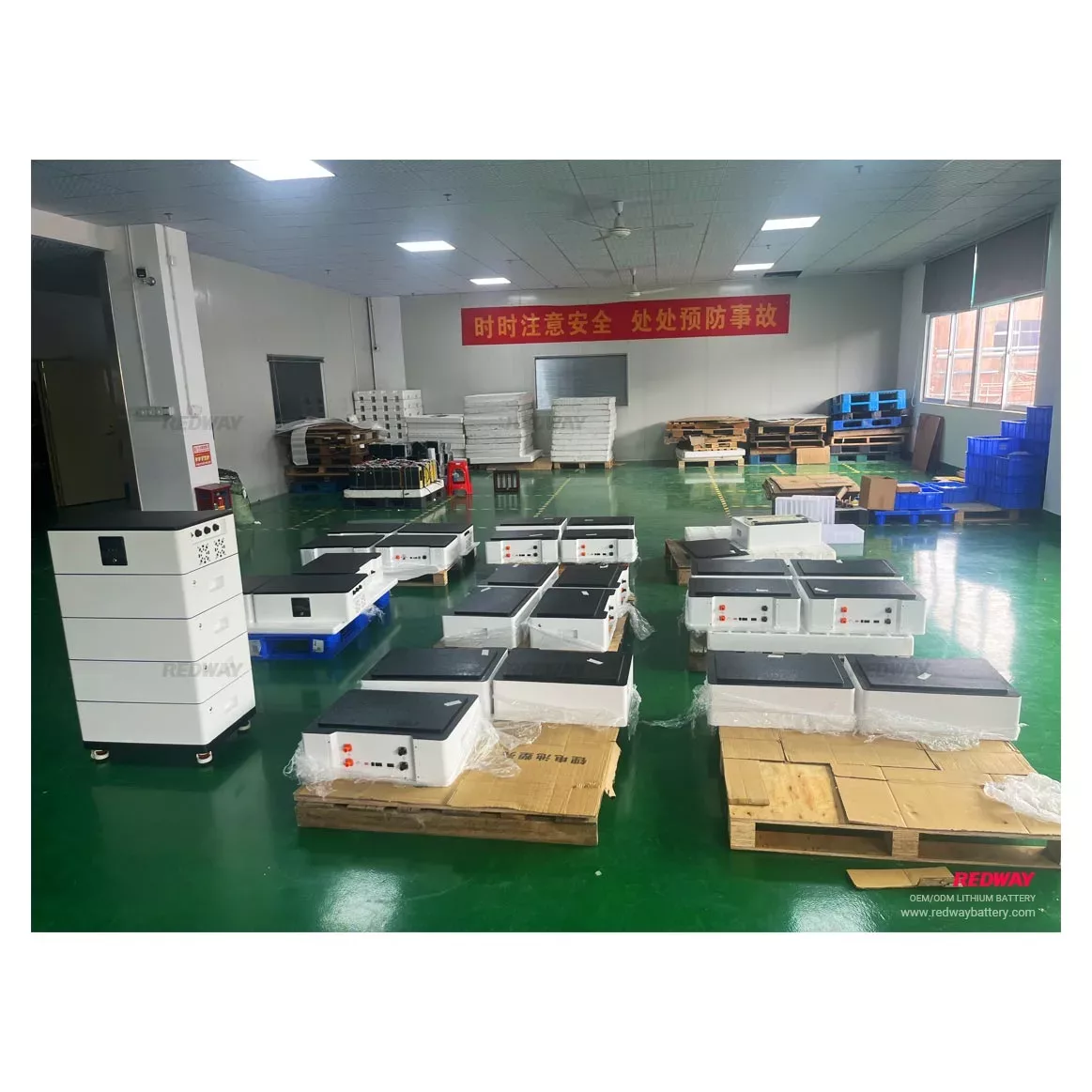

Redway PowerAll 48V (51.2V) All-in-One Home-ESS System Factory oem / odm manufacturer

Redway Battery OEM Factory Wholesale Price. Get a Quick Quote Now!

Specifications

Battery Specifications
Battery Quantity 1 PCS 2 PCS 3 PCS 4 PCS 5 PCS 6 PCS
Battery Energy 5.37kWh 10.75kWh 16.12kWh 21.50kWh 26.88kWh 32.25kWh
Battery Capacity 105Ah 210Ah 315Ah 420Ah 525Ah 630Ah
Weight 87kg
191 lbs
142kg
313 lbs
197kg
434 lbs
252kg
555 lbs
307kg
676 lbs
362kg
798 lbs
Dimensions [L x W x H] 580 x 420 x 430 mm
22.8 x 16.5 x 16.9 inches
580 x 420 x 615 mm
22.8 x 16.5 x 24.2 inches
580 x 420 x 800 mm
22.8 x 16.5 x 31.5 inches
580 x 420 x 985 mm
22.8 x 16.5 x 38.7 inches
580 x 420 x 1170 mm
22.8 x 16.5 x 46 inches
580 x 420 x 1355 mm
22.8 x 16.5 x 53.3 inches
Cell Type LiFePO4 (LFP) CATL / EVE / LG
Battery Voltage 51.2V
Working Voltage 40V ~ 58.4V
Max Charge Peak Voltage 58.4V
Discharge Cut-off Voltage 40V
Max Continuous Charge Current 100A
Max Continuous Discharge Current 100A
Charge Temperature 0°C ~ 50°C
Discharge Temperature -15°C ~ 55°C
Operating Humidity <80%
Operation Altitude <4000 m
Max Parallel Connection 6 PCS Batteries
Cycle Life (25°C @60% DOD) >8000 Times
Cycle Life (25°C @80% DOD) >6000 Times
Cooling Force Air Cooling
Noise <50 dB
Operation Environment Indoor
Installation Method Horizontal
Self-discharge <3% per month
IP Rating IP40
Battery Shell Steel
Battery Automatic BMS Protection JBD / DALY / DAREN Brands,
Home-ESS Smart BMS: Overcharge / Overdischarge / Overcurrent / Overtemperature / Overload / Overvoltage / Low-voltage / Low Temperature / Short Circuit / Reverse Polarity Protection / Battery Cell Balance / etc.
Communication RS485
Optional Upgrades Bluetooth / WiFi / APP / RS232 / CAN-bus / Circuit Breaker / Active Balance / LED Touch Screen / 4G / Anti-theft / etc.
Accessories Inverter Power Cables / Parallel Cables / Communication Cables / Grounding Cables
Colors White / Gray / Black / Red / Blue / Yellow
Design Life 20 Years
Warranty 10 Years
User Manual Yes
Silkscreen / Label Print / Laser Logo Customizable
Certifications & Safety Standards UL1642 / IEC62619 / UN38.3 / MSDS
Inverter Specifications
PV Charge EU US
Solar Charge Type MPPT MPPT
Maximum Output Power 5kWh 5kWh
PV Charging Current Range 0~80A 0~80A
PV Operating Voltage Range 120V~500V 120V~500V
MPPT Voltage Range 120V~450V 120V~450V
AC Charge EU US
Maximum Charge Power 2100W 2100W
AC Charge Current Range 0~60A 0~40A
Rated Input Voltage 220V / 230V 110V / 120V
Input Voltage Range 90V~280V 90V~140V
AC Output EU US
Rate Output Power 5kW 5kW
Maximum Output Current 40A 40A
Frequency 50Hz / 60Hz 50Hz / 60Hz
Overload Current 40A 40A
Inverter Output EU US
Rate Output Power 5kW 5kW
Maximum Peak Power 10kVa 7kVa
Power Factor 1 1
Rated Output Voltage (Vac) 230V 120V
Frequency 50Hz / 60Hz 50Hz / 60Hz
Auto Switch Period UPS mode <10 ms / APL mode < 20 ms  UPS mode <10 ms / APL mode < 20 ms
THD <3% <3%
Communication Interface RS485 / RS232 / USB / Bluetooth / WiFi / APP RS485 / RS232 / USB / Bluetooth / WiFi / APP

Data Updated at July 11, 2024.
