The 48v 100ah LiFePO4 battery is a powerful and reliable energy solution for a variety of applications. Whether you’re using it for solar energy storage or powering electric vehicles, the LiFePO4 48v 100ah battery offers exceptional longevity and stability. It is known for its high energy density, long life cycle, and safety features compared to other battery types.
When choosing a battery LiFePO4 48v 100ah, it’s essential to ensure that it meets your power needs. The 48v LiFePO4 battery 100ah provides ample capacity for most medium to large applications. For those seeking top-quality and dependable energy storage, Redway Battery, China LiFePO4 Battery Wholesale Supplier is an excellent choice, offering high-performance, long-lasting batteries for all your energy storage requirements.
Redway Battery offers a full range of lithium batteries in BCIGroup 24, Group 27, Group 31, Group 34, Group 35, Group 51, Group 51R, Group 78, Group 8D dimensions, etc. We are a professional lithium battery factory. We undertake OEM/ODM production of lithium battery, please Contact us.
RG51105P
Specifications
Lithium Cell
LiFePO4 (LFP)
Nominal Voltage
51.2V
Nominal Capacity
105Ah

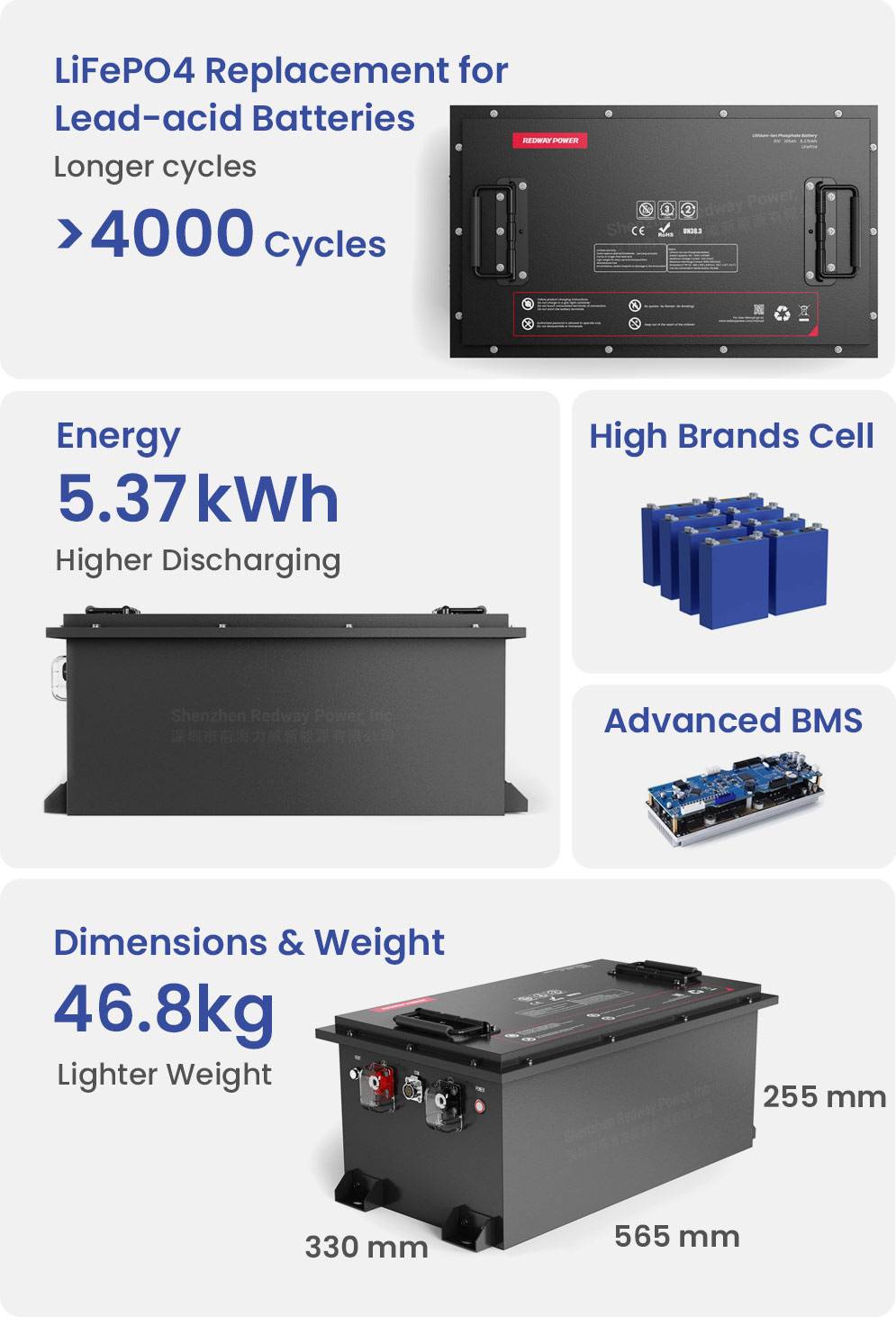

Nominal Energy
5.37kWh
Max Charge Voltage
58.4V
Discharge Cut-off Voltage
40V
Max Continues Charge Current
150A
Max Continues Discharge Current
150A
Peak Discharge Current
315A (30S)
Dimensions
[L x W x H]
565 x 330 x 255 mm
22.2 x 13 x 10 inches
Weight
46.8 kg
103 lbs
IP Rating
IP66
Communications
RS485
Max Parallel Connections
4
Internal Resistance
≤10mΩ
Cycle Life
>5000 cycles (80% DOD 0.5C)
Self-Discharge
3% (Per month)
Power Switch
Yes
Charge Temperature
0°C ~ 60°C
Discharge Temperature
-20°C ~ 65°C
Storage Temperature (1 Month)
-20 ~ 45°C
Storage Temperature (1 Year)
0 ~ 35°C
Optional Upgrades
Bluetooth / App / 4G / GPS / Self-heating / LCD Display / RS232 / CAN-bus / RJ45 / Active Balance / Cooling Fan / Circuit Breaker / Solar MPPT / etc.
Standard Charge Current
22A (5 hours)
BMS
JBD / DALY BMS
Battery Shell
Metal
Warranty
3 Years
Silkscreen / Label / Laser Logo
Yes
User Manual
Yes
OEM / ODM
Yes
Shipment
Yes
Design Life
10 Years
Certifications
UL 1642 / IEC 62619 / CE / MSDS / UN38.3
Specifications
RG51105P
Specifications
Lithium Cell
LiFePO4 (LFP)
Nominal Voltage
51.2V
Nominal Capacity
105Ah
Nominal Energy
5.37kWh
Max Charge Voltage
58.4V
Discharge Cut-off Voltage
40V
Max Continues Charge Current
150A
Max Continues Discharge Current
150A
Peak Discharge Current
315A (30S)
Dimensions
[L x W x H]
565 x 330 x 255 mm
22.2 x 13 x 10 inches
Weight
46.8 kg
103 lbs
IP Rating
IP66
Communications
RS485
Max Parallel Connections
4
Internal Resistance
≤10mΩ
Cycle Life
>5000 cycles (80% DOD 0.5C)
Self-Discharge
3% (Per month)
Power Switch
Yes
Charge Temperature
0°C ~ 60°C
Discharge Temperature
-20°C ~ 65°C
Storage Temperature (1 Month)
-20 ~ 45°C
Storage Temperature (1 Year)
0 ~ 35°C
Optional Upgrades
Bluetooth / App / 4G / GPS / Self-heating / LCD Display / RS232 / CAN-bus / RJ45 / Active Balance / Cooling Fan / Circuit Breaker / Solar MPPT / etc.
Standard Charge Current
22A (5 hours)
BMS
JBD / DALY BMS
Battery Shell
Metal
Warranty
3 Years
Silkscreen / Label / Laser Logo
Yes
User Manual
Yes
OEM / ODM
Yes
Shipment
Yes
Design Life
10 Years
Certifications
UL 1642 / IEC 62619 / CE / MSDS / UN38.3
Downloads
Know More
A 48V 100Ah LiFePO4 lithium golf cart battery factory with a 315A BMS produces high-capacity, long-life batteries that deliver exceptional power, safety, and efficiency for golf carts. These advanced batteries, like those from Redway Battery, offer faster charging, lighter weight, and robust protection, making them the preferred choice for modern electric golf carts.
What Is a 48V 100Ah LiFePO4 Lithium Golf Cart Battery with 315A BMS?
A 48V 100Ah LiFePO4 lithium golf cart battery with a 315A BMS is a high-performance energy storage solution designed for golf carts and electric vehicles. The 315A BMS (Battery Management System) ensures safe operation by managing charging, discharging, temperature, and fault protection. This configuration delivers high current output, supporting powerful acceleration and extended driving range.
Chart: Key Specifications of a 48V 100Ah LiFePO4 Lithium Golf Cart Battery
Specification
Typical Value
Nominal Voltage
48V (51.2V)
Nominal Capacity
100Ah
Peak Discharge
315A (30s)
Cycle Life
4000–5000+ cycles
Weight
46–48 kg
IP Rating
IP66
Communication
RS485, Bluetooth, CAN, etc.
Warranty
3–5 years
Certification
UL, CE, UN38.3, MSDS
How Does the 315A BMS Enhance Battery Safety and Performance?
A 315A BMS offers advanced protection features, including overcharge, over-discharge, overcurrent, short-circuit, and temperature safeguards. It allows for high peak currents needed during acceleration or heavy loads, while intelligent monitoring (often via Bluetooth or app) provides real-time battery status. This ensures the battery operates safely and efficiently even under demanding conditions.
What Are the Main Advantages of a 48V 100Ah LiFePO4 Lithium Golf Cart Battery?
These batteries provide superior energy density, longer lifespan (over 4000 cycles), faster charging, and lighter weight compared to lead-acid batteries. They are maintenance-free, offer stable voltage output, and operate safely across a wide temperature range. The result is a more powerful, reliable, and eco-friendly golf cart experience.
Why Is Redway Battery a Leading Manufacturer for 48V 100Ah LiFePO4 Golf Cart Batteries?
Redway Battery is recognized for its expertise in deep-cycle lithium iron phosphate technology, offering customizable and robust batteries for golf carts. Their batteries feature advanced BMS, high-quality cells, and multiple safety certifications. Redway Battery’s commitment to OEM/ODM solutions and comprehensive support makes them a top choice for golf cart battery upgrades.
How Does a 48V 100Ah LiFePO4 Battery Compare to Lead-Acid Alternatives?
LiFePO4 batteries outshine lead-acid in nearly every aspect: they are 50–80% lighter, last up to 10 times longer, charge faster, and require no maintenance. They also deliver consistent power without voltage sag, and eliminate risks of acid spills or toxic emissions.
Chart: LiFePO4 vs. Lead-Acid Battery Comparison
Feature
LiFePO4 (48V 100Ah)
Lead-Acid
Cycle Life
4000–5000+ cycles
500–1000 cycles
Weight
46–48 kg
70–90 kg
Maintenance
None
Regular water refilling
Charging Time
2–5 hours
8–12 hours
Safety
High (BMS, stable chemistry)
Lower (acid risk)
Environmental Impact
Eco-friendly, recyclable
Acid, lead pollution
Which Applications Benefit Most from 48V 100Ah LiFePO4 Golf Cart Batteries?
These batteries are ideal for golf carts, low-speed vehicles, electric shuttles, NEVs, e-trikes, and off-grid energy storage. Their high current output and long runtime make them perfect for demanding environments like golf courses, resorts, parks, and industrial facilities.
What Customization Options Are Available from Leading Factories?
Top factories like Redway Battery offer extensive customization: Bluetooth connectivity, LCD displays, CAN/RS485 communication, smart BMS, active balancing, self-heating, solar integration, and more. OEM/ODM services allow for tailored voltage, capacity, dimensions, and branding to fit specific vehicle or fleet requirements.
How Do You Maintain and Maximize the Lifespan of a 48V 100Ah LiFePO4 Battery?
LiFePO4 batteries require minimal maintenance. To maximize lifespan, ensure proper installation, avoid deep discharges, and store within recommended temperature ranges. The built-in BMS protects against misuse, and regular monitoring via app or display helps track health and performance.
What Are the Key Safety Features in Modern 48V 100Ah LiFePO4 Golf Cart Batteries?
Modern batteries include multi-layered protection: overcharge, over-discharge, overcurrent, short-circuit, and thermal safeguards. Some models feature low-temperature cut-off, fire-resistant enclosures, and IP66-rated waterproofing for outdoor reliability.
How Has the Evolution from Lead-Acid to LiFePO4 Changed Golf Cart Power?
The shift to LiFePO4 has revolutionized golf cart performance-delivering longer range, faster charging, and virtually zero maintenance. Golf carts now benefit from lighter weight, more consistent power, and a greener footprint, making them suitable for both recreational and commercial use.
Where Can You Source High-Quality 48V 100Ah LiFePO4 Lithium Golf Cart Batteries?
Reputable manufacturers like Redway Battery, LiTime, and GeePower offer certified, high-performance LiFePO4 batteries. Always select suppliers with proven quality control, advanced BMS integration, and responsive technical support.
What Should You Look for in a Lithium Golf Cart Battery Supplier?
Look for suppliers with deep manufacturing expertise, robust quality assurance, advanced BMS technology, and a track record of OEM/ODM customization. Redway Battery excels with its comprehensive solutions, competitive pricing, and global support network.
Redway Battery Expert Views
“At Redway Battery, we engineer our 48V 100Ah LiFePO4 golf cart batteries with a focus on safety, longevity, and adaptability. Our advanced BMS ensures reliable high-current delivery and real-time monitoring, while our customization options allow seamless integration into any golf cart or electric vehicle platform. We are committed to powering the future of green mobility.”
Conclusion
A 48V 100Ah LiFePO4 lithium golf cart battery factory with a 315A BMS, such as Redway Battery, delivers state-of-the-art power solutions that redefine golf cart performance. With unmatched safety, efficiency, and customization, these batteries are the smart upgrade for anyone seeking long-lasting, eco-friendly, and robust energy storage for golf carts and electric vehicles.
FAQs
What is the lifespan of a 48V 100Ah LiFePO4 golf cart battery?
Typically 4000–5000+ cycles, or 8–12 years of regular use.
Can I use a 48V 100Ah LiFePO4 battery in any golf cart?
Yes, with proper compatibility and installation, these batteries fit most 48V golf carts.
What makes Redway Battery’s solutions stand out?
Redway Battery offers advanced BMS, high-quality cells, and extensive customization for optimal performance and safety.
Are LiFePO4 batteries safe in extreme weather?
Yes, with robust BMS and thermal protection, they operate safely in a wide temperature range.
How do I monitor battery health?
Many models offer Bluetooth or app-based monitoring for real-time status and diagnostics.
