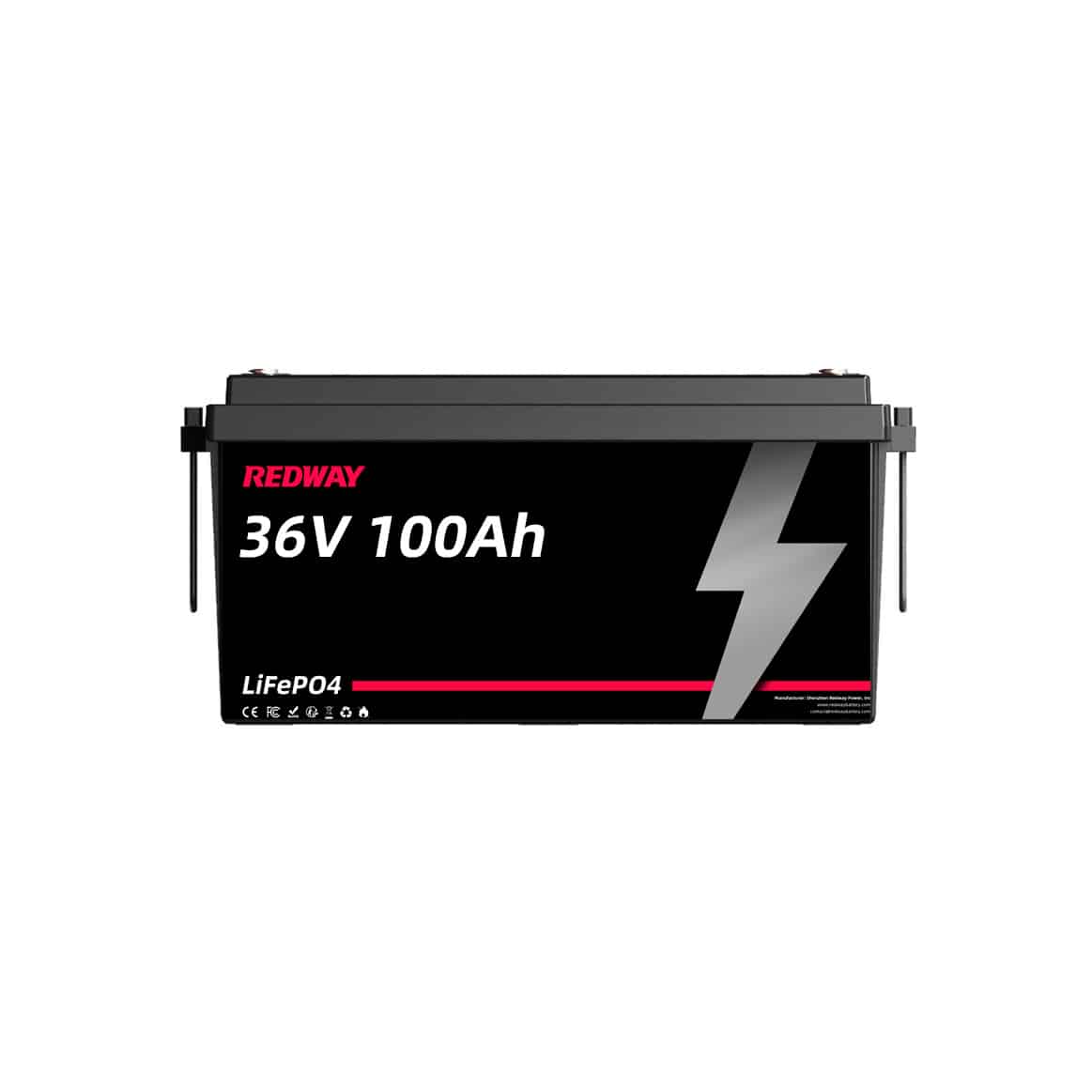

Redway 36V 100Ah Lithium Iron Phosphate (LiFePO4) Battery is the most powerful 36V battery we carry. Extended power and more than 14 hours of use on 36V Marine Trolling Motor.* This is the perfect fit for pro fishermen. Also great for 36V golf carts, solar, warehouse working vehicles and forklifts. One single module 36V100AH weights less and occupies less space than any three 12v100AH lithium batteries connected in series. It is better to use the right voltage battery for your application than connecting lithium batteries in series. Parallel connection to increase capacity is fine. Buy it now!
Redway 36V 100Ah battery is built with Redway Grade-A LiFePO4 cells. 2,000+ recharge cycles (roughly 5 year lifespan at daily use) vs. 500 for other lithium batteries or lead acid. Optimal performance down to minus 20 degrees Fahrenheit (for winter warriors). Plus twice the power of lead-acid batteries at half the weight.
Get a Quick Quote with Few Clicks!
Technical Data
Welcome to Redway Battery! OEM Factory Wholesale Price, Fast Delivery. (Click to Get a Quick Quote!)
Parameter
Value
Cell Type
LiFePO4
Nominal Capacity
100 Ah
Nominal Voltage
38.4 V
Nominal Energy
3840 Wh
DOD60%
8000 cycles
Maximum Charge Current
100 A
Maximum Discharge Current
100 A (Peak 200A for 5sec)
Dimension (LWH)
520 x 269 x 220 mm
(20.47×10.59×8.66 inch)
Charge Voltage/ Charge Cut-off Voltage
43.2 +- 0.2 V
Discharge Cut-off Voltage
30 V
Terminal
M8
Operating Temperature and Humidity Range
Charge: 0°C -60°C Discharge: -20°C -65°C
Max. Parallel Connection
4
Protection Level
IP66
Optional Functions
With Bluetooth/ Communication/ Heating / Active Balance / Switch / LED Screen
