Does BMS Limit Charging Voltage? Battery Management Systems in Charging Lithium Batteries

Does BMS Limit Charging Voltage? Battery Management Systems in Charging Lithium Batteries
Yes, BMS (Battery Management System) can limit the charging voltage of a battery. When the charging voltage approaches the set limit, the BMS can request a gradual reduction of charging current or terminate the charging process altogether to prevent overcharging and protect the battery.
  1. BMS and Charging Voltage Limit:
    BMS plays a crucial role in monitoring and controlling the charging process of a battery. It ensures that the battery operates within safe voltage limits by limiting the charging voltage. When the charging voltage approaches the set limit, the BMS can take actions to prevent overcharging and protect the battery.
  2. Proximity-Based Decisions:
    The BMS is designed to make decisions based on the proximity to the voltage thresholds. For example, when the charging voltage is close to the upper limit, the BMS may request a gradual reduction of the charging current to prevent exceeding the limit. It ensures that the battery is charged safely and optimally.
  3. Protection and Safety:
    By limiting the charging voltage, the BMS safeguards the battery from potential risks such as overcharging. Overcharging can lead to battery damage, reduced capacity, and even safety hazards. The BMS ensures that the charging process is controlled and optimized for the longevity and performance of the battery.

Charging Voltage Limit of Battery Management Systems (BMS):

The charging voltage limit of a Battery Management System (BMS) can vary, but for example, Victron Energy suggests setting the battery charge limit between 13.0V and 15.3V, with a typical value of 14.2V for their Lithium Battery Smart. Once the charging voltage reaches this limit, the BMS deactivates the charging process to prevent overcharging and protect the battery.
  1. Recommended Charging Voltage Range:
    The charging voltage limit of a BMS can vary depending on the specific system and battery type. For instance, Victron Energy suggests setting the battery charge limit between 13.0V and 15.3V, with a typical value of 14.2V for their Lithium Battery Smart. This range ensures that the battery is charged optimally without the risk of overcharging.
  2. Preventing Overcharging:
    The BMS plays a crucial role in preventing overcharging by monitoring the charging voltage. When the voltage reaches the set limit, the BMS deactivates the charging process. This protective measure ensures that the battery is not subjected to excessive voltage, which can lead to damage and reduced lifespan.
  3. Battery Protection and Longevity:
    By limiting the charging voltage within the recommended range, the BMS safeguards the battery from potential risks. Overcharging can cause thermal runaway, reduced capacity, and safety hazards. The BMS acts as a safeguard, ensuring that the battery is charged safely and optimizing its performance and longevity.

Providing Overvoltage: Is it Possible?

Overvoltage refers to a situation where the voltage exceeds the design limit of a circuit or circuit element. It can be caused by factors such as poor regulation of a power source, oversized transformers, and wiring errors. Overvoltage can be hazardous and potentially damage electrical devices. Protecting against overvoltage is crucial to ensure the safe operation of electrical equipment.
  1. Understanding Overvoltage:
    Overvoltage occurs when the voltage exceeds the design limit of a circuit or circuit element. It can be caused by various factors such as poor regulation of a power source, oversized transformers, uneven circuit loading, wiring errors, and insulation failures. Overvoltage can pose a risk to electrical devices and the overall electrical system.
  2. Potential Effects of Overvoltage:
    When subjected to overvoltage, electrical devices can experience significant damage. The excess voltage can lead to the breakdown of insulation, component failure, or even electrical fires. Overvoltage can impact the performance, reliability, and lifespan of electrical equipment, making it crucial to address and protect against.
  3. Importance of Protection Measures:
    To safeguard electrical devices from overvoltage, protective measures such as surge protectors, voltage regulators, and circuit breakers can be employed. These devices help limit the voltage to safe levels and prevent potential damage. Regular inspections, maintenance, and adherence to electrical safety standards are also essential in mitigating the risks associated with overvoltage.

Charging Voltage Limit of Battery Management Systems (BMS):

Charging Lithium Batteries: Upper Limit of 4.2V:

The upper limit for charging lithium batteries is typically set at 4.2V per cell. Exceeding this voltage limit can lead to a shortened battery life.
  1. Charging Lithium Batteries:
    When charging lithium batteries, it is crucial to follow certain guidelines to ensure their safe and optimal operation. One critical aspect is the upper voltage limit during the charging process.
  2. Upper Voltage Limit of 4.2V:
    The upper limit for charging lithium batteries is typically set at 4.2V per cell. This limit is carefully determined to balance the charging process and prevent potential issues such as overcharging. Exceeding this voltage limit can have detrimental effects on the battery’s lifespan and performance.
  3. Impact on Battery Life:
    Raising the voltage above the recommended 4.2V per cell can lead to a shortened battery life. It can cause accelerated degradation of the battery’s internal components and reduce its overall capacity. Adhering to the specified voltage limit is essential for preserving the longevity and maximizing the performance of lithium batteries.

Current Limiting and Charging Rates:

Lithium-ion batteries typically have a maximum charge current of 1C or less, ensuring that the charging current does not exceed the battery’s capacity. For example, a 1Ah battery should be charged at a maximum current of 1A. Laptop batteries often have a maximum charge rate of 0.9C, indicating that the charging current should be 90% of the battery’s capacity.
  1. Maximum Charge Current:
    Lithium-ion batteries have a maximum charge current of 1C or less. The “C” represents the battery’s capacity in ampere-hours (Ah). It is crucial to ensure that the charging current does not exceed this limit to prevent potential damage to the battery and ensure safe charging.
  2. Charging Rate Calculation:
    To determine the appropriate charging current, you can multiply the battery’s capacity by the maximum charge rate. For example, a 1Ah battery should be charged at a maximum current of 1A. This calculation helps optimize the charging process and ensures that the battery is charged within its safe limits.
  3. Laptop Battery Charge Rate:
    Laptop batteries often have a maximum charge rate of 0.9C. This means that the charging current should be 90% of the battery’s capacity. Adhering to this rate helps maintain the battery’s health and prolong its lifespan.

Dangers of Supplying High Voltage Directly to the Battery:

Supplying high voltage directly to a battery can be hazardous, leading to risks such as overheating and fires. It is important to use a regulated power supply that ensures the voltage remains within safe limits, adding an extra layer of safety and preventing potential damage to the battery and surrounding components.
  1. Hazards of Excessive Voltage:
    Supplying high voltage directly to a battery can result in various hazards. One significant risk is overheating, which can occur when the voltage exceeds the battery’s safe operating limits. Overheating can lead to damage to the battery and surrounding components, compromising their performance and potentially causing failures.
  2. Potential Fires and Explosions:
    In extreme cases, supplying high voltage directly to a battery can even lead to fires or explosions. The excessive voltage can cause thermal runaway, where the battery’s internal temperature increases rapidly, leading to a breakdown of its chemical components. This can result in the release of flammable gases and a potential ignition source, leading to fires or explosions.
  3. Importance of Regulated Power Supply:
    To mitigate these dangers, it is crucial to use a regulated power supply when charging or supplying voltage to a battery. A regulated power supply ensures that the voltage remains within safe limits, preventing excessive voltage from reaching the battery. This adds an extra layer of safety and helps protect the battery and surrounding components from potential damage.

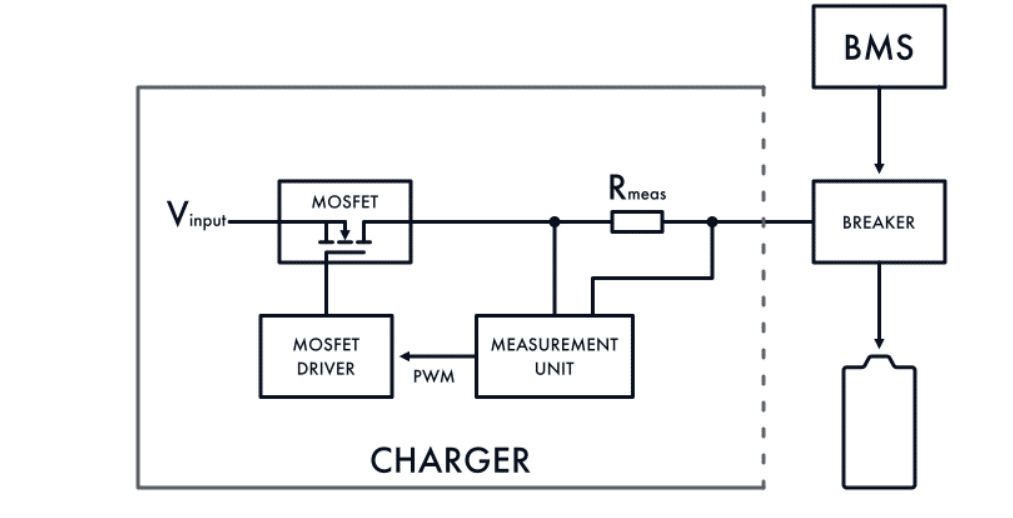

BMS vs Charger: Their Roles in the Charging Process:

The charger converts AC to DC and controls the charging process, while the BMS manages and protects the battery during charging and discharging, ensuring its longevity and safety.
  1. Charger’s Role:
    The charger plays a crucial role in the charging process by converting the incoming power from AC (Alternating Current) to DC (Direct Current) and supplying it to the battery. It measures the voltage and controls the charging process to ensure the battery is charged safely and efficiently. The charger’s primary function is to provide the correct charging voltage and current based on the battery’s specifications.
  2. BMS’s Role:
    The BMS, or Battery Management System, is responsible for managing and protecting the battery during the charging and discharging process. It acts as the guardian of the battery, monitoring various parameters such as voltage, current, and temperature. The BMS ensures that the battery operates within safe limits and prevents overcharging, over-discharging, and overheating. It also helps maintain the balance between individual cells or modules within the battery pack, optimizing its performance and lifespan.
  3. Collaboration between Charger and BMS:
    The charger and BMS work together to ensure the safe and efficient charging of batteries. The charger provides the necessary power while the BMS monitors and controls the charging process, safeguarding the battery from potential damage or hazards. This collaboration between the charger and BMS helps maximize the battery’s longevity, performance, and overall safety.

Steps to Ensure Safe Charging:

To ensure safe charging of lithium batteries, avoid charging near flammable materials, control temperature and sunlight exposure, and never cover the batteries during the charging process. These precautions help prevent fire hazards and maintain the integrity of the batteries.
  1. Avoid Flammable Materials:
    One crucial step is to never charge lithium batteries near flammable materials or objects. This is because the charging process can generate heat, and any contact with flammable substances can pose a significant fire hazard. By keeping the charging area clear of flammable materials, you minimize the risk of accidents and ensure the safety of the charging process.
  2. Control Temperature and Sunlight:
    It is important to be mindful of the temperature and sunlight exposure when charging lithium batteries. High temperatures can adversely affect the battery’s performance and even lead to damage. Therefore, it is advisable not to charge lithium batteries in places where high temperatures or direct sunlight are expected. By choosing a cool and well-ventilated location, you can maintain the battery’s optimal operating conditions and prevent potential safety issues.
  3. Do Not Cover the Batteries:
    During the charging process, it is crucial not to cover lithium batteries. The charging process generates heat as energy is transferred to the battery. If the batteries are covered, the heat may become trapped, leading to potential overheating and safety risks. By leaving the batteries uncovered, you allow for proper heat dissipation and minimize the chances of thermal issues.

Conclusion:

Battery Management Systems play a crucial role in ensuring the safe and efficient charging of lithium batteries. While the BMS itself may not limit the charging voltage, it serves as a vital safety mechanism to protect the battery from overcharging and unsafe conditions. It is essential to follow the recommended charging voltage limits, use regulated charging circuits, and understand the roles of the BMS and charger in the charging process to ensure the longevity and safety of lithium batteries.
