March 13, 2024 | Redway Tech

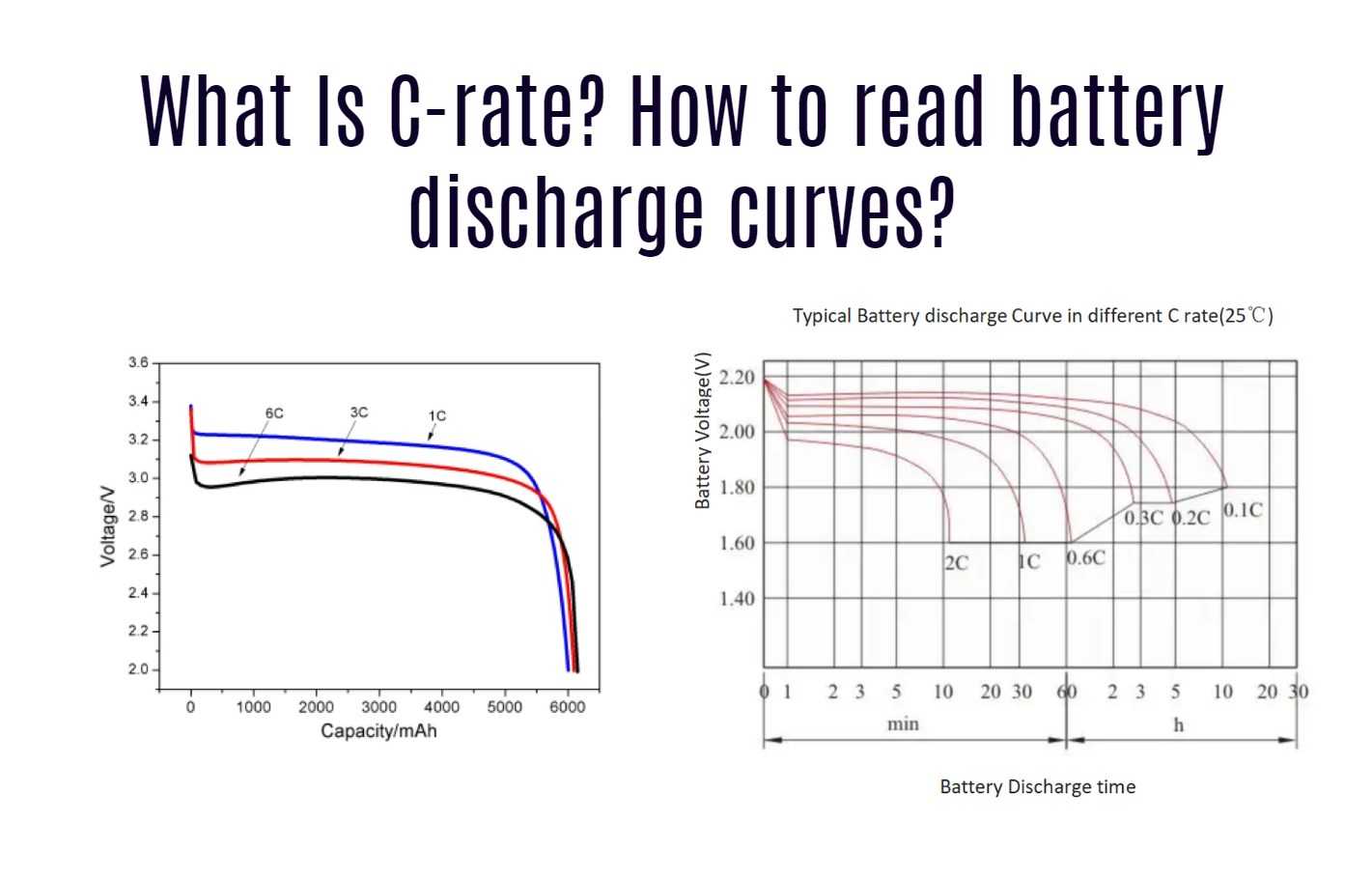

What Is C-rate? How to read battery discharge curves?

Info

March 13, 2024 By Redway 0 Comments

What Is C-rate? How to Read Battery Discharge Curves

Understanding battery performance is crucial for optimizing usage and extending lifespan. Two important concepts in this context are C-rate and battery discharge curves. This guide explains what C-rate means and how to interpret battery discharge curves effectively.

What Is C-rate?

The C-rate is a measure of the charge or discharge current of a battery relative to its capacity. It indicates how quickly a battery can be charged or discharged.

Definition: A C-rate of 1C means that the battery will be fully charged or discharged in one hour. For example, a 2000mAh battery at 1C would be charged or discharged at 2000mA (2A).
Higher C-rates: If you discharge a battery at 2C, it will be fully discharged in half an hour (4000mA for a 2000mAh battery). Conversely, charging at 0.5C would take two hours.
Impact on Capacity: Charging or discharging at higher C-rates can reduce the effective capacity of the battery and potentially damage it if the rate exceeds the manufacturer‘s specifications.

How to Read Battery Discharge Curves

Battery discharge curves provide valuable insights into how a battery performs under different conditions. These curves plot voltage against time, capacity, or state of charge (SoC).

Key Components of Discharge Curves

Voltage Plateau:
- Initially, the voltage remains relatively stable during the early stages of discharge. This plateau indicates that the battery can deliver consistent power.
Gradual Decline:
- After the plateau, the voltage begins to decline gradually. The slope of this decline can indicate the battery’s health and efficiency.
End-of-Discharge Voltage:
- As the battery approaches depletion, voltage drops rapidly. This point is critical as discharging below this level can damage the battery.

Interpreting Discharge Curves

Flat vs. Sloping Curves:
- A flat discharge curve indicates stable performance over time, making it easier to estimate remaining capacity based on voltage.
- A steeply sloping curve suggests that voltage drops quickly, complicating capacity estimation.
Capacity Loss with Higher C-rates:
- Discharge curves reveal that as discharge rates increase (e.g., from 1C to 2C), the effective capacity often decreases due to increased internal resistance and heat generation.

Example Analysis

When analyzing a discharge curve:

Look for the initial flat region; this indicates stable output.
Observe how quickly the voltage drops after the plateau; a rapid drop signifies nearing depletion.
Compare curves from different batteries; variations can indicate differences in chemistry, design, or age.

Latest Trends in Battery Technology

Smart Battery Management Systems (BMS): New technologies are being developed that allow real-time monitoring of discharge curves and C-rate effects, enabling better management of battery health.
Sustainability Initiatives: Manufacturers are focusing on eco-friendly production methods and longer-lasting batteries to reduce waste.
Advanced Materials: Research is ongoing into new materials that enhance performance and safety, leading to improved discharge characteristics.

Redway Expert Comment

“As experts in lithium LiFePO4 technology, we emphasize that understanding C-rate and discharge curves is essential for optimizing battery performance. Properly interpreting these metrics allows users to make informed decisions about charging practices and application suitability.”

Conclusion

In summary, understanding C-rate and how to read battery discharge curves is vital for anyone working with batteries. By grasping these concepts, you can improve your ability to manage battery performance effectively and extend their lifespan through informed usage practices.

Lithium-Ion Batteries Alternatives, FAQs. server rack battery 48v 100ah 51.2v 100ah ess factory

Info

March 13, 2024 By Redway 0 Comments

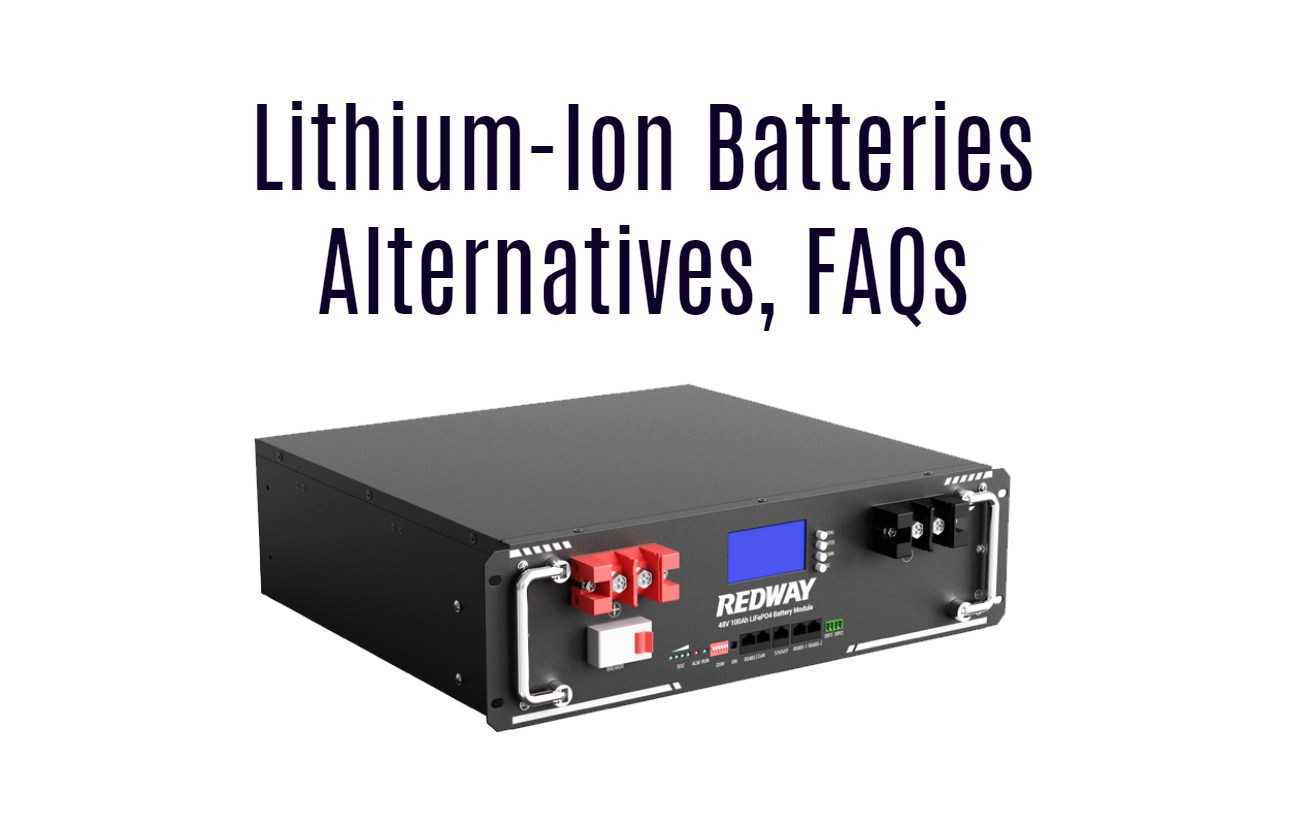

Lithium-Ion Batteries Alternatives, FAQs

As the demand for sustainable and efficient energy storage solutions grows, many are exploring alternatives to traditional lithium-ion batteries. This guide provides an overview of various alternatives, their benefits, and common questions regarding these technologies.

Key Alternatives to Lithium-Ion Batteries

Sodium-Ion Batteries
- Overview: Sodium-ion batteries use sodium ions instead of lithium ions as charge carriers. Sodium is abundant and inexpensive, making it a promising alternative.
- Advantages: Lower cost due to the availability of sodium, reduced environmental impact, and potential for similar performance to lithium-ion batteries.
- Challenges: Currently, sodium-ion batteries have a shorter cycle life compared to lithium-ion batteries, typically around 2000-3000 cycles.
Lithium-Sulfur Batteries
- Overview: These batteries replace the conventional cathode material with sulfur, offering higher energy density.
- Advantages: Potentially nine times the energy density of lithium-ion batteries and lower material costs.
- Challenges: They suffer from rapid degradation and short cycle life, often only lasting about 50 cycles in early prototypes.
Solid-State Batteries
- Overview: Solid-state batteries utilize a solid electrolyte instead of a liquid one, enhancing safety and energy density.
- Advantages: Improved safety due to non-flammability, higher energy density, and longer lifespan (up to 6000 cycles).
- Challenges: Manufacturing complexities and higher costs currently limit their widespread adoption.
Aqueous Magnesium Batteries
- Overview: These batteries use magnesium ions in an aqueous electrolyte, providing a safer alternative to lithium-ion technology.
- Advantages: Non-toxic materials and high capacity due to magnesium’s +2 charge.
- Challenges: Issues with moisture sensitivity and passivation need to be addressed for practical applications.
Hydrogen Fuel Cells
- Overview: While not a direct battery alternative, hydrogen fuel cells generate electricity through chemical reactions between hydrogen and oxygen.
- Advantages: Clean energy production with water as the only byproduct.
- Challenges: Infrastructure for hydrogen fueling is limited, and production costs remain high.
Flow Batteries
- Overview: Flow batteries store energy in liquid electrolytes that can be pumped through a cell stack.
- Advantages: Scalability for large-scale storage applications and long cycle life.
- Challenges: Lower energy density compared to lithium-ion batteries and complex systems that can be costly.

FAQs About Lithium-Ion Battery Alternatives

1. Are sodium-ion batteries ready for commercial use?

While sodium-ion technology is advancing rapidly, it is not yet widely adopted for consumer electronics or electric vehicles but shows promise for grid storage applications.

2. How do solid-state batteries compare in safety?

Solid-state batteries are generally safer than lithium-ion batteries because they eliminate the risk of leakage and combustion associated with liquid electrolytes.

3. What are the environmental benefits of using alternatives?

Many alternatives utilize more abundant materials like sodium or magnesium, reducing reliance on lithium mining, which has significant environmental impacts.

4. Can lithium-sulfur batteries replace lithium-ion in electric vehicles?

Currently, lithium-sulfur batteries face challenges with cycle life and stability that prevent them from being viable replacements in electric vehicles; however, ongoing research aims to improve their performance.

5. What is the future outlook for these alternatives?

As technology advances and research continues, several alternatives may become commercially viable, providing diverse options for energy storage that complement or compete with lithium-ion solutions.

Latest Developments in Battery Technology

Researchers are making strides in improving the cycle life and efficiency of sodium-ion and solid-state batteries.
Companies are investing heavily in developing scalable production methods for alternative battery technologies.
The push for sustainable energy solutions is driving innovation in battery recycling processes to reduce environmental impact.

Redway Expert Comment

In our experience at Redway Battery, exploring alternatives to lithium-ion technology is essential for addressing future energy storage needs sustainably. Each alternative has unique advantages and challenges that must be considered based on specific applications. As research progresses, we anticipate significant advancements that will enhance the viability of these technologies.” In conclusion, while lithium-ion batteries currently dominate the market, several promising alternatives are emerging that could reshape the future of energy storage. By understanding these options and their implications, consumers and industries can make informed decisions about sustainable energy solutions.

Battery Energy Storage Technology FAQs. 48v 100ah server rack battery lifepo4 lfp factory snmp tacp

Info

March 13, 2024 By Redway 0 Comments

Battery Energy Storage Technology FAQs

Battery energy storage systems (BESS) are becoming increasingly important in managing energy supply and demand, particularly in the context of renewable energy integration. Here are some frequently asked questions about battery energy storage technology:

1. What is a Battery Energy Storage System (BESS)?

A Battery Energy Storage System (BESS) is a technology that stores electrical energy for later use. It can charge from the grid or renewable sources like solar panels and discharge energy when needed, helping to balance supply and demand.

2. How do battery storage systems work?

Battery storage systems operate by converting electricity into chemical energy during charging. When discharging, this chemical energy is converted back into electricity. The systems often include advanced software that optimizes charging and discharging based on demand, tariffs, and other factors.

3. What types of batteries are commonly used in BESS?

The most commonly used batteries in BESS are lithium-ion batteries due to their high energy density, efficiency, and longevity. Other types include lead-acid batteries, sodium-sulfur batteries, and flow batteries, each with unique characteristics suitable for different applications.

4. What are the advantages of battery storage systems?

Battery storage systems offer numerous benefits:

Energy Independence: They allow users to store energy generated from renewable sources for later use.
Cost Savings: By storing low-cost energy and using it during peak demand times, users can reduce electricity bills.
Grid Stability: BESS enhances grid reliability by providing backup power during outages and stabilizing fluctuations in supply and demand.

5. What is the lifespan of battery energy storage systems?

Most BESS have a lifespan ranging from 5 to 15 years, depending on the technology used and the conditions of operation. Regular maintenance can help extend their operational life.

6. How does BESS support the grid?

BESS supports the grid by providing stored energy during peak demand periods or emergencies, thus enhancing reliability. They can also help integrate renewable energy by storing excess generation for use when production falls short.

7. Can battery storage work with all fuel sources?

Yes, battery storage systems are technology- and fuel-neutral. They can be charged using electricity from renewable sources like solar or wind, as well as from conventional sources such as natural gas or coal.

8. How does battery storage reduce energy costs?

By storing energy when prices are low and using it during peak pricing periods, battery storage systems help users avoid higher charges, leading to significant cost savings over time.

9. What safety measures are in place for BESS?

Battery management systems (BMS) monitor the health of batteries, ensuring safe operation by tracking parameters such as temperature, state of charge, and voltage levels. These systems can prevent overheating and mitigate risks associated with battery failures.

10. Where are these batteries typically located?

BESS can be found in various settings, including residential homes, commercial buildings, and utility-scale installations. They are often placed near points of high electricity demand or renewable generation sources to optimize efficiency.These FAQs provide a foundational understanding of battery energy storage technology and its role in modern energy management solutions. As technology continues to evolve, BESS will play an increasingly vital role in creating a sustainable energy future.

Battery Cell Thermal Runaway FAQs, ncm fire, nmc fire, lithium battery fire

Info

March 13, 2024 By Redway 0 Comments

Battery Cell Thermal Runaway FAQs

As energy storage technologies evolve, understanding the differences between batteries and supercapacitors becomes increasingly important. Both serve critical roles in various applications, but they operate on different principles and have distinct characteristics. Here are some frequently asked questions to clarify their differences.

1. What is the primary difference between batteries and supercapacitors?

Batteries store energy chemically through electrochemical reactions, while supercapacitors store energy electrostatically by accumulating charges at the electrode surfaces. This fundamental difference leads to variations in energy density, power density, and discharge characteristics.

2. How do energy densities compare?

Batteries typically have a much higher energy density (measured in Wh/L) than supercapacitors. For example, lithium-ion batteries can achieve energy densities of up to 650 Wh/L, whereas supercapacitors usually reach around 10 Wh/L. This means batteries are better suited for applications requiring long-term energy storage.

3. What about power density?

Supercapacitors excel in power density (measured in W/L), allowing them to deliver energy quickly—up to ten times faster than batteries. This makes them ideal for applications that require rapid bursts of power, such as regenerative braking systems in electric vehicles.

4. What are the self-discharge rates for each technology?

Supercapacitors have a higher self-discharge rate, losing around 30% of their stored energy within a month, compared to batteries, which typically lose about 10% over the same period. This makes batteries more suitable for applications requiring long-term energy retention.

5. How do charge and discharge cycles differ?

Supercapacitors can endure over 1 million charge/discharge cycles without significant degradation, while traditional batteries generally last between 2,000 to 3,000 cycles before performance declines. This longevity makes supercapacitors advantageous for applications with frequent cycling.

6. Can supercapacitors replace batteries?

While supercapacitors offer unique advantages, they cannot fully replace batteries due to their lower energy density. Instead, they are often used in conjunction with batteries to optimize performance—batteries provide sustained energy output while supercapacitors handle quick bursts of power.

7. What are the environmental impacts of each technology?

Batteries, particularly lithium-ion variants, raise environmental concerns due to mining practices for materials like lithium, nickel, and cobalt. In contrast, supercapacitors can utilize more sustainable materials such as activated carbon from biomass sources, making them potentially more environmentally friendly.

8. What are the best applications for each?

Batteries: Ideal for applications requiring high energy storage over extended periods, such as electric vehicles, renewable energy systems, and portable electronics.
Supercapacitors: Best suited for applications needing rapid power delivery or frequent cycling, such as electric buses with regenerative braking or backup power systems.

9. Are there any recent advancements in these technologies?

Recent developments include improvements in supercapacitor materials that enhance their energy density and efficiency while reducing costs. Additionally, research continues into hybrid systems that combine both technologies for optimized performance across various applications.

10. How should I choose between a battery and a supercapacitor?

The choice depends on your specific application needs:

If you require long-term energy storage with gradual discharge, opt for a battery.
If your application demands quick bursts of power or frequent cycling, consider using a supercapacitor or a hybrid system combining both technologies.

Conclusion

Understanding the differences between batteries and supercapacitors is essential for selecting the right energy storage solution for your needs. While both technologies have their strengths and weaknesses, ongoing advancements continue to enhance their capabilities and applications in various fields.

Info

March 13, 2024 By Redway 0 Comments

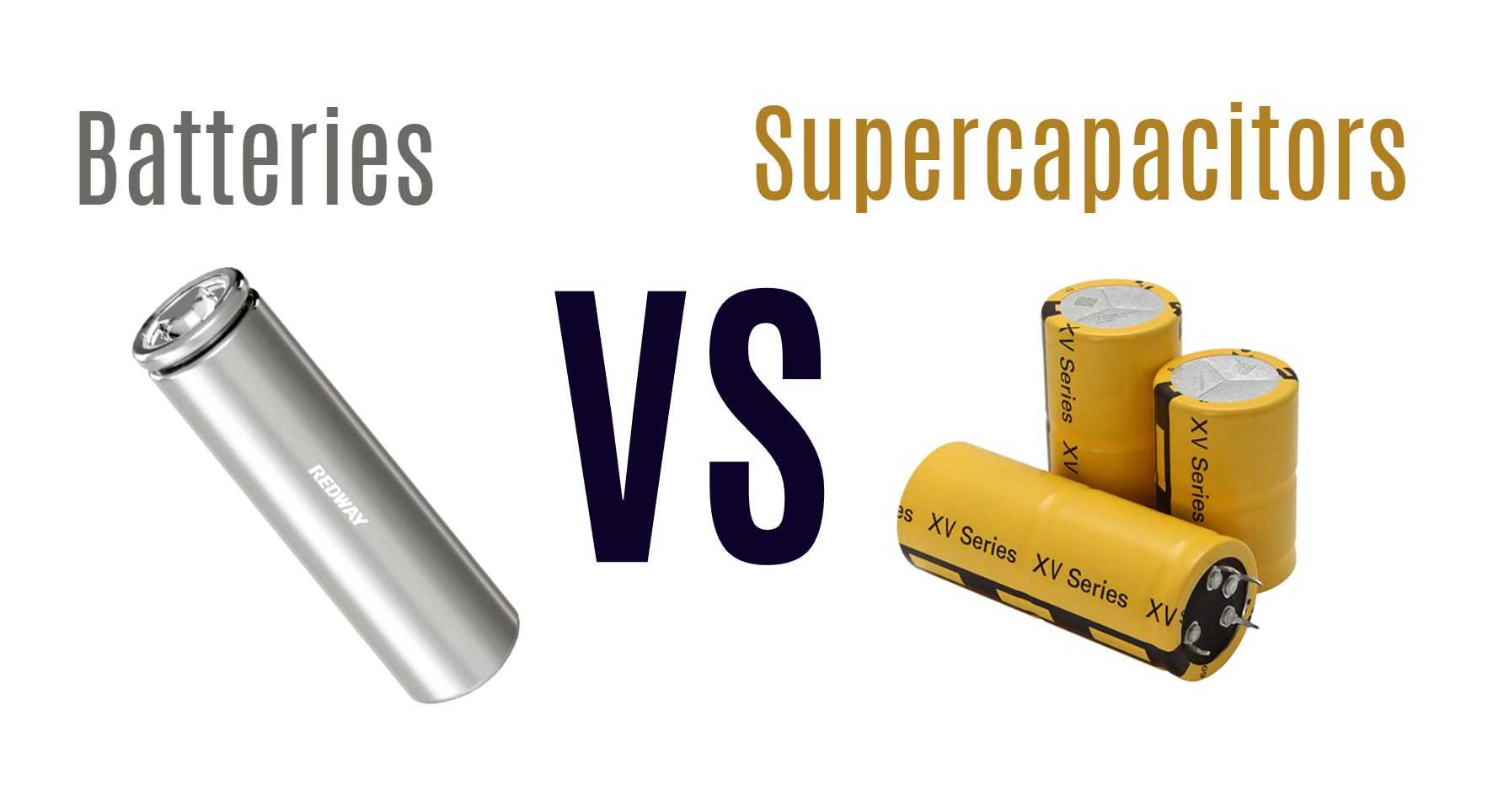

Batteries vs. Supercapacitors, FAQs

1. What is the primary difference between batteries and supercapacitors?

2. How do energy densities compare?

3. What about power density?

4. What are the self-discharge rates for each technology?

5. How do charge and discharge cycles differ?

6. Can supercapacitors replace batteries?

7. What are the environmental impacts of each technology?

8. What are the best applications for each?

Batteries: Ideal for applications requiring high energy storage over extended periods, such as electric vehicles, renewable energy systems, and portable electronics.
Supercapacitors: Best suited for applications needing rapid power delivery or frequent cycling, such as electric buses with regenerative braking or backup power systems.

9. Are there any recent advancements in these technologies?

10. How should I choose between a battery and a supercapacitor?

The choice depends on your specific application needs:

If you require long-term energy storage with gradual discharge, opt for a battery.
If your application demands quick bursts of power or frequent cycling, consider using a supercapacitor or a hybrid system combining both technologies.

Conclusion

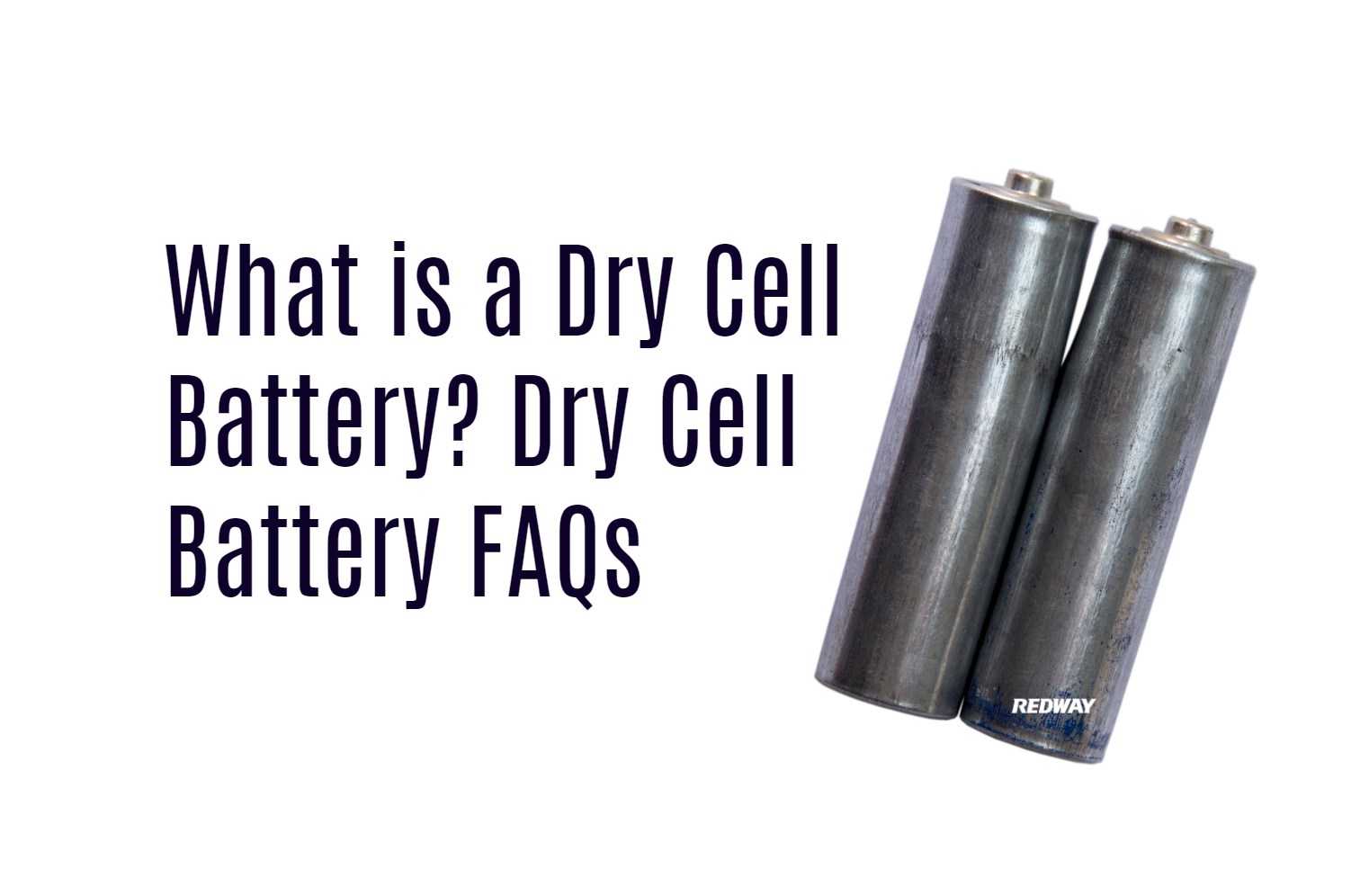

What is a Dry Cell Battery? Dry Cell Battery FAQs

Info

March 13, 2024 By Redway 0 Comments

What Is a Dry Cell Battery?

A dry cell battery is a portable electrochemical power source that uses a paste electrolyte instead of a liquid, making it leak-resistant and easy to handle. These batteries power everyday devices like flashlights and remote controls, offering reliable, safe energy in a compact form factor.

What Is a Dry Cell Battery and How Does It Work?

A dry cell battery converts chemical energy into electrical energy using a paste electrolyte instead of a liquid solution, allowing safer and more portable use.

Unlike wet cells containing liquid electrolytes prone to spilling, dry cells use moist conductive paste between electrodes housed in a sealed container. Inside, oxidation-reduction reactions generate a flow of electrons, producing electric current for devices. Common types include zinc-carbon and alkaline batteries, widely used in household electronics.

How Does a Dry Cell Battery Differ from a Wet Cell Battery?

Dry cells use paste electrolytes, making them safer and more portable; wet cells employ liquid electrolytes and are often larger and maintenance-intensive.

Wet cells are typically found in automotive batteries and industrial applications where higher power is needed but weight and leakage risks are less critical. Dry cells are preferred for consumer products due to compact size, reduced risk of acid spills, and long shelf life, making them a staple in modern portable electronics.

Which Types of Dry Cell Batteries Are Most Common?

Zinc-carbon and alkaline batteries dominate the dry cell market, with lithium dry cells gaining popularity for high-performance needs.

Zinc-Carbon: Low cost, moderate capacity, often found in inexpensive devices.
Alkaline: Higher energy density, longer shelf life, suitable for power-hungry tools.
Lithium Dry Cells: Advanced chemistry with superior energy, lightweight, and reliability—similar to technologies developed by Redway Battery for specialized applications.

Battery Type	Electrolyte Type	Voltage (V)	Typical Use Cases
Zinc-Carbon	Acidic paste	1.5	Remote controls, clocks
Alkaline	Potassium hydroxide paste	1.5	Cameras, toys, flashlights
Lithium Dry Cell	Organic or solid-state	3.0+	High-drain electronics, sensors

Why Are Dry Cell Batteries Preferred for Portable Electronics?

Dry cells are lightweight, leak-resistant, and maintenance-free, making them ideal for portable devices and consumer electronics.

Their sealed construction ensures they operate safely in any orientation without the risk of spills. The convenience of long shelf life and consistent voltage output enhances device reliability, critical for both everyday gadgets and industrial tools. Redway Battery’s advancements in lithium dry cells reflect this demand for durability combined with portability.

How Long Do Dry Cell Batteries Typically Last?

Battery lifespan varies by type and usage, with alkaline dry cells lasting much longer than zinc-carbon; lithium dry cells offer the longest runtimes.

Alkaline batteries can last up to several years in low-drain devices thanks to stable chemistry, while zinc-carbon batteries drain faster. Lithium dry cells, often used in medical or safety equipment, provide extended service life and better performance in extreme temperatures.

When Should Dry Cell Batteries Be Replaced?

Replace dry cell batteries when voltage drops below device requirements or leakage begins, typically visible by corrosion or reduced performance.

Frequent use in high-drain devices shortens battery life. Proper storage away from heat and humidity prolongs shelf life. Redway Battery recommends regular testing and timely replacement to avoid device damage from battery leakage.

Where Are Dry Cell Batteries Commonly Used?

Dry cell batteries power a vast array of household and professional tools including remote controls, flashlights, toys, portable radios, and emergency equipment.

Their versatility also extends to niche industrial uses, such as sensors and backup power sources, where stable, lightweight energy solutions are essential. OEM manufacturers like Redway Battery supply customized lithium dry cell batteries catering to these evolving market needs.

Can Dry Cell Batteries Be Recycled?

Yes, dry cell batteries can and should be recycled to recover metals like zinc, manganese, and lithium while reducing environmental harm.

Recycling facilities process spent dry cells safely, preventing hazardous leakage and conserving resources. Specialized lithium dry cells from suppliers like Redway Battery increasingly incorporate recyclable components to promote sustainability.

How Do Redway Battery Technologies Enhance Dry Cell Battery Performance?

Redway Battery integrates advanced lithium chemistry and precision manufacturing to produce dry cells with higher energy density, longer cycle life, and superior safety profiles.

Their OEM expertise in LiFePO4 batteries influences dry cell innovation by delivering reliable, eco-friendly power solutions for forklifts, golf carts, and emerging electronic applications, setting benchmarks for durability and performance.

Redway Expert Views

“Dry cell batteries remain foundational to portable electronics, but the future lies in combining durability with energy efficiency and safety. At Redway Battery, we apply over a decade of lithium battery expertise to upgrade dry cell performance—ensuring products meet rigorous market expectations. This shift toward safer, longer-lasting dry cells is essential for both consumer convenience and sustainability, particularly as demand for robust, lightweight batteries expands in sectors such as telecom and solar energy storage.” – Redway Battery Technical Director

Conclusion

Dry cell batteries are indispensable power sources characterized by their paste electrolyte design, offering a safer and more portable alternative to wet cells. With a range of chemistries from zinc-carbon to advanced lithium dry cells, these batteries serve everyday devices reliably. Redway Battery’s cutting-edge lithium technology specifically enhances performance and safety, shaping the future of dry cell applications. Proper usage and recycling are crucial to maximizing their benefits while protecting the environment.

FAQs

Q1: Are all dry cell batteries non-spillable?
Yes, dry cells contain solid or paste electrolytes that prevent leakage and spills.

Q2: Are lithium dry cell batteries better than alkaline?
Lithium dry cells offer higher energy density and longer life but at a higher cost.

Q3: Can I use dry cell batteries in rechargeable devices?
Typically, dry cells like zinc-carbon and alkaline are non-rechargeable; lithium-ion versions may be rechargeable if specified.

Q4: How should I store dry cell batteries?
Store in cool, dry places, away from metal objects to prevent short circuits and extend shelf life.

Q5: Does Redway Battery manufacture dry cell batteries?
Redway Battery specializes in lithium battery manufacturing and supplies advanced dry cell solutions in lithium chemistry for various applications.

What Is a Battery Isolator? Battery Isolator FAQs

Info

March 13, 2024 By Redway 0 Comments

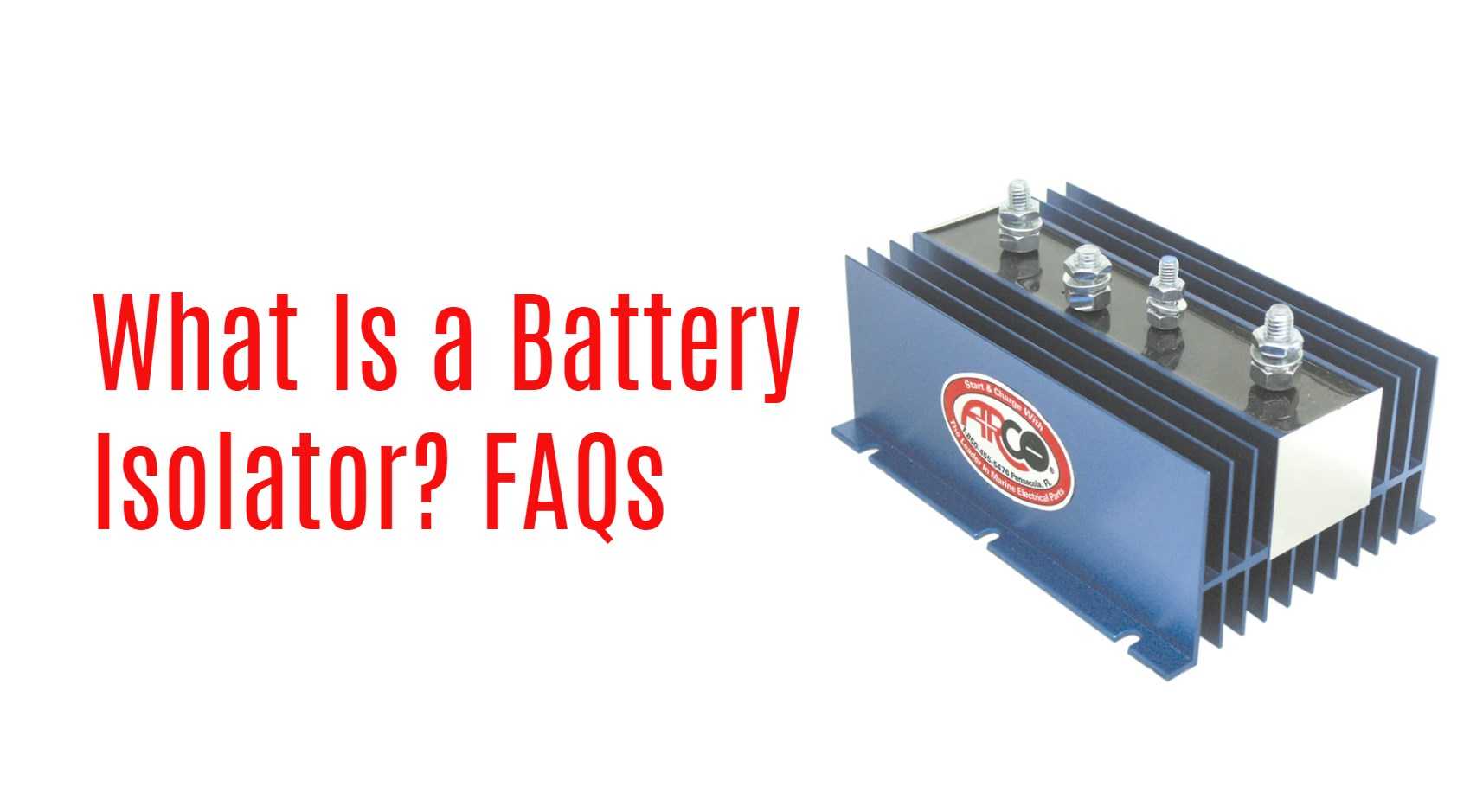

What Is a Battery Isolator? Battery Isolator FAQs

A battery isolator is an essential electrical device designed to manage multiple batteries within a system, ensuring that each battery can charge and discharge independently without depleting one another. This functionality is particularly crucial in applications such as recreational vehicles (RVs), boats, and vehicles with auxiliary power needs.

What Is a Battery Isolator?

A battery isolator allows for the simultaneous charging of multiple batteries from a single power source, such as an alternator, while preventing the batteries from discharging into one another. This separation is vital for maintaining the charge of the starting battery, especially when auxiliary batteries are used for powering additional devices like lights, sound systems, or navigational equipment.

How Does a Battery Isolator Work?

Battery isolators can be based on different technologies:

Diode-Based Isolators: Use semiconductor diodes to allow current to flow in one direction only, preventing backflow between batteries. However, they introduce a voltage drop that can affect charging efficiency.
Relay-Based Isolators: Utilize solenoids or electromechanical relays to connect or disconnect batteries based on voltage levels. When the engine is running, the relay connects both batteries for charging; when off, it isolates them.
Smart Isolators: These devices monitor battery voltages and intelligently manage the connection and disconnection of batteries to optimize charging and discharging cycles.

Advantages of Using a Battery Isolator

Prevents Over-Discharge: Ensures that the starting battery retains enough charge to start the engine, even if auxiliary devices drain the secondary battery.
Extends Battery Life: By managing charge cycles effectively, isolators help prolong the lifespan of all batteries in the system.
Enhances Safety: Reduces the risk of electrical failures by preventing unintended discharges between batteries.

Common Uses of Battery Isolators

Battery isolators are widely used in various applications:

Recreational Vehicles (RVs): To separate house batteries from starting batteries while allowing both to charge from the vehicle’s alternator.
Marine Applications: To ensure that essential systems remain powered without draining the starting battery.
Utility Vehicles: In vehicles with high current loads, isolators help manage multiple battery banks effectively.

Battery Isolator FAQs

1. Can I use a battery isolator with different types of batteries?

Yes, but it’s essential to ensure compatibility. Mixing battery types (e.g., lead-acid with lithium) can lead to performance issues. Always consult manufacturer guidelines.

2. How do I know which type of battery isolator to choose?

The choice depends on your specific needs. Diode-based isolators are simpler but less efficient; relay-based models offer better performance but may require more complex installation.

3. Will using a battery isolator affect my charging speed?

Yes, especially with diode-based isolators due to voltage drop. Relay-based and smart isolators typically provide better charging efficiency.

4. Can I install a battery isolator myself?

Installation is possible for those with basic electrical knowledge, but it’s recommended to consult a professional for optimal performance and safety.

5. How do I maintain my battery isolator?

Regularly check connections for corrosion or wear and ensure that all components are functioning correctly. Periodic inspections can help prevent issues.

Latest News in Battery Technology

Recent advancements in smart battery management systems are enhancing the efficiency of battery isolators by providing real-time monitoring and control.
Manufacturers are focusing on developing more compact and efficient isolators that reduce installation complexity while improving performance.
The growing popularity of electric vehicles is driving innovation in multi-battery systems, leading to increased demand for reliable battery isolators.

Redway Expert Comment

In our experience at Redway Battery, understanding how battery isolators function is crucial for anyone managing multiple battery systems. They not only enhance safety but also improve overall system efficiency by ensuring that each battery operates optimally without draining one another. Choosing the right type of isolator based on your specific application can significantly impact performance.” In conclusion, a battery isolator is an invaluable component in managing multi-battery systems, providing safety and efficiency in various applications. By understanding their functionality and benefits, users can make informed decisions about their energy management needs.

Electrochemical Impedance Spectroscopy (EIS) FAQs

Info

March 13, 2024 By Redway 0 Comments

Electrochemical Impedance Spectroscopy (EIS) FAQs

Electrochemical Impedance Spectroscopy (EIS) is a powerful, non-destructive technique used to analyze the internal properties of batteries by applying an AC signal over a wide frequency range and measuring the cell’s response. EIS helps diagnose battery health, aging, and performance by modeling impedance versus frequency, offering critical insights for battery research and management.

What is Electrochemical Impedance Spectroscopy (EIS) and how does it work?

EIS is an electrochemical measurement method that applies a small AC voltage over a range of frequencies to a battery or electrochemical cell and measures the resulting current response. It determines a cell’s impedance spectrum, revealing resistive and capacitive elements that correspond to physical and chemical processes inside the battery.

By analyzing impedance at different frequencies, EIS isolates contributions from electrolyte resistance, solid electrolyte interphase (SEI) layers, charge transfer reactions, and diffusion phenomena, enabling precise diagnostics of battery condition.

EIS is widely used in lithium-ion battery research, including at Redway Battery, to facilitate real-time, non-invasive monitoring of battery State of Health (SOH) and performance optimization.

How is EIS data represented and interpreted in battery testing?

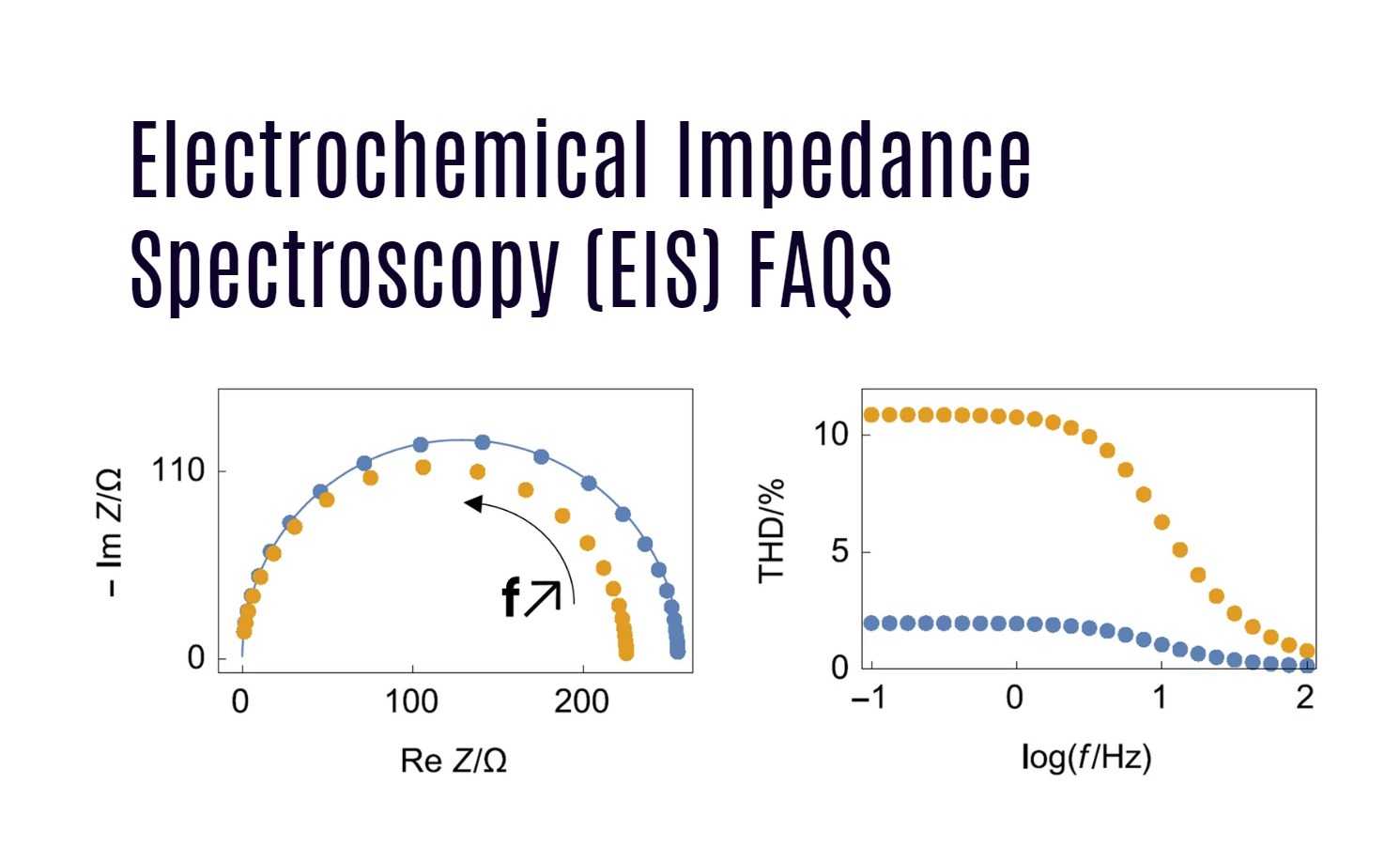

EIS results are typically plotted in Nyquist or Bode plots:

Nyquist plots show the imaginary part of impedance versus the real part, often creating semicircles and lines that correspond to different electrochemical processes.
Bode plots display impedance magnitude and phase angle across frequencies, helping interpret kinetics and resistances.

From these plots, battery parameters like bulk resistance (electrolyte resistance), charge transfer resistance, and double-layer capacitance are extracted by fitting the data to equivalent circuit models that represent physical battery components.

Proper interpretation requires advanced fitting algorithms and domain expertise, frequently integrated into Redway Battery’s quality control to ensure battery reliability.

Which battery parameters can EIS measure effectively?

EIS can measure multiple vital parameters such as:

Bulk resistance (R_b): Resistance of electrode materials, electrolyte, and separator.
Charge transfer resistance (R_ct): Resistance to electrochemical reactions at electrode interfaces.
Solid Electrolyte Interphase (SEI) layer resistance and capacitance: Indicators of surface film quality.
Diffusion coefficients: Reflect lithium-ion transport within electrodes.
State of Health (SOH): Changes in impedance correlate with battery aging and capacity loss.

These measurements provide crucial data for optimizing battery design, diagnosing degradation modes, and improving safety and longevity.

Why is EIS considered a non-destructive testing method for batteries?

EIS uses very small AC signals that do not significantly alter the battery’s chemical state or cause damage. It can be performed during battery idling or cycling without disassembly, providing insights into internal processes without degrading performance.

This non-invasive nature enables frequent monitoring and real-time assessment, a key advantage leveraged by Redway Battery in their manufacturing and quality assurance processes.

When is EIS testing most beneficial during a battery’s lifecycle?

EIS is valuable during all stages but especially:

In research & development for characterizing new battery chemistries and architectures.
During manufacturing and quality control to ensure parameter consistency and detect defects.
Throughout battery cycling to track aging, SOH, and performance degradation.
In predictive maintenance for electric vehicles and energy storage systems to prevent failures.

Redway Battery uses EIS regularly for R&D and production validation to maintain high-quality energy storage solutions.

How does temperature affect Electrochemical Impedance Spectroscopy measurements?

Temperature influences battery kinetics and impedance elements. Elevated temperatures typically reduce charge transfer resistance and diffusion impedance but can accelerate degradation. Low temperatures increase resistance and slow reactions.

EIS measurements should account for temperature variations to accurately interpret results. Redway Battery’s testing protocols integrate temperature control to ensure unbiased impedance analysis.

Can EIS be used for real-time battery management systems?

While EIS offers detailed diagnostics, traditional single-frequency or slow multi-frequency EIS techniques require significant measurement time. However, new rapid EIS methods using pseudo-random sequences and advanced signal processing are emerging, aiming to integrate EIS into real-time Battery Management Systems (BMS) for continuous SOH monitoring.

Redway Battery continuously explores such innovations, enhancing their battery packs with intelligent monitoring capabilities.

What equipment and software are required for EIS analysis?

EIS requires potentiostats or impedance analyzers capable of generating AC signals and measuring current response over a frequency range, from mHz to kHz. Data are then processed using specialized software for equivalent circuit fitting and parameter extraction.

Sophisticated EIS tools enable accurate battery modeling and insights, critical to Redway Battery’s development and customization of lithium battery packs.

Does EIS help in identifying specific battery failure mechanisms?

Yes. By analyzing impedance spectra, EIS can detect:

Increased SEI resistance indicating electrolyte decomposition.
Rising charge transfer resistance due to electrode surface degradation.
Changes in diffusion impedance revealing loss of active material.
Internal short circuits or connection faults shown by abnormal impedance features.

These insights allow targeted interventions and design improvements, extending battery lifespan.

Are there limitations or challenges in applying EIS to commercial battery systems?

Challenges include:

The need for accurate equivalent circuit models customized to each battery design.
Long measurement times limiting applicability in fast-paced environments.
Complexity in interpreting overlapping impedance features in aged or multi-material batteries.
Sensitivity to measurement conditions such as temperature and state-of-charge.

Research efforts including by Redway Battery aim to overcome these by developing faster EIS techniques and robust analytical models for practical applications.

Comparison Table: Key Electrochemical Impedance Components in Battery Analysis

Component	Frequency Range	Represents	Typical Impact on Battery
Bulk Resistance (R_b)	High frequencies	Electrolyte and separator	Increased internal resistance
SEI Layer Resistance (R_SEI)	Mid frequencies	Solid electrolyte interphase layer	Degradation indication
Charge Transfer Resistance (R_ct)	Mid to low frequencies	Electrochemical reaction kinetics	Slower kinetics, aging indicator
Diffusion Impedance (Warburg)	Low frequencies	Lithium-ion diffusion	Limited ion transport, capacity loss

Redway Expert Views

“At Redway Battery, Electrochemical Impedance Spectroscopy is an indispensable tool in our pursuit of high-performance, reliable lithium battery solutions. Leveraging EIS allows us to characterize internal battery phenomena accurately, identify degradation early, and support tailored engineering enhancements. This depth of insight ensures our battery packs meet rigorous safety and longevity standards demanded by electric vehicles, forklifts, and energy storage markets worldwide.” — Redway Battery Engineering Team

Conclusion

Electrochemical Impedance Spectroscopy is a sophisticated and non-destructive analytical technique critical for understanding battery internal processes, health, and aging. By dissecting complex electrochemical phenomena across frequencies, EIS provides invaluable diagnostics used in research, manufacturing, and real-time monitoring. Despite challenges in modeling and measurement speed, advancements continue to improve its practicality. Integrating EIS in battery management, as employed by industry leaders like Redway Battery, enhances performance, reliability, and safety in lithium battery technologies.

Frequently Asked Questions

Q1: Can EIS be performed on a fully charged battery?
A1: Yes, EIS can be performed at different states of charge, but steady-state conditions provide the most accurate data.

Q2: How long does an EIS measurement typically take?
A2: Conventional EIS tests can take from minutes to hours depending on frequency range and resolution; faster methods are emerging.

Q3: Does EIS require special battery preparation?
A3: Batteries should be in a stable condition, ideally at rest, with controlled temperature for consistent results.

Q4: Is EIS suitable for all battery chemistries?
A4: Yes, EIS is widely applicable but equivalent circuit models must be tailored to specific chemistries for best results.

Q5: How does Redway Battery use EIS in product development?
A5: Redway employs EIS for quality control, aging studies, and optimizing battery pack design to ensure longevity and safe operation.

Industrial vs Medical Li batteries, What are the Differences?

Info

March 13, 2024 By Redway 0 Comments

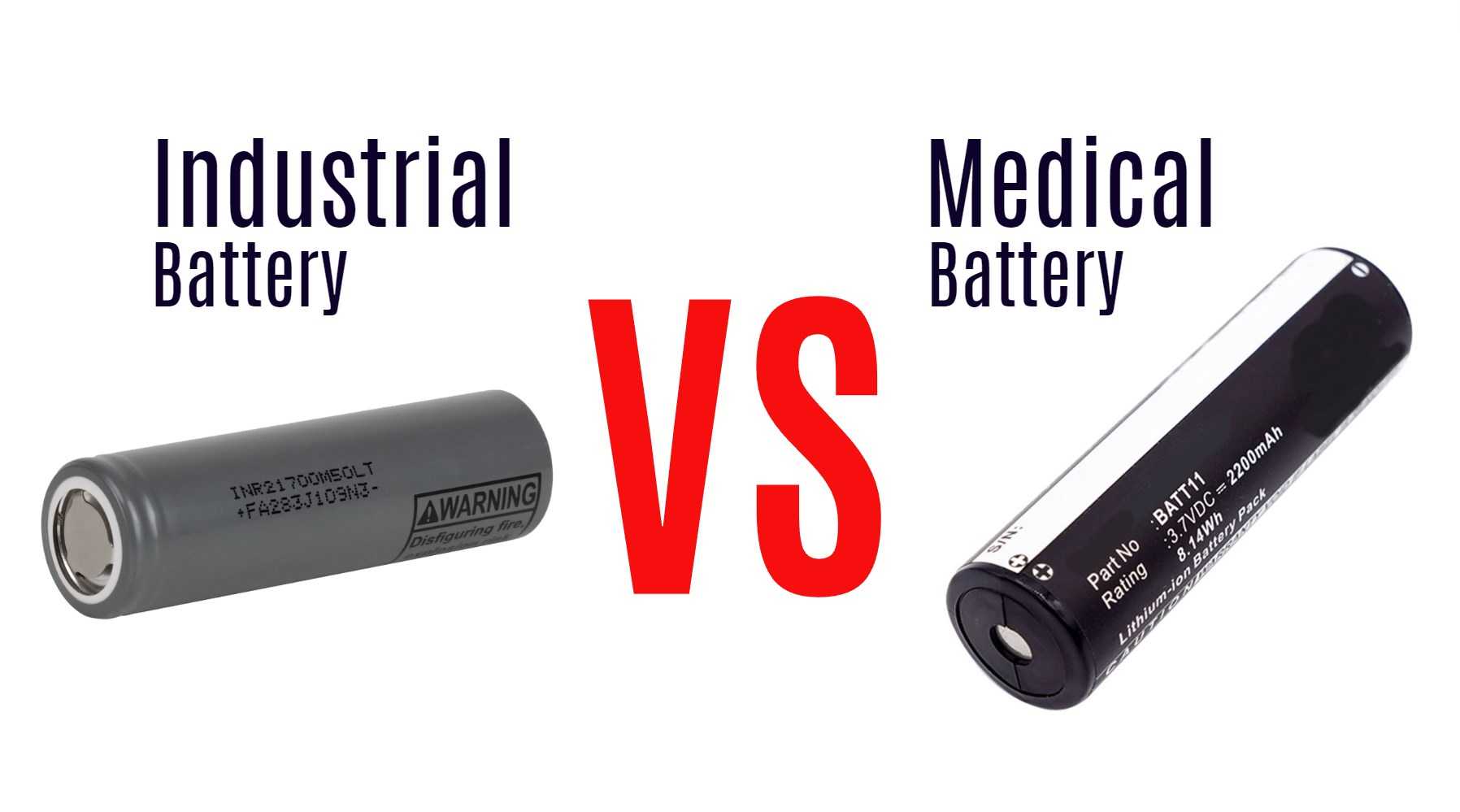

Industrial vs Medical Li batteries, What are the Differences?

Lithium batteries have become essential in various sectors, including industrial and medical applications. While both types utilize lithium technology, they differ significantly in design, performance, safety standards, and application suitability. Understanding these differences is crucial for selecting the right battery for specific needs.

1. Application and Use Cases

Industrial Lithium Batteries: These batteries are designed for heavy-duty applications that require high energy density and long cycle life. Common uses include electric vehicles, backup power systems, and industrial equipment. They can operate in extreme conditions (temperatures ranging from -40°C to 85°C) and are tailored for complex applications such as IoT devices and sensors.
Medical Lithium Batteries: Medical batteries are primarily used in devices that require reliable and safe power sources, such as portable medical equipment, implantable devices, and diagnostic tools. They must meet stringent regulatory standards to ensure patient safety and device reliability.

2. Performance Specifications

Cycle Life: Industrial lithium batteries typically offer a longer lifespan, with some models capable of up to 5000 recharge cycles. In contrast, medical lithium batteries generally have a shorter cycle life but are optimized for high reliability during critical operations.
Energy Density: Industrial batteries often have higher energy densities, making them suitable for applications requiring significant power output over extended periods. Medical batteries prioritize safety and consistent performance rather than maximum energy density.

3. Safety Standards and Regulations

Industrial Standards: Industrial lithium batteries must adhere to specific safety regulations but may not be subjected to the same rigorous testing as medical batteries. They are designed with advanced thermal management systems to prevent overheating and ensure longevity.
Medical Standards: Medical lithium batteries must comply with strict standards set by organizations such as the FDA and IEC. These regulations include traceability for failure analysis and certifications for manufacturing processes (e.g., UL certification). Medical devices often require hermetic sealing to protect against environmental factors.

4. Construction and Design

Durability: Industrial lithium batteries are built to withstand harsh environments, including extreme temperatures and physical stress. They often feature rugged construction with enhanced thermal management systems.
Precision Engineering: Medical lithium batteries are engineered with a focus on reliability and safety. They may incorporate features like low self-discharge rates and visual state-of-charge indicators to ensure that medical personnel can monitor battery life effectively.

5. Cost Considerations

Initial Investment: Industrial lithium batteries usually have a higher upfront cost due to their robust design and longer lifespan. However, they can result in lower total ownership costs over time due to reduced replacement frequency.
Affordability in Medical Applications: Medical lithium batteries may be less expensive initially but must be replaced more frequently depending on usage patterns. The focus is on ensuring that the devices they power remain operational without interruption.

Comparative Summary Table

Feature	Industrial Lithium Batteries	Medical Lithium Batteries
Application	Heavy-duty equipment, EVs	Portable medical devices
Cycle Life	Up to 5000 cycles	Shorter cycle life
Energy Density	Higher energy density	Focus on reliability
Safety Standards	General industrial standards	Strict FDA/IEC compliance
Durability	Rugged construction	Precision engineering
Cost	Higher initial cost but lower long-term	Lower initial cost but frequent replacement

Latest News

Recent advancements in battery technology continue to enhance the performance of both industrial and medical lithium batteries.
New regulations are being introduced in the medical field to ensure stricter safety standards for battery-powered devices.
Research is ongoing into alternative chemistries that could improve the safety and efficiency of lithium batteries across all applications.

Redway Expert Comment

“The distinctions between industrial and medical lithium batteries highlight the importance of selecting the right battery for specific applications. At Redway Battery, we emphasize quality and compliance with safety standards across all our products. As technology evolves, we remain committed to providing reliable energy solutions tailored to meet the unique demands of both industries.”

Day: March 13, 2024

What Is C-rate?

How to Read Battery Discharge Curves

Key Components of Discharge Curves

Interpreting Discharge Curves

Example Analysis

Latest Trends in Battery Technology

Redway Expert Comment

Conclusion

Key Alternatives to Lithium-Ion Batteries

FAQs About Lithium-Ion Battery Alternatives

Latest Developments in Battery Technology

Redway Expert Comment

1. What is a Battery Energy Storage System (BESS)?

2. How do battery storage systems work?

3. What types of batteries are commonly used in BESS?

4. What are the advantages of battery storage systems?

5. What is the lifespan of battery energy storage systems?

6. How does BESS support the grid?

7. Can battery storage work with all fuel sources?

8. How does battery storage reduce energy costs?

9. What safety measures are in place for BESS?

10. Where are these batteries typically located?

1. What is the primary difference between batteries and supercapacitors?

2. How do energy densities compare?

3. What about power density?

4. What are the self-discharge rates for each technology?

5. How do charge and discharge cycles differ?

6. Can supercapacitors replace batteries?

7. What are the environmental impacts of each technology?

8. What are the best applications for each?

9. Are there any recent advancements in these technologies?

10. How should I choose between a battery and a supercapacitor?

Conclusion

1. What is the primary difference between batteries and supercapacitors?

2. How do energy densities compare?

3. What about power density?

4. What are the self-discharge rates for each technology?

5. How do charge and discharge cycles differ?

6. Can supercapacitors replace batteries?

7. What are the environmental impacts of each technology?

8. What are the best applications for each?

9. Are there any recent advancements in these technologies?

10. How should I choose between a battery and a supercapacitor?

Conclusion

What Is a Dry Cell Battery and How Does It Work?

How Does a Dry Cell Battery Differ from a Wet Cell Battery?

Which Types of Dry Cell Batteries Are Most Common?

Why Are Dry Cell Batteries Preferred for Portable Electronics?

How Long Do Dry Cell Batteries Typically Last?

When Should Dry Cell Batteries Be Replaced?

Where Are Dry Cell Batteries Commonly Used?

Can Dry Cell Batteries Be Recycled?

How Do Redway Battery Technologies Enhance Dry Cell Battery Performance?

Redway Expert Views

Conclusion

FAQs

What Is a Battery Isolator?

How Does a Battery Isolator Work?

Advantages of Using a Battery Isolator

Common Uses of Battery Isolators

Battery Isolator FAQs

Latest News in Battery Technology

Redway Expert Comment

What is Electrochemical Impedance Spectroscopy (EIS) and how does it work?

How is EIS data represented and interpreted in battery testing?

Which battery parameters can EIS measure effectively?

Why is EIS considered a non-destructive testing method for batteries?

When is EIS testing most beneficial during a battery’s lifecycle?

How does temperature affect Electrochemical Impedance Spectroscopy measurements?

Can EIS be used for real-time battery management systems?

What equipment and software are required for EIS analysis?

Does EIS help in identifying specific battery failure mechanisms?

Are there limitations or challenges in applying EIS to commercial battery systems?

Redway Expert Views

Conclusion

Frequently Asked Questions

1. Application and Use Cases

2. Performance Specifications

3. Safety Standards and Regulations
