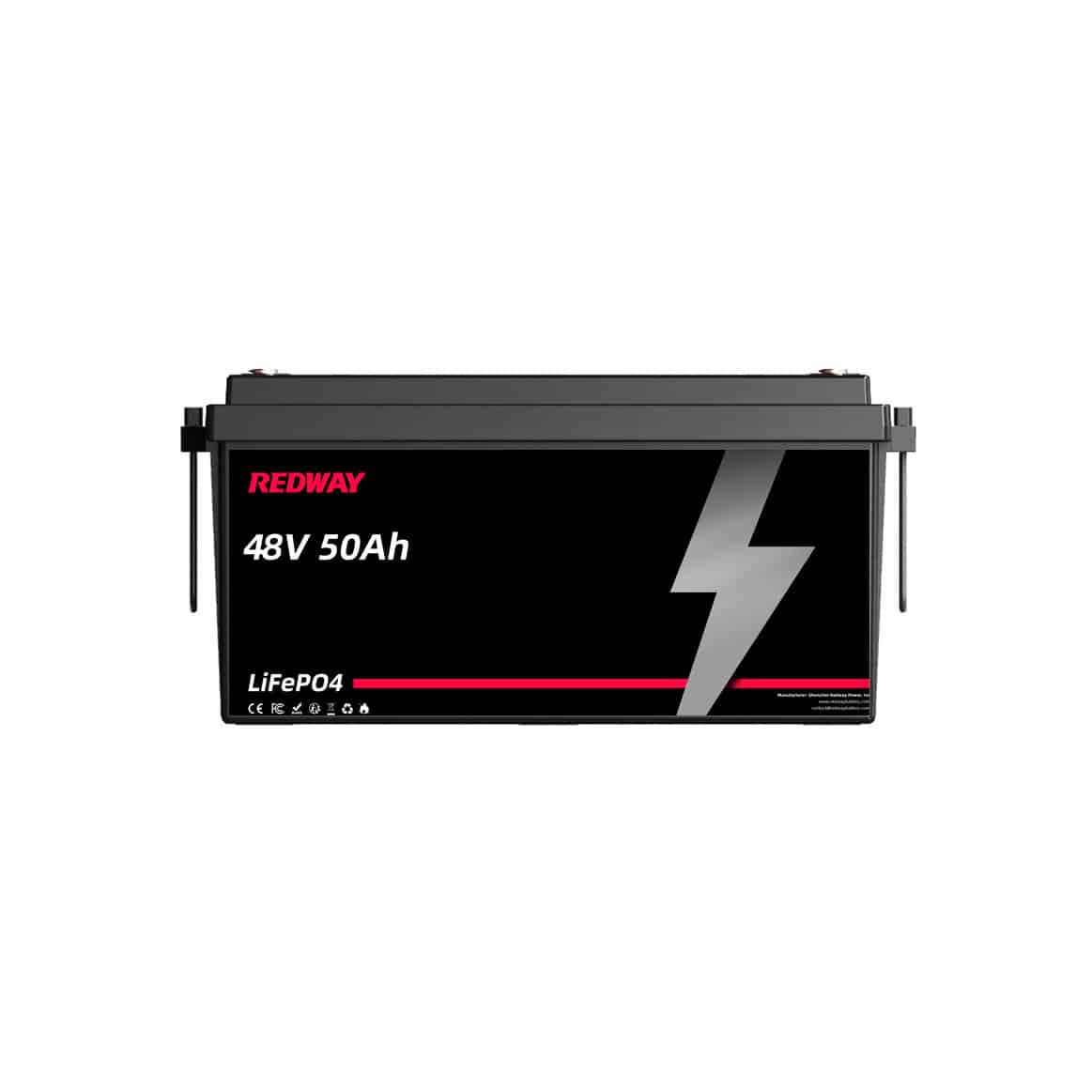

Redway 48V 50Ah Lithium-Ion Phosphate batteries can be used for a wide variety of applications. These batteries can be combined in a modular design of up to 10 batteries to provide a huge 24000Wh of power.
In comparison to sealed lead acid batteries, Redway LiFePO4 48V Lithium Iron Phosphate Batteries provide twice the power, half the weight, and 8 times more life, require no maintenance, are very safe, and have very low toxicity. LiFePO4 batteries offer a lighter weight, longer life and higher capacity battery solution for demanding applications.
With its M10 terminal type and built-in overcharge protection, the battery is ideal for marine, electric vehicle, and solar applications. With its high reliability and up to ten times longer life span than lead-acid batteries, it is much lighter and more convenient than lead-acid batteries.
Get a Quick Quote with Few Clicks!
Technical Data
Welcome to Redway Battery! OEM Factory Wholesale Price, Fast Delivery. (Click to Get a Quick Quote!)
Parameter
Value
Cell Type
LiFePO4
Nominal Capacity
50 Ah
Nominal Voltage
48 V
Nominal Energy
2400 Wh
Series / Parallel Number
16S1P
Maximum Charge Current
50A
Maximum Discharge Current
50 A
Dimension (LWH)
501*185*242 mm (19.72*7.28*9.53 inch)
Charge Voltage/ Charge Cut-off Voltage
58.4 +- 0.2 V
Discharge Cut-off Voltage
40 V
Terminal
M8
Operating Temperature and Humidity Range
Charge: 0°C -60°C Discharge: -20°C -65°C
Max. Parallel Connection
With Bluetooth/Communication/Heating/Active Balance/ Switch/LED Screen
Protection Level
IP66
