12V 30Ah LiFePO4 Battery Wholesale B2B Factory

12V 30Ah LiFePO4 Battery Wholesale B2B Factory

Production Info

✅ High Quality

✅ Advance Feature

✅ Super Demand

✅ Reasonable

✅ Long Lasting

✅ Good

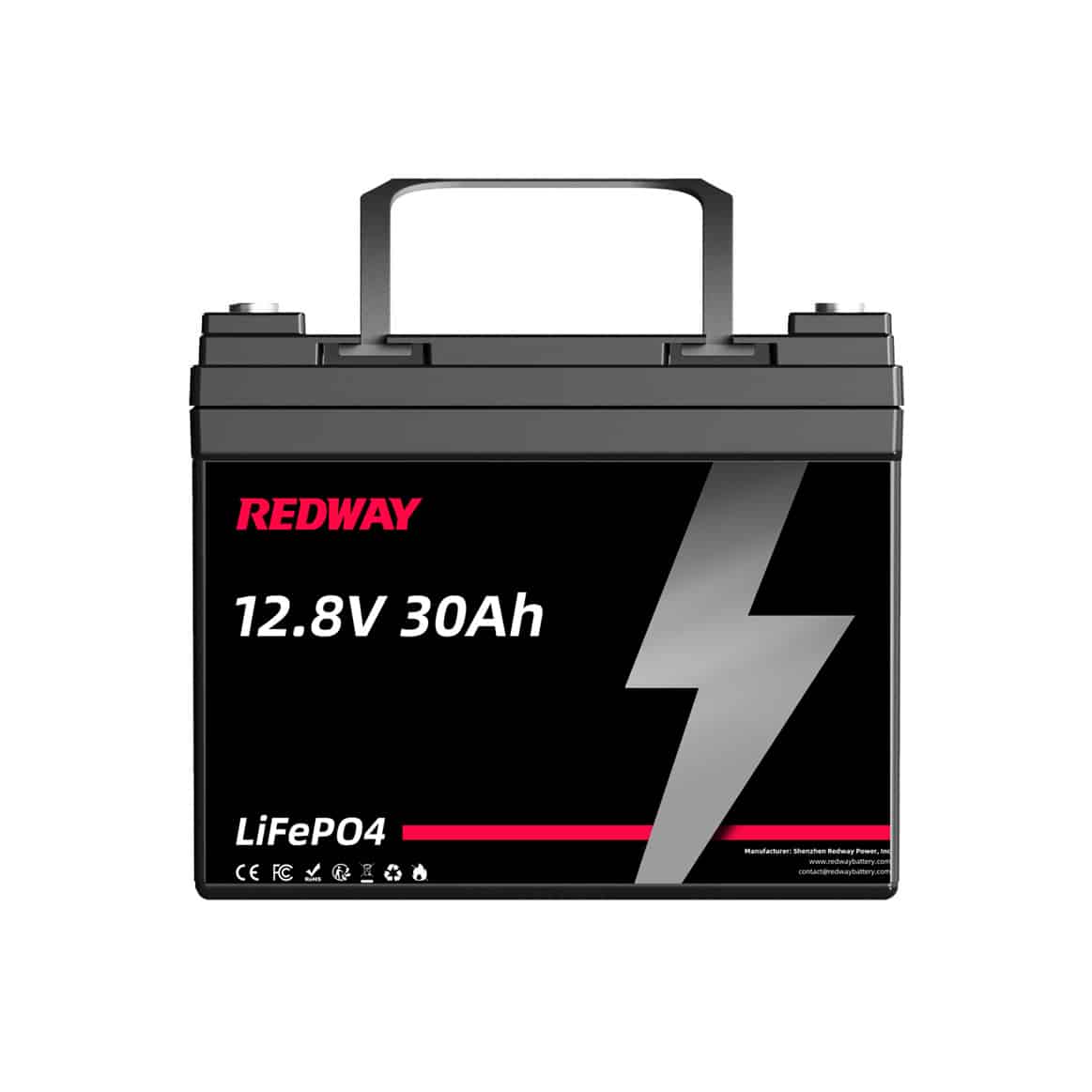

Providing excellent performance, safety, and versatility, the Redway 12V30Ah LiFePO4 battery is a strong and reliable energy storage option. Due to its high energy density, extended cycle life, and improved safety features, it is ideal for a variety of applications, including solar power systems, backup power solutions, and electric cars.

High Energy Density

The 12V30Ah battery is made to have a high energy density, which allows it to store a lot of energy in a relatively small and light body. In electric vehicles, where weight and range are crucial, this makes it perfect for applications where space is a premium.

Extended Cycle Life

The Redway 12V30Ah battery is made to have a long cycle life, so it can be charged and discharged several times without significantly losing capacity. As a result, it is an excellent choice for applications requiring regular cycling, such as electric cars or renewable energy systems.

Quick Charging

Due to its high charge acceptance rate and rapid charging capabilities, the 12V30Ah battery can be charged much faster than other battery types, reducing charging time and enhancing battery availability.

Contemporary Safety Features

With advanced safety features such as overcharge prevention, overdischarge protection and short circuit protection, the Redway 12V30Ah battery is guaranteed to function securely and dependably at all times.

Application Varieties

A 12V30Ah battery from Redway is adaptable and can be used in a variety of applications including solar power systems and backup power options, as well as electric vehicles like automobiles, scooters, and motorcycles. It may also be used in maritime applications where reliable, long-lasting energy storage is needed, such as on boats and yachts.

High Rate of Discharge

A 12V30Ah battery’s high discharge rate makes it perfect for high-power applications. It can deliver high current levels continuously without sacrificing efficiency or security.

Comparative Analysis of Other Batteries

Compared with lead-acid and lithium-ion batteries, the 12V30Ah LiFePO4 battery from Redway offers a number of advantages. In comparison to lead-acid batteries, it offers a higher energy density, a longer cycle life, and better safety features. It also provides a more stable and secure performance than lithium-ion batteries.

Product Specifications

Cell Type: LiFePO4
Nominal Capacity: 30 Ah
Nominal Voltage: 12.8 V
Norminal Energy: 384 Wh
Series / Parallel Number: 4S5P
Maximum Charge Current: 30 A
Maximum Discharge Current: 30 A
Dimension (L*W*H): 195 x 130 x 161 mm
Charge Voltage/ Charge Cut-off Voltage: 14.6 +- 0.2 V
Discharge Cut-off Voltage 10 V
Terminal: M6
Operating Temperature and Humidity Range: Charge: 0°C -60°C Discharge: -20°C -65°C
Max. Parallel Connection: 4
Protection Level: IP66
Optional Functions: With Switch / LED Screen


In a nutshell, Redway’s 12V30Ah LiFePO4 battery is the perfect energy storage solution. It offers outstanding performance, safety, and flexibility with its high energy density, long life span, quick charging time, and advanced safety features. This makes it ideal for a range of uses, from solar power systems to electric vehicles to backup solutions. Furthermore, its impressive discharge rate and appropriateness for various high-power applications renders it an excellent choice in numerous sectors.

Technical Data

Parameter Value
Cell Type LiFePO4
Nominal Capacity 30 Ah
Nominal Voltage 12.8 V
Nominal Energy 384 Wh
Series / Parallel Number 4S5P
Maximum Charge Current 30 A
Maximum Discharge Current 30 A
Dimension (LWH) 195 x 130 x 161 mm
Charge Voltage/ Charge Cut-off Voltage 14.6 +- 0.2 V
Discharge Cut-off Voltage 10 V
Terminal M6
Operating Temperature and Humidity Range Charge: 0°C -60°C Discharge: -20°C -65°C
Max. Parallel Connection 4
Protection Level IP66
Optional Functions With Switch / LED Screen


12V 30Ah LiFePO4 Battery Wholesale B2B Factory  Download Datasheet
