12V 24Ah OEM/ODM Lithium Battery

12V 24Ah OEM/ODM Lithium Battery

Production Info

✅ High Quality

✅ Advance Feature

✅ Super Demand

✅ Reasonable

✅ Long Lasting

✅ Good

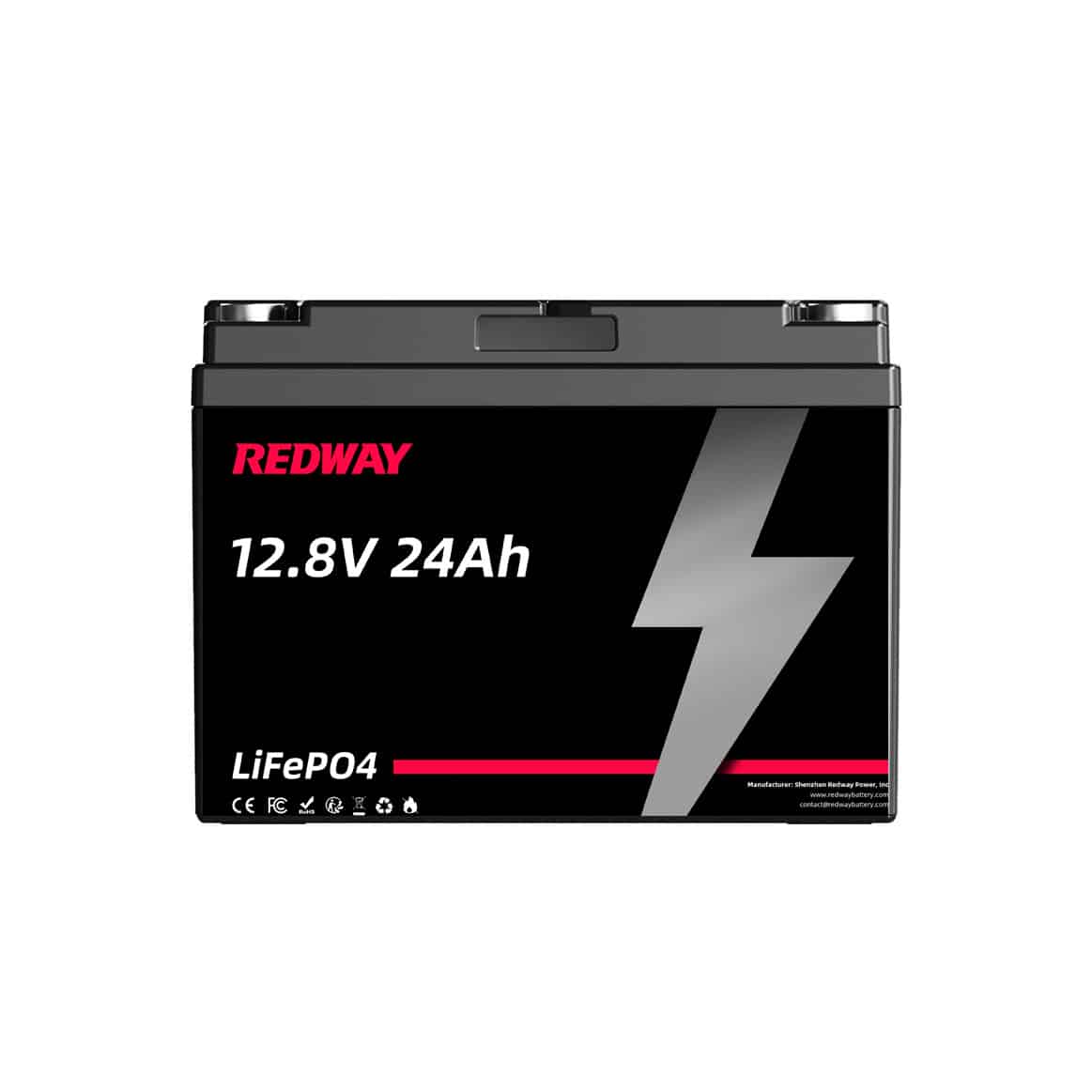

Redway’s 12V24Ah LiFePO4 battery is a potent energy storage option with top-notch performance, security, and adaptability. It is the best option for a variety of applications, including backup power, solar power systems, and electric cars, because to its high energy density and extended cycle life.

High Energy Density

A key benefit of the 12V24Ah battery is its high energy density. Since it can store a great deal of energy in a relatively small and light form, this battery is an ideal choice for situations where space is limited. Due to its ability to produce large current levels, it is ideal for high-power applications.

Longer Cycle Life

Redway 12V24Ah batteries have a long cycle life, which means they can be charged and discharged several times without significantly reducing their capacity. Because of this, it is a great option for applications requiring regular cycling, including electric cars and renewable energy systems.

Safety Features

The 12V24Ah battery from Redway is no exception to the great safety characteristics that LiFePO4 batteries are renowned for. It is designed to perform safely and dependably by incorporating advanced safety features such as overcharging prevention, overdischarging protection, and short circuit protection.

Versatile Applications

Redway’s 12V24Ah battery is adaptable and may be utilized in a variety of applications. It is ideal for use in solar power systems and backup power options, as well as electric vehicles such as scooters, bikes, and automobiles. Maritime applications require reliable and long-lasting energy storage, such as in boats and yachts.

Benchmarking Other Batteries

The 12V24Ah LiFePO4 battery from Redway is a superior choice for solar power systems, backup power solutions, electric cars, and other applications. It offers higher energy density and extended cycle life than lead-acid batteries, as well as more consistent and secure performance than lithium-ion batteries. What’s more, it supplies enhanced safety features that increase its adaptability to various environments. In a nutshell, its combination of high energy density, long cycle life, and improved security features makes the Redway 12V24Ah LiFePO4 battery an ideal option for any kind of application.

Product Specifications

Cell Type: LiFePO4
Nominal Capacity: 24Ah
Nominal Voltage: 12.8 V
Norminal Energy: 307.2 Wh
Series / Parallel Number: 4S4P
Maximum Charge Current: 24 A
Maximum Discharge Current: 30 A
Dimension (L*W*H): 177 x 167 x 124 mm
Charge Voltage/ Charge Cut-off Voltage: 14.6 +- 0.2 V
Discharge Cut-off Voltage 10 V
Terminal: M5
Operating Temperature and Humidity Range: Charge: 0°C -60°C Discharge: -20°C -65°C
Max. Parallel Connection: 4
Protection Level: IP66
Optional Functions: With Switch / LED Screen

Technical Data

Parameter Value
Cell Type LiFePO4
Nominal Capacity 24 Ah
Nominal Voltage 12.8 V
Nominal Energy 307.2 Wh
Series / Parallel Number 4S4P
Maximum Charge Current 24 A
Maximum Discharge Current 30 A
Dimension (LWH) 177 x 167 x 124 mm
Charge Voltage/ Charge Cut-off Voltage 14.6 +- 0.2 V
Discharge Cut-off Voltage 10 V
Terminal M5
Operating Temperature and Humidity Range Charge: 0°C -60°C Discharge: -20°C -65°C
Max. Parallel Connection 4
Protection Level IP66
Optional Functions With Switch / LED Screen


12V 24Ah OEM/ODM Lithium Battery  Download Datasheet
