Welcome to the electrifying world of LiFePO4 batteries! If you’re charged up about understanding voltage and how it impacts these powerful energy storage devices, you’ve come to the right place. In this comprehensive guide, we’ll delve into the nuances of LiFePO4 voltage, exploring its significance, factors influencing it, and much more. So plug in and let’s amp up our knowledge together!

What is LiFePO4 Voltage and Why is it Important?

LiFePO4 voltage” refers to the power levels of LiFePO4 batteries. These batteries have a nominal voltage of about 3.2 volts per cell and fully charge at around 3.6 volts. Unlike other batteries, LiFePO4 voltage remains steady during use. They’re known for safety and longevity, making them popular for solar systems. Monitoring voltage ensures their best performance.

LiFePO4 voltage is crucial for battery performance, safety, device compatibility, and energy storage systems. Proper voltage management ensures efficient charging and discharging, extends battery lifespan, and prevents damage to devices. Monitoring LiFePO4 voltage accurately is essential for safe, reliable operation and maximizing energy utilization in various applications.

Here’s why it’s so important:

  1. Battery Performance:
    • Voltage is like the battery’s energy level indicator. It determines how efficiently the battery can power devices and for how long.
    • By keeping an eye on voltage, we can ensure that the battery works optimally, giving our devices the power they need without draining too quickly.
  2. Safety:
    • Imagine voltage as the guardrails on a highway. It prevents the battery from overcharging or discharging too much, which can damage it or even cause accidents.
    • Monitoring voltage helps us keep our devices and ourselves safe from potential hazards.
  3. Compatibility:
    • Different devices require different levels of voltage to operate. It’s like speaking the right language to communicate effectively.
    • By understanding LiFePO4 voltage, we can ensure that our batteries are compatible with our devices, preventing any damage that may occur from using the wrong voltage.

Factors Affecting LiFePO4 Voltage

Discover what influences LiFePO4 battery voltage:

  1. State of Charge (SOC):
    • Voltage increases when charging and decreases during discharging.
  2. Temperature:
    • Higher temperatures can boost voltage but excessive heat harms batteries.
  3. Load Current:
    • Heavy loads may cause voltage drops due to internal resistance.
  4. Cell Balancing:
    • Ensures consistent voltage across battery cells for optimal performance.
  5. Age and Cycle Life:
    • Voltage may decrease over time as batteries age.
  6. Cutoff Voltage:
    • Devices may shut down to prevent over-discharge below a specific voltage.

For more details, check out the Jackery guide on LiFePO4 voltage.

Understanding the Relationship Between Voltage and Capacity

Understanding the relationship between voltage and capacity in batteries is crucial. Voltage, measured in volts (V), signifies the energy available, akin to electrical pressure. Meanwhile, capacity, measured in ampere-hours (Ah) or milliampere-hours (mAh), indicates the charge storage capacity. Higher voltage doesn’t always correlate with higher capacity. It’s vital to consider both factors when selecting batteries for specific energy requirements.

Let’s simplify:

  1. Voltage:
    • Voltage (V) is like electrical pressure in batteries, indicating available energy.
    • It’s measured in volts (V) or millivolts (mV).
    • Higher voltage means more energy for use.
  2. Capacity:
    • Capacity is a battery’s charge storage, measured in ampere-hours (Ah) or milliampere-hours (mAh).
    • More capacity means longer usage time.
  3. Relationship:
    • Voltage and capacity aren’t directly related.
    • Different batteries have varied voltage and capacity.
    • Consider both for energy needs.

Understanding voltage and capacity helps choose the right battery for your needs.

LiFePO4 Battery Charging & Discharging

LiFePO4 batteries charge in stages: bulk, float, and equalization. During bulk charging, they reach full capacity. Float mode maintains this charge. Discharge is consistent until nearly empty. Voltage should be around 3.6V when full and 2.5V empty. For optimal performance, monitor voltage closely.

Let’s break it down:

  1. Charging Stages:
    • Bulk Charging: Like filling a cup with water, LiFePO4 batteries charge at a constant rate until they’re full.
    • Float Mode: Once fully charged, the battery stays at a lower voltage to maintain its charge without overloading.
    • Equalization: Balancing the battery cells ensures they all have the same charge, like making sure all tires on a car have the same air pressure.
  2. Discharging:
    • LiFePO4 batteries have a flat voltage curve, meaning their voltage stays stable for most of the usage time.
    • A fully charged battery reads around 3.6 volts, while an empty one drops to about 2.5 volts.
    • Keeping an eye on the battery’s voltage helps maintain its performance and longevity.

Understanding how LiFePO4 batteries charge and discharge is essential for maximizing their lifespan and efficiency. By following these guidelines, you can ensure your batteries perform optimally for longer periods, providing reliable power when needed.

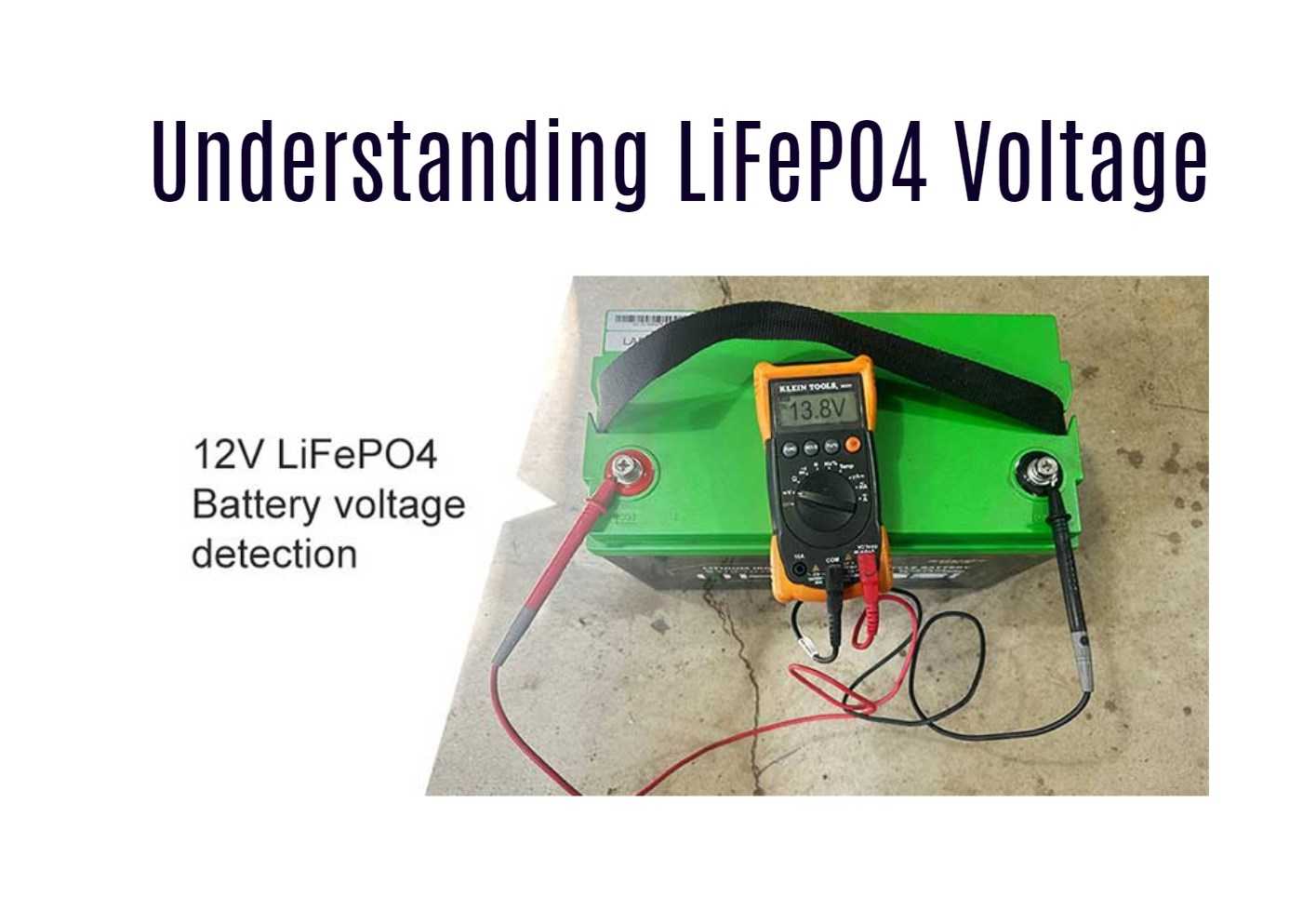

How to Measure LiFePO4 Voltage

To measure LiFePO4 voltage:

  1. Connect positive and negative leads to battery terminals.
  2. Ensure good contact and read displayed voltage.
  3. Fully charged LiFePO4 cell should have around 3.6 volts or higher. Remember, LiFePO4 cells typically have 3.2V nominal voltage and 3.65V when fully charged. Monitor voltage accurately for optimal performance. Find more details in the Ultimate Guide to LiFePO4 Voltage Chart by Redway Battery.

Here’s a simple guide to help you measure LiFePO4 voltage accurately:

  1. Connect Leads: First, connect the positive lead to the positive terminal and the negative lead to the negative terminal of the LiFePO4 battery. Ensure the connections are secure for accurate readings.
  2. Check Displayed Voltage: Once the leads are properly connected, check the displayed voltage on the meter. A fully charged LiFePO4 cell typically shows around 3.6 volts or higher, depending on the manufacturer’s specifications.
  3. Refer to Voltage Chart: Additionally, consult a LiFePO4 voltage chart for more detailed information. These charts outline the nominal voltage of individual cells, fully charged voltage, and voltage at full discharge, providing valuable insights into the battery’s state of charge.

Measuring LiFePO4 voltage accurately is crucial for optimizing battery performance and longevity.

Comparison of LiFePO4 Voltage with Other Battery Technologies

Comparing LiFePO4 batteries with others: LiFePO4 has lower voltage but higher energy density and longer life. Traditional lead-acid batteries offer higher voltage but less durability. Lithium-ion batteries have higher voltage but may lack stability. Choose based on your needs for reliable power storage.

Let’s simplify the differences between LiFePO4, lead-acid, and lithium-ion batteries.

  1. LiFePO4 vs. Lead-Acid Batteries:
    • LiFePO4 batteries have lower voltage but last longer and store more energy than lead-acid batteries.
    • Lead-acid batteries may have higher voltage, but they wear out faster and don’t hold as much power.
  2. LiFePO4 vs. Lithium-Ion Batteries:
    • LiFePO4 batteries have slightly lower voltage but are more stable and durable compared to lithium-ion batteries.
    • Lithium-ion batteries may have higher voltage, but they can be less reliable and wear out quicker.
  3. Choosing the Right Battery:
    • Consider your needs: LiFePO4 for longevity, lead-acid for short-term use, and lithium-ion for high power but shorter lifespan.
    • Pick the battery that fits your requirements best to get the most out of your investment.

LiFePO4 Battery Charging Parameters

LiFePO4 batteries have specific charging parameters:

  1. Bulk Charging: The battery charges at a constant current until reaching full voltage.
  2. Float Voltage: Once fully charged, a lower voltage is maintained to prevent overcharging.
  3. Equalization: Balancing cells ensures consistent performance.

Remember, monitoring voltage is crucial for optimal battery function. For detailed info, check Clever Solar Power’s LiFePO4 voltage chart.

LiFePO4 Bulk, Float, And Equalize Voltages

Let’s break down the voltage stages for LiFePO4 batteries into easy-to-understand points:

  1. Bulk Charging: When you charge a LiFePO4 battery, it goes through bulk charging first. This means it charges at a steady rate until it reaches its full capacity. You can choose the voltage range that suits your battery’s needs best.
  2. Float Voltage: After the battery is fully charged, it enters the float voltage stage. Here, it maintains its charge level with a lower voltage. Adjusting this voltage depends on how much power your battery needs to sustain itself and how fast it loses charge over time.
  3. Equalization: Equalization ensures that all parts of the battery get charged evenly. This stage isn’t as common with LiFePO4 batteries as with others, but it’s still important for maintaining your battery’s health. By balancing the charge across all cells, you keep your battery running smoothly.

Understanding these stages is crucial for managing your LiFePO4 battery effectively and ensuring it lasts a long time. Proper care and monitoring can help you get the most out of your battery’s performance and lifespan.
