The Comprehensive Guide to Redway Battery’s EOV Series 48V All-in-One Energy Storage Systems

The Comprehensive Guide to Redway Battery's EOV Series 48V All-in-One Energy Storage Systems

In today’s world, reliable and sustainable energy solutions are essential for both residential and commercial applications. Redway Battery’s EOV Series 48V All-in-One Energy Storage Systems represent a significant advancement in the field of renewable energy. This guide provides an in-depth analysis of these systems, highlighting their features, benefits, and applications.

Understanding the EOV Series 48V

Product Overview

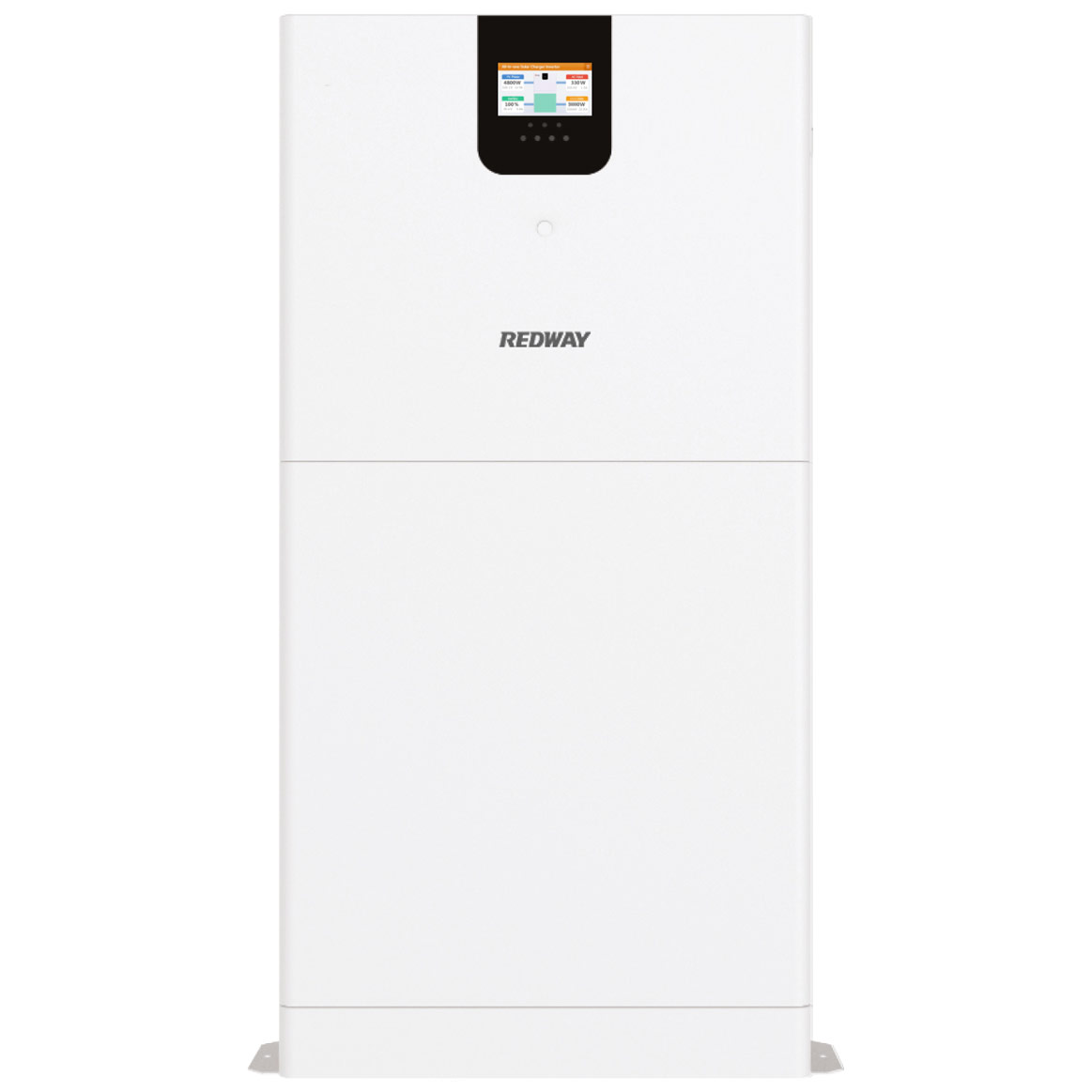

Redway Battery’s EOV Series 48V is a cutting-edge all-in-one energy storage solution designed to integrate seamlessly with hybrid, grid, and PV solar setups. This system offers a comprehensive energy storage solution that combines high efficiency with robust performance, ensuring a reliable power supply even during outages.

Understanding the EOV Series 48V

Key Specifications

Inverter Specifications

Item EOV48-5.0S-C1 EOH48-5.0U-C1
Rated AC Output Power 5,000W 5,000W
Rated AC Output Voltage 230Vac 120Vac
Rated AC Output Frequency 50/60Hz 50/60Hz
Max. PV Open Circuit Voltage 500Vdc 500Vdc
MPPT Voltage Range 120~450Vdc 120~450Vdc
Max. PV Input Power 5,000W 5,000W
Number of MPPT 1 1

Battery Specifications

Item EOV48-5.0A-E
Battery Energy 5.12kWh
Battery Type Li-ion
Rated Battery Voltage 51.2V
Battery Capacity 100Ah
Constant Charging Current 100A (1C)
Constant Discharging Current 100A (1C)
Depth of Discharge 80%
Parallel Capacity 1-4
Life-Span (80% DOD) 6000 cycles

General Specifications

Item Specification
Installation Method Horizontal
Noise <60dB
Nominal Operation Altitude <2000m
Communication RS485/CAN/WIFI
IP Grade IP20
Dimension (Inverter) 600184500mm
Weight (Inverter) 30kg (66lb)
Dimension (Battery) 600184610mm
Weight (Battery) 60kg (132lb)

Features and Benefits

Advanced Inverter Technology

The EOV Series 48V features state-of-the-art inverter technology, capable of delivering a stable and efficient power supply. With a maximum PV input power of 5,000W and a versatile MPPT voltage range, it ensures optimal energy conversion and storage.

High-Capacity Lithium-Ion Batteries

The integrated Li-ion batteries boast a capacity of 5.12kWh, providing substantial energy storage. With a life span of up to 6000 cycles at 80% depth of discharge, these batteries offer long-term reliability and performance.

Seamless Integration and Installation

Designed for horizontal installation, the EOV Series 48V systems are easy to set up and maintain. The communication interfaces (RS485, CAN, WIFI) allow for seamless monitoring and control, ensuring users can keep track of their energy usage and system performance in real time.

Safety and Reliability

Safety features such as overcharge and over-discharge protection are built into the system, ensuring safe operation. The low noise level (<60dB) and robust construction (IP20 grade) make it suitable for various environments.

Applications of EOV Series 48V Systems

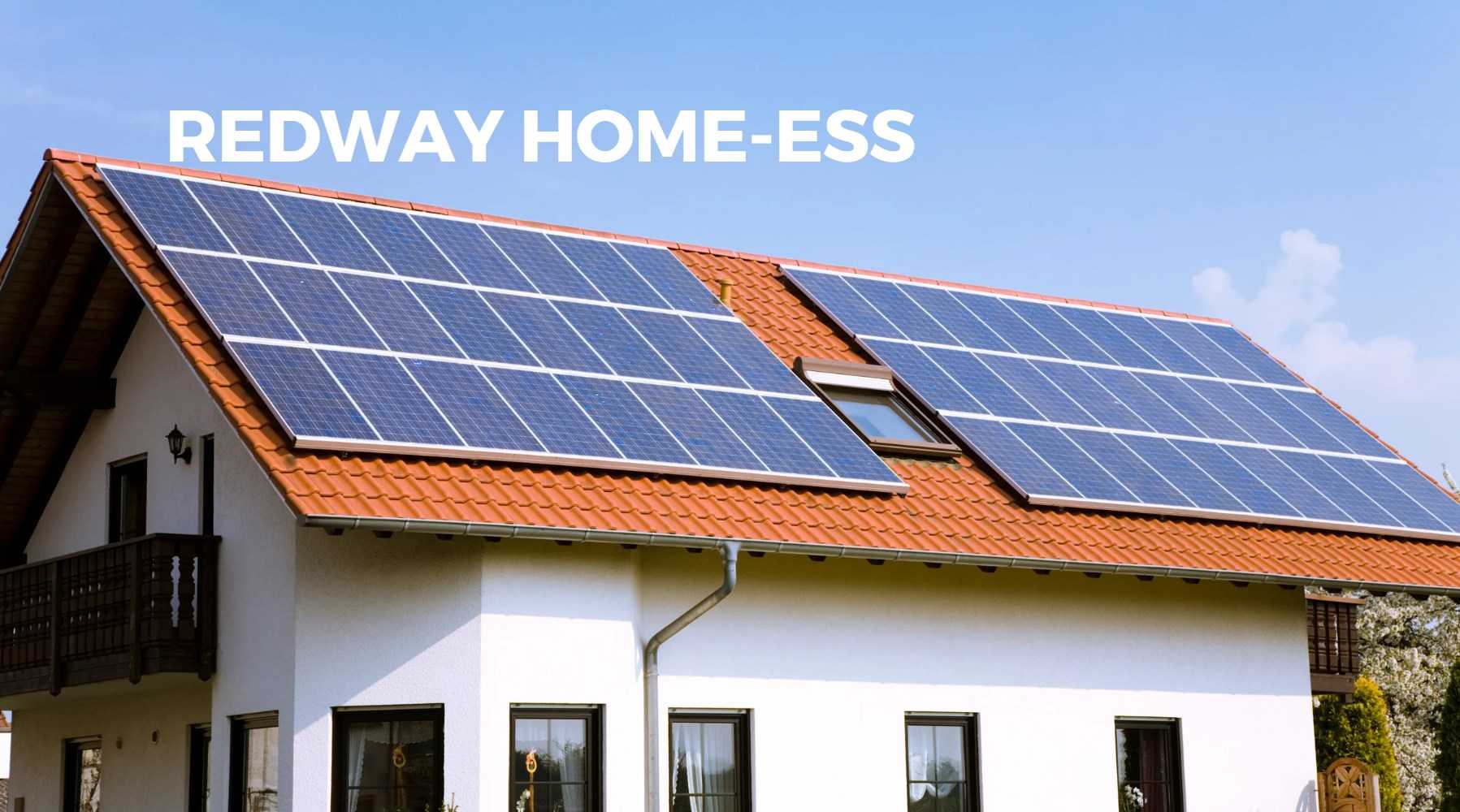

Residential Use

The EOV Series 48V is ideal for residential applications, providing homeowners with a reliable backup power source. It ensures uninterrupted power supply during outages, allowing for continuous operation of essential appliances.

Commercial Use

For businesses, the EOV Series 48V offers a dependable energy solution that reduces reliance on the grid. It supports business continuity during power failures and helps manage energy costs by storing excess solar energy for later use.

Grid Support and Renewable Integration

The system is designed to work seamlessly with grid and hybrid solar setups, making it an excellent choice for supporting grid infrastructure and integrating renewable energy sources. It helps balance energy supply and demand, contributing to a more resilient power grid.

Real-World Applications

Case Study: Residential Installation in California

A homeowner in California installed the EOV Series 48V system to enhance energy independence and reduce electricity bills. The system provided reliable backup power during outages, significantly lowering energy costs and contributing to a more sustainable lifestyle.

Case Study: Commercial Application in South Africa

In South Africa, a business installed multiple EOV Series 48V systems to mitigate the impact of frequent power cuts. The systems ensured continuous operation of critical business functions, reducing downtime and operational losses.

Advantages of Choosing Redway Battery

Customization and Flexibility

Redway Battery offers a range of customizable options to meet specific energy needs. Whether for a small home or a large commercial setup, the EOV Series 48V can be tailored to provide optimal energy storage and usage.

Warranty and Support

Redway Battery provides a 10-year warranty on the EOV Series 48V systems, ensuring peace of mind for users. Comprehensive customer support and service options are available to assist with installation, maintenance, and troubleshooting.


Redway Battery’s EOV Series 48V All-in-One Energy Storage Systems represent the pinnacle of modern energy storage technology. With their advanced features, robust performance, and wide range of applications, these systems are an excellent choice for anyone looking to enhance energy reliability and efficiency. By investing in an EOV Series 48V system, users can reduce their dependence on the grid, lower energy costs, and contribute to a more sustainable future.

home ess battery redway

The EOV 48V all-in-one solar storage system also features a number of safety features, including overcharge and over-discharge protection, which ensure that the system is safe and reliable to use. In addition, the system’s user-friendly interface allows users to monitor their energy usage and adjust their settings to maximize their energy savings.

Overall, All-in-one energy solar storage systems like the EOV Series 48V are becoming an increasingly popular choice for European homeowners looking to cope with power cuts and reduce their dependence on the grid. With its reliable backup power source and user-friendly interface, the EOV 48V is a great choice for anyone looking to harness the power of the sun and take control of their energy usage.
